Left Fuel Rail (G1085753): Installation

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

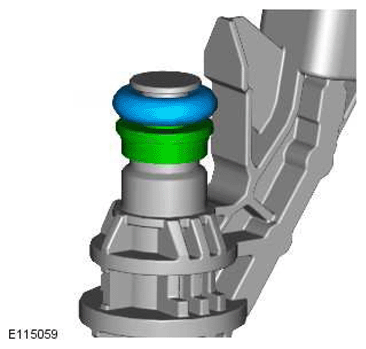

  1. G11418967

    Install new O-ring seals.

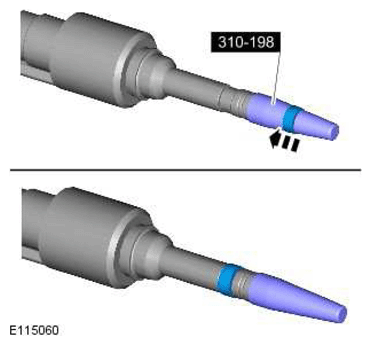

  2. G11418968

    Install new Teflon seals.

    Special Tool(s):  310-198

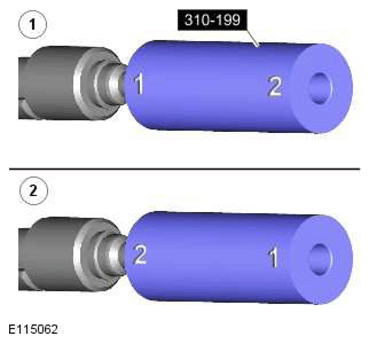

  3. G11418969

    Special Tool(s):  310-199

  4. CAUTION: If the original fuel injector is being installed, the original fuel injector clamp must installed with the fuel injector it was removed with.

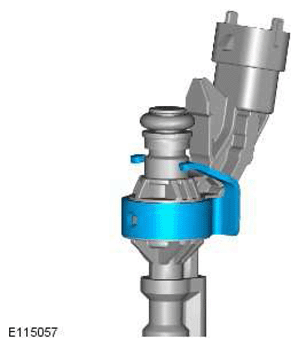

    G11418970
  5. CAUTION: If a new cylinder head has been installed then the special tool 310-200-02 without the thread must be used to install the fuel rail.

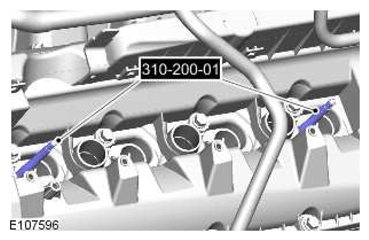

    G11418971

    Special Tool(s):  310-200-01, 310-200-02

  6. CAUTION:
    • Make sure that the area around the open fuel injector ports are clean and free of foreign material and lubricant prior to installing the fuel injector.
    • When Installing the fuel injector(s), make sure that the Teflon seal is clean and free of foreign material and lubricant.

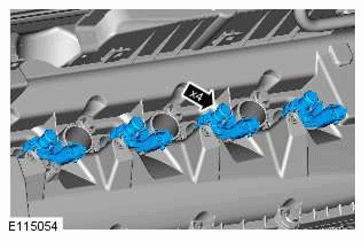

    G11418972
  7. CAUTION:
    • If new fuel injectors are installed, a new injector clamp must be installed
    • Make sure that the fuel injector is aligned and installed into the fuel rail correctly, as noted in the removal step.
    • Tighten the fuel rail retaining bolts a turn at a time until the correct torque is achieved.
    NOTE: Lubricate the fuel injector O-ring seals with clean engine oil.

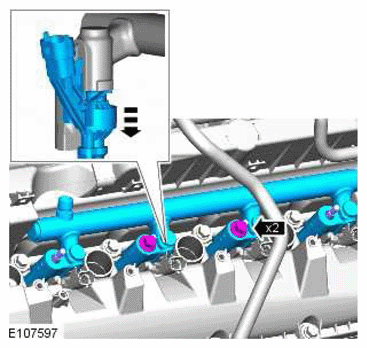

    G11418973

    Torque Specification: 20 Nm

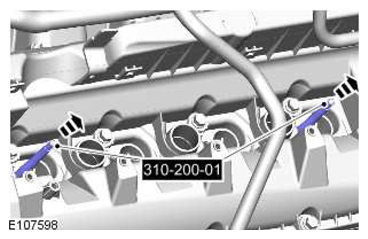

  8. G11418974

    Special Tool(s):  310-200-01, 310-200-02

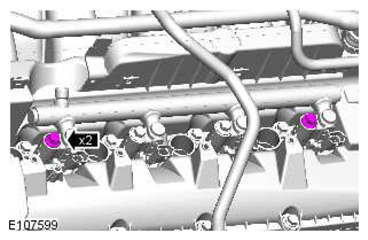

  9. G11418975

    Torque Specification: 20 Nm

  10. NOTE: Tighten in the sequence indicated.

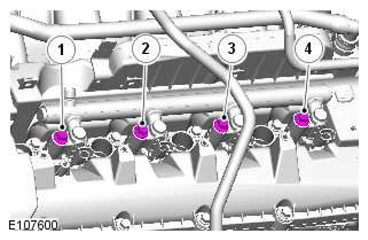

    Fig 1: Fuel Rail Bolts Tightening Sequence
    G11418976Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque Specification:

    Bolt 2 30 Nm

    Bolt 3 30 Nm

    Bolt 1 30 Nm

    Bolt 4 30 Nm

  11. NOTE: RH shown LH similar.

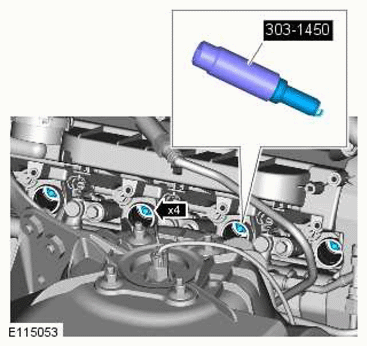

    G11418977

    Special Tool(s):  303-1450

    Torque Specification: 20 Nm

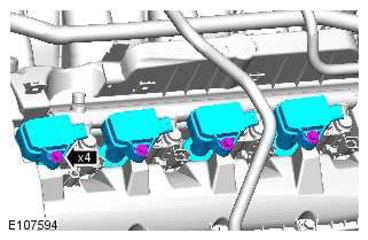

  12. G11418978

    Torque Specification: 7 Nm

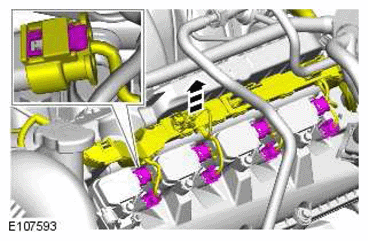

  13. G11418979
  14. NOTE:
    • Lubricate the union threads with clean engine oil.
    • Do not tighten at this stage.
    • Remove and discard the blanking caps.

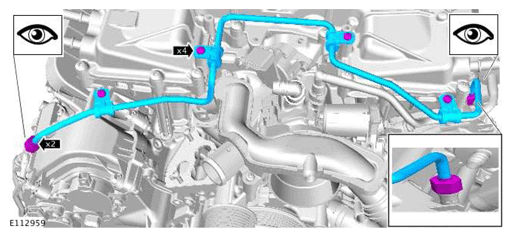

    G11418980
  15. G11418981

    Torque Specification:

    union 21 Nm

    bolts 8 Nm

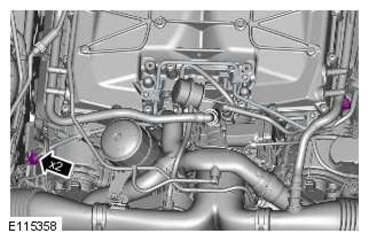

  16. G11418982

    Torque Specification: 21 Nm

  17. Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V6 S/C 3.0L Petrol, Removal and Installation).

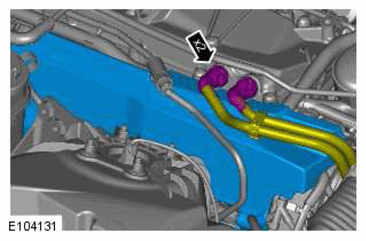

  18. G11418983

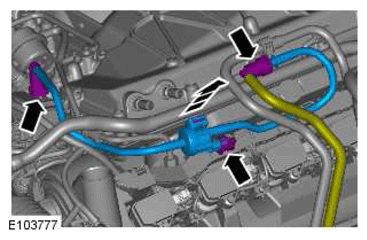

  19. G11418984

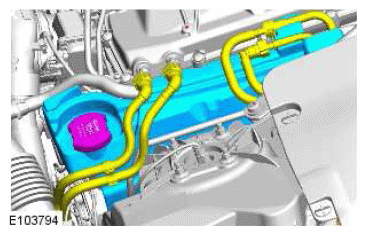

  20. G11418985

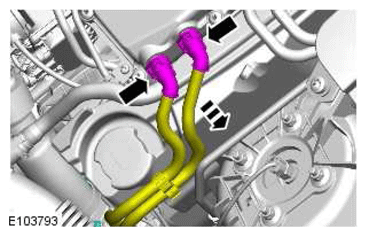

  21. G11418986
  22. Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
  23. Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
