High Pressure Fuel Pump 1 (G1185932): Installation

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.

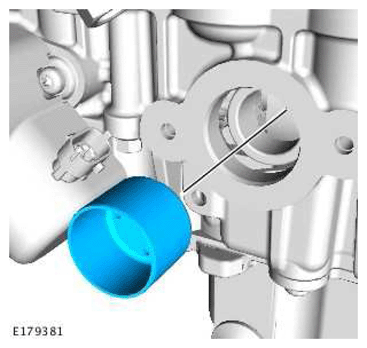

NOTE: Lubricate the fuel rail high-pressure fuel pump bucket with clean engine oil.
CAUTION: Tighten the Torx screws a turn at a time until the correct torque is achieved.

NOTE: Lubricate the fuel rail high-pressure fuel pump O-ring seal with clean engine oil.

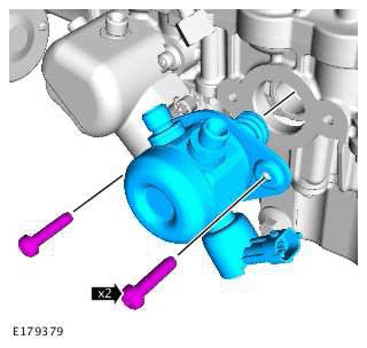

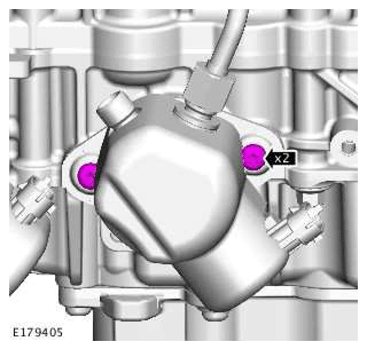

Install the high-pressure fuel pump.

Torque Specification: 12 Nm
Loosen the Torx screws half a turn each.
CAUTION:
- Install new high-pressure fuel supply lines.
- Lubricate the high-pressure fuel supply line unions with clean engine oil.
NOTE:
- Engine shown removed for clarity.
- Remove and discard the blanking caps.
Install the high-pressure fuel supply lines, tighten the bolts and unions finger tight at stage.

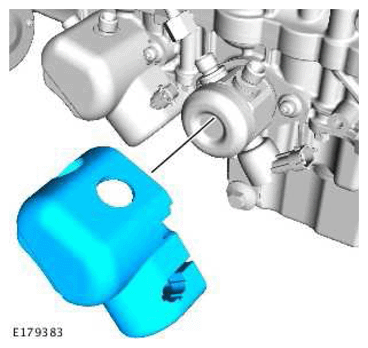

CAUTION: Care must be taken when positioning the fuel rail high-pressure fuel pump cover to one side.

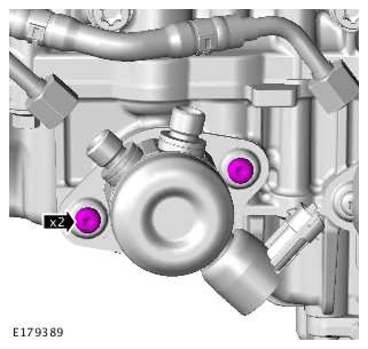

Tighten the Torx screws.

Torque Specification: 12 Nm
Lower the vehicle.
CAUTION: Lubricate only the union threads with clean engine oil.

NOTE: Engine shown removed for clarity.

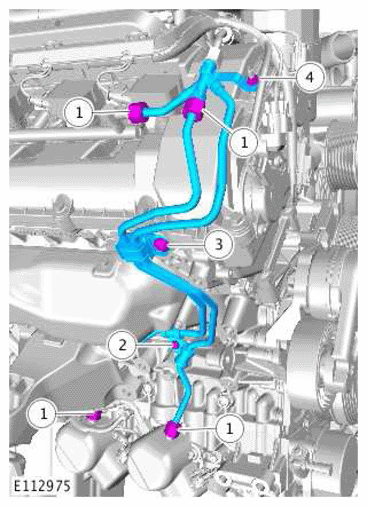

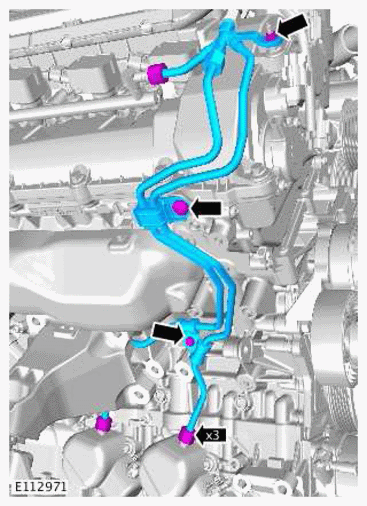

Fig 1: Union Nuts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque Specification:

Unions (1) 21 Nm

M6 (2) 11 Nm

M8 (3) 25 Nm

M5 nut (4) 6 Nm
NOTE: Remove and discard the blanking caps.

Torque Specification:

Unions 21 Nm

Bolt 12 Nm

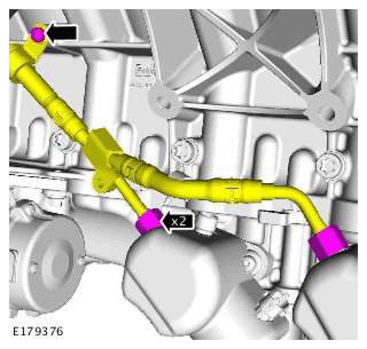

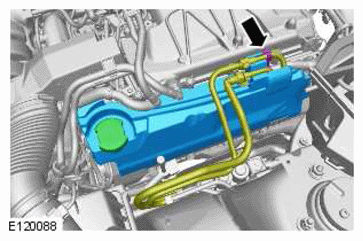

NOTE: Install the bolt and unions finger tight before final tightening.

Torque Specification:

Unions 21 Nm

M6 11 Nm
NOTE: Engine shown removed for clarity.

Torque Specification:

M10 29 Nm

M6 11 Nm

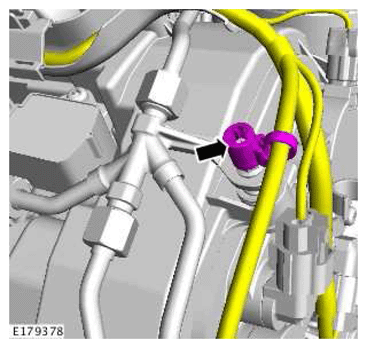

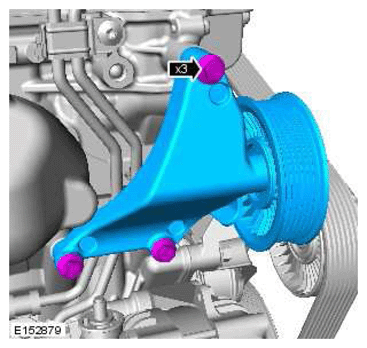

Torque Specification: 25 Nm
Refer to: Generator - V8 S/C 5.0L Petrol (Generator and Regulator - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Right Engine Mount (Engine - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

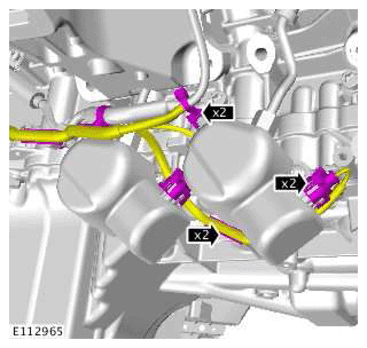

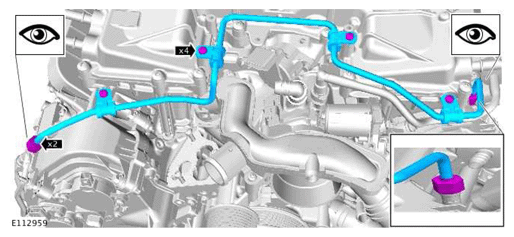

NOTE:
- Lubricate the union threads with clean engine oil.
- Do not tighten at this stage.
- Remove and discard the blanking caps.

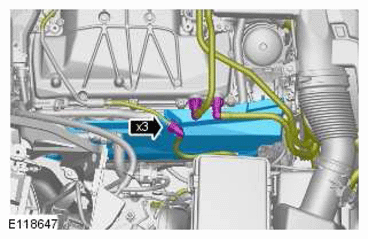

Torque Specification:

Unions 21 Nm

Bolts 8 Nm
Refer to: Right Air Cleaner Outlet Pipe (Intake Air Distribution and Filtering - V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).
Refer to: Engine Cover - V8 S/C 5.0L Petrol (Interior Trim and Ornamentation, Removal and Installation).
Refer to: Secondary Bulkhead Right Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
Refer to: Secondary Bulkhead Left Panel - TDV6 3.0L Diesel/V6 S/C 3.0L Petrol/V8 N/A 5.0L Petrol/V8 S/C 5.0L Petrol (Front End Body Panels, Removal and Installation).
Refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).
