Fuel Pump Delivery Module: Notes
WARNING: This page is about a different car, the 2015 Jaguar XF, 2014 Jaguar XF, and 2013 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

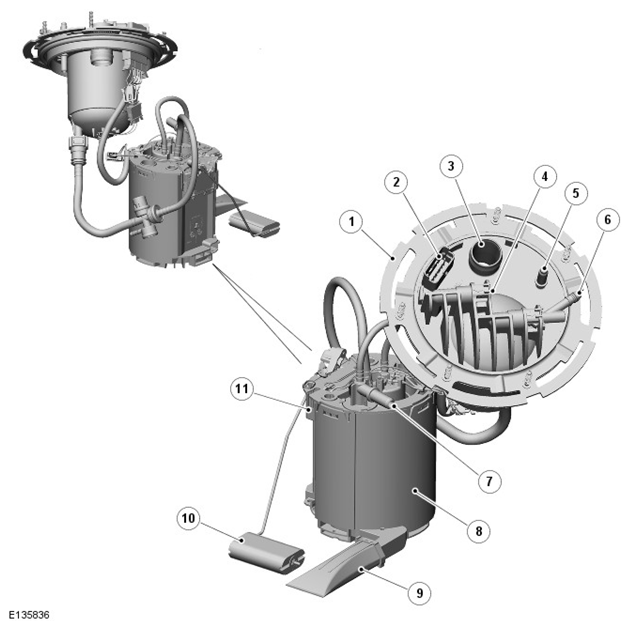

| ITEM | DESCRIPTION |
|---|---|
| 1 | Flange |
| 2 | Electrical connector |
| 3 | Breather hose connection |
| 4 | Fuel tank vapor connection |
| 5 | Fuel fired booster heater feed connection |
| 6 | Fuel feed pipe connection |
| 7 | RH venturi |
| 8 | Swirl pot |
| 9 | Fuel inlet filter |
| 10 | RH fuel level sensor float |
| 11 | RH fuel level sensor |
The fuel pump delivery module is located inside the fuel tank and comprises three main components; a fuel pump, a remote fuel pick-up and a top flange assembly.
