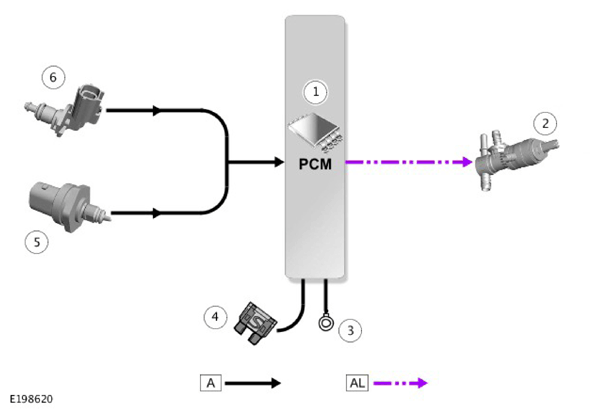

Control Diagram (1 Of 2)
WARNING: This page is about a different car, the 2018 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED, AL = PULSE WIDTH MODULATION (PWM).
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Purge valve |
| 3 |
Ground |
| 4 |
Power supply |
| 5 |
Low pressure fuel sensor |
| 6 |
Engine Coolant Temperature (ECT) sensor |
