Camshaft Housing

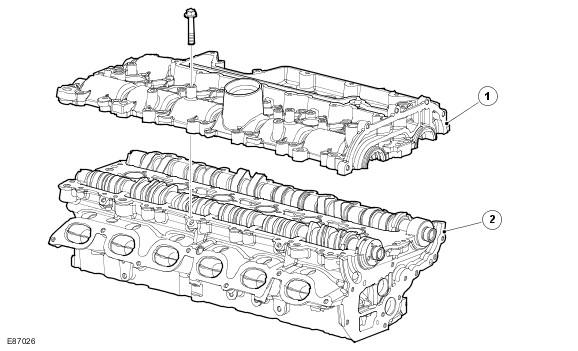

GJ0020611Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Camshaft housing
2 Cylinder head

The chill cast camshaft housing is manufactured from a light-alloy metal and acts as a combined valve cover and camshaft bearing cap. The housing has cast oil ducts on it's underside, which ensure good oil supply to the camshafts and the valve lifters. The oil separation housing is located on the camshaft cover Engine Emission Control - 3.2L. Refer to ENGINE EMISSION CONTROL - 3.2L . .
