Fuel Pump Delivery Module: Notes
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.

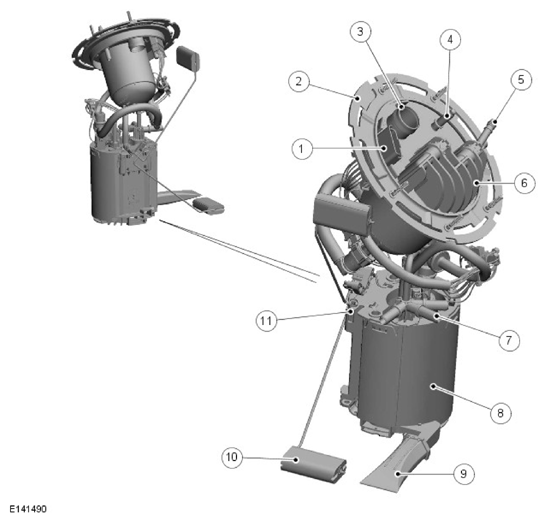

| ITEM | DESCRIPTION |
|---|---|
| 1 | Electrical connector |
| 2 | Flange |
| 3 | Breather hose connection |
| 4 | Fuel fired booster heater feed connection (if fitted) |
| 5 | Fuel feed pipe connection |
| 6 | Fuel tank vapor connection |
| 7 | RH venturi |
| 8 | Swirl pot |
| 9 | Fuel inlet filter |
| 10 | RH fuel level sensor float |
| 11 | RH fuel level sensor |
The fuel pump delivery module is located inside the fuel tank and comprises three main components; a fuel pump, a remote fuel pick-up and a top flange assembly.
