Transfer Case: Removal: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  1. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect

  2. WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.

    Raise and support the vehicle.

  3. Refer to: Transfer Case Draining and Filling
  4. Refer to: Front Driveshaft - AWD
  5. Refer to: Rear Driveshaft - AWD

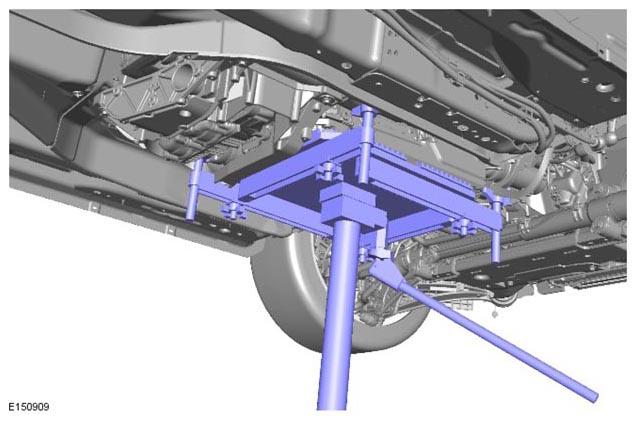

  6. G11292278
  7. G11314295
  8. G11314296
  9. G11314297

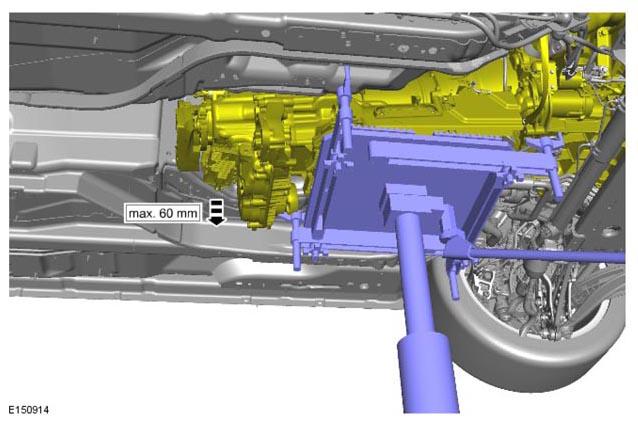

  10. G11292280
  11. CAUTION: Do not use excessive force to remove the component.
    G11314315
  12. NOTE: Note the orientation of the transfer case bolts prior to removal.
    G11314316
  13. G11314317
  14. NOTE: Do not disassemble further if the component is removed for access only.
    G11314318

    Discard the O-ring seal.

  15. CAUTION: Inspect the seal and replace if necessary.
    G11314319
  16. CAUTION: Discard the breather vent.
    G11314275
  17. NOTE: If equipped.
    G11314252
  18. NOTE: If equipped.
    G11314245
