Instrument Cluster Lens: Removal
NOTE:
Some variation in the illustration may occur, but the essential information is always correct.
- Fully extend the steering column for access
- Disconnect the battery ground cable.
Refer to: Specification information.
- Refer to: Instrument Cluster .

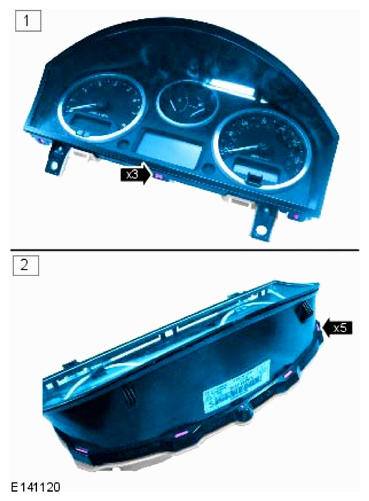

- Carefully release the 3 clips along the bottom edge and the 5 clips along the top edge.

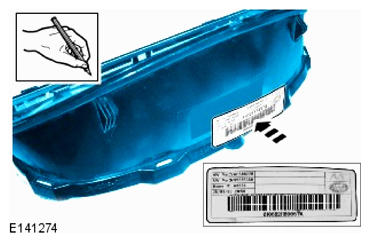

- Copy the serial number and build date information from the old label on to the new label.
- See figure
CAUTION:

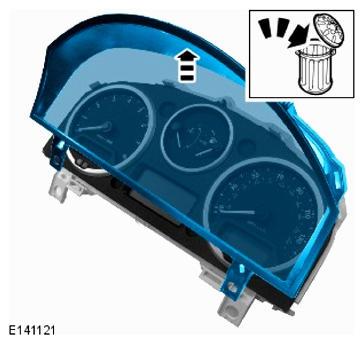

Take care not to damage the dials or buttons when removing the lens.
