Coolant Pump (G1773250): Removal

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2015 Jaguar XFR-S, 2015 Jaguar XFR, 2015 Jaguar XF, 2014 Jaguar XFR-S, and 2014 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to Cooling System Partial Draining and Vacuum Filling (General Procedures).
  3. NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

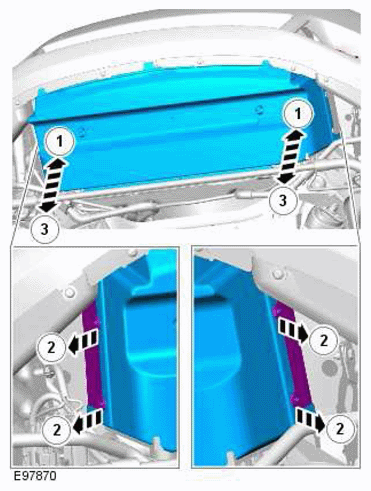

    G11418682

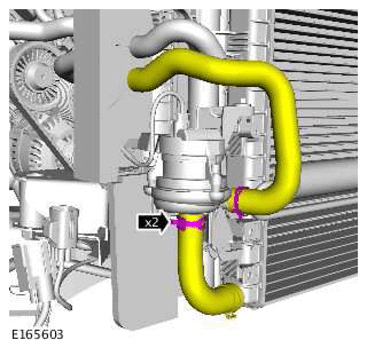

  4. G11418683

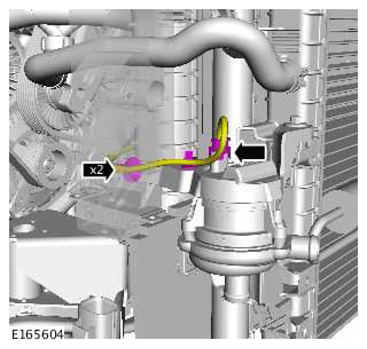

  5. G11418684

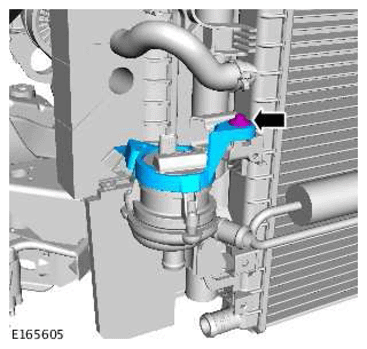

  6. G11418685

    Torque: 9 Nm

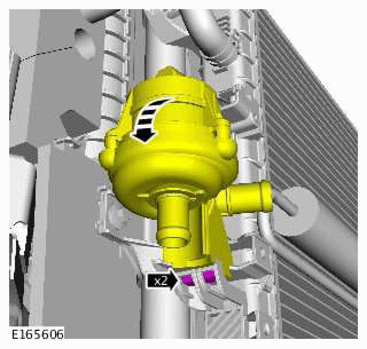

  7. G11418686

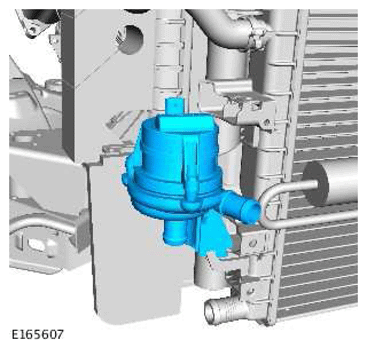

  8. G11418687
