Transfer Case: Installation: Overview

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

NOTE: If equipped.

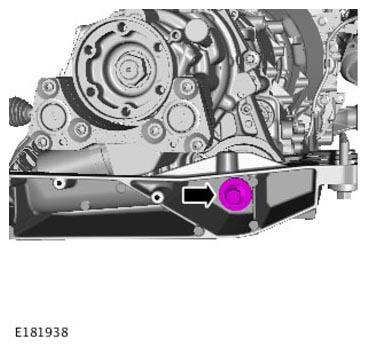

Torque Specification: : 25 Nm
Torque Specification: : 45 Nm

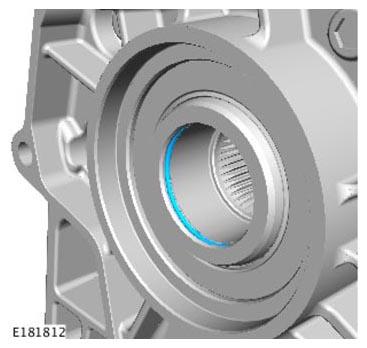

Install a new O-ring seal. Renew Part: Transfer case input shaft oil seal Quantity: 1.
Install a new O-ring seal.
CAUTION:

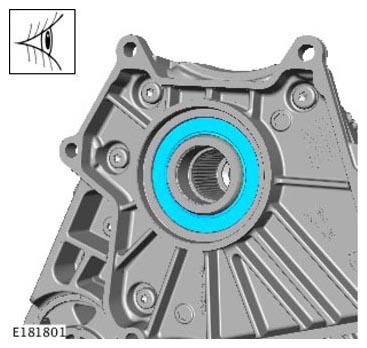

- Make sure that the mating faces are clean and free of foreign material.
Refer to: Transfer Case - Vehicles With: 8HP70 8-Speed Automatic Transmission AWD/8HP70 8-Speed Automatic Transmission RWD/8HP45 8-Speed Automatic Transmission AWD/8HP45 8-Speed Automatic Transmission Rwd

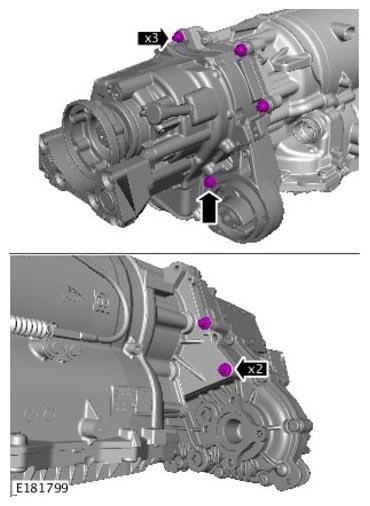

CAUTION: Make sure the transfer case bolts are installed in the correct orientation.

Torque Specification: : 43 Nm

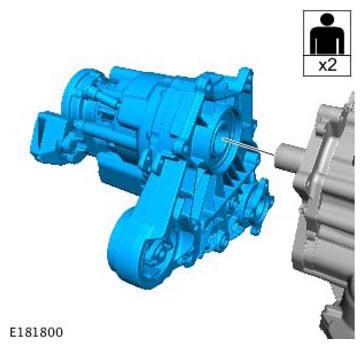

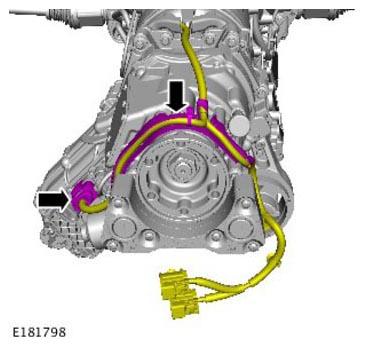

CAUTION: Do not use excessive force to install the component.
NOTE: Do not fully tighten at this stage.
NOTE: Do not fully tighten at this stage.

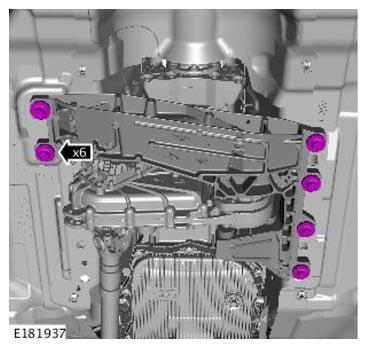

Torque Specification: : 48 Nm
Torque Specification: : 103 Nm
Torque Specification: : 10 Nm

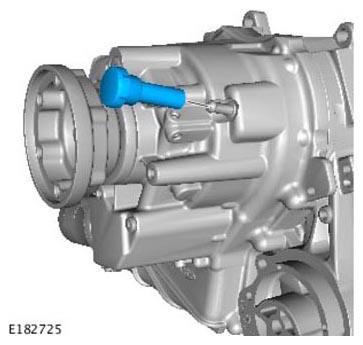

CAUTION: A new breather vent must always be installed.
Refer to: Front Driveshaft - AWD
Refer to: Rear Driveshaft - AWD Rear Driveshaft - AWD (205-01 Driveshaft, Removal and Installation).
Refer to: Transfer Case Draining and Filling
Connect the battery ground cable.
Refer to: Battery Disconnect and Connect
