Removal And Installation: Removal

WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If a new component is to be installed, connect the approved diagnostic equipment prior to removal, the adaptive parameter data must then be downloaded. This data will be lost during removal and is required for component configuration on installation.
NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Some illustrations may show the transfer case removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. Connect the approved diagnostic equipment to obtain any fault code data (or) any diagnostic trouble codes (DTC's).
  2. Disconnect the battery ground cable.

    Refer to: Battery Disconnect and Connect

  3. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  4. Refer to: Air Deflector

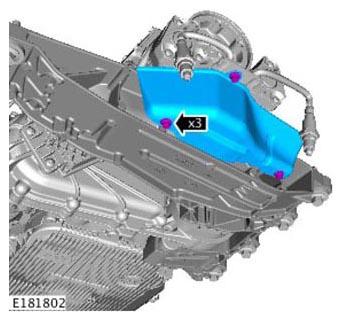

  5. G11314294

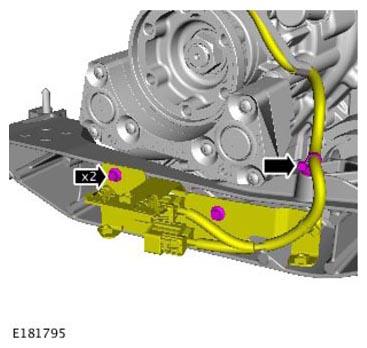

  6. G11314295
  7. Using a suitable stand, support the transmission.

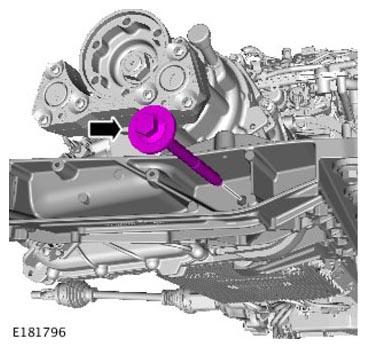

  8. G11314296

    Torque Specification:  : 103 Nm

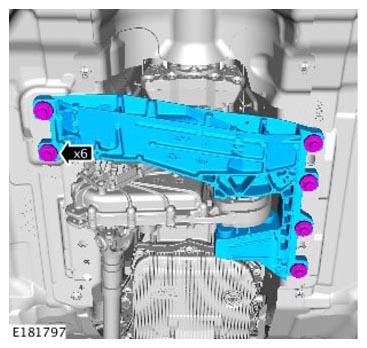

  9. G11314297

    Torque Specification:  : 48 Nm

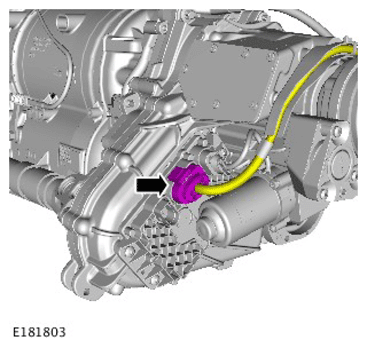

  10. G11329605

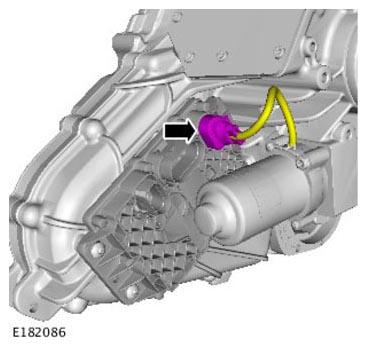

  11. G11314298

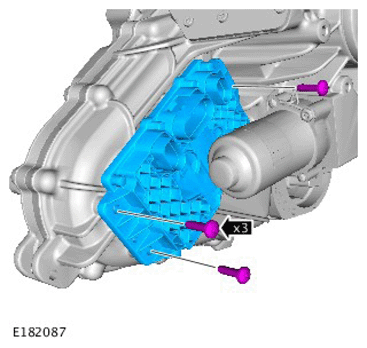

  12. G11329607

    Torque Specification:  : 10 Nm
