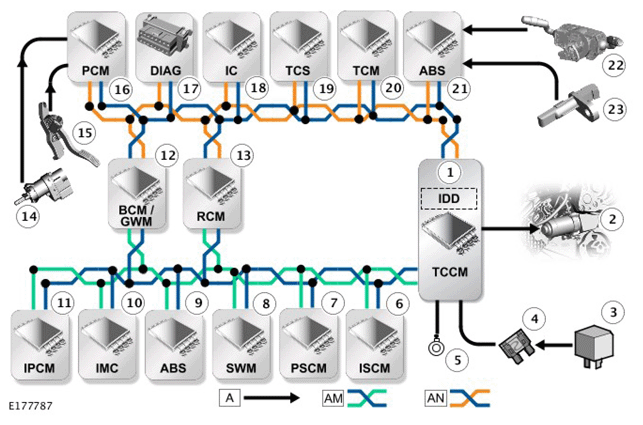

Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XF and 2017 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRE; AM = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) CHASSIS SYSTEMS BUS; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Transfer case control module - Integrated intelligent driveline dynamics |
| 2 | Hydraulic control pump |
| 3 | All-Wheel Drive (AWD) relay located in the EJB |
| 4 | Switched battery voltage supply - controlled by BCM/GWM |
| 5 | Transfer case control module - ground |
| 6 | Integrated suspension control module |
| 7 | Power steering control module |
| 8 | Steering wheel module |
| 9 | Anti-lock brake system control module |
| 10 | Infotainment master controller |
| 11 | Image processing control module |
| 12 | Body control module/Gateway module assembly |
| 13 | Restraints control module |
| 14 | Brake switch |
| 15 | Accelerator pedal |
| 16 | Engine control module |
| 17 | Diagnostic connector |
| 18 | Instrument cluster |
| 19 | Transmission control switch |
| 20 | Transmission control module |
| 21 | Anti-lock brake system control module |
| 22 | Steering angle sensor |
| 23 | Wheel speed sensor |
