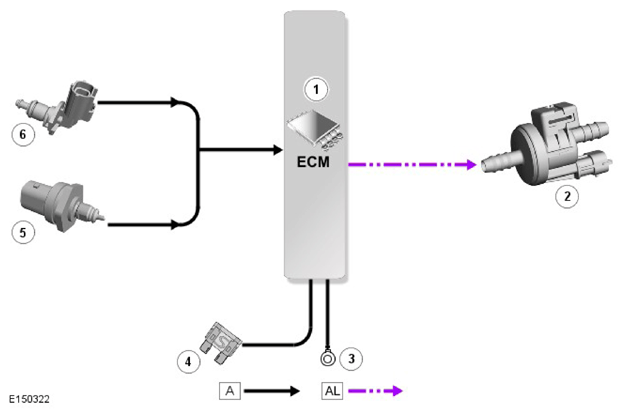

Control Diagram
WARNING: This page is about a different car, the 2018 Jaguar XF, 2017 Jaguar XF, and 2016 Jaguar XF. However, it is still accessible from the selected car via links, so may be relevant.
A = Hardwares; AL = PWM (Pulse Width Modulation).
| ITEM |
DESCRIPTION |
| 1 |
Engine Control Module (ECM) |
| 2 |
Purge valve |
| 3 |
Ground |
| 4 |
Power supply |
| 5 |
Low pressure fuel sensor |
| 6 |
Engine Coolant Temperature sensor (ECT) |
