Crankshaft Main Bearing Carrier: Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Some variation in the illustrations may occur, but the essential information is always correct.
- Raise and support the vehicle.
-
- Torque: 38 Nm.
- Remove and discard the sealing washer.
WARNING: Avoid skin contact with the specified material.CAUTION: Hot fluid.CAUTION: Be prepared to collect escaping fluids. - Refer to: Removal

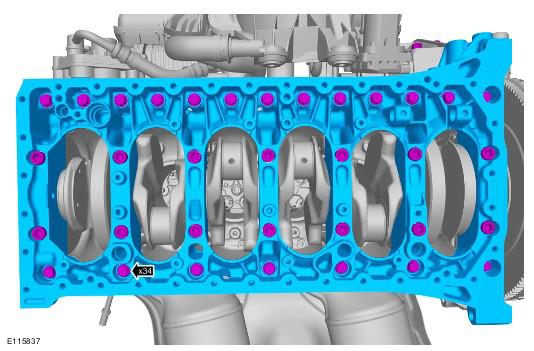

- See figure.
- Torx Socket, Accessory Drive Pulley (303-1284)
Aligner, Timing Cover (303-1278)
Torque: 60 Nm.
- Torque: 65 Nm.
- Torque: 65 Nm.
-
- If the locking pin on the special tool is disengaged, the crankshaft can be rotated.
- Locking Tool, Crankshaft (303-1219)
NOTE: Some variation in the illustrations may occur, but the essential information is always correct. - Torque: 10 Nm.
- Torque: 47 Nm.
- Torque: 10 Nm.
- Torque: 47 Nm.
- Mount the engine to an engine stand.
- Torque: 10 Nm.
- Torque: 10 Nm.
- Torque: 48 Nm.
- See figure.
- Torque: 10 Nm.
- Torque: 10 Nm.
- See figure.NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
- Torque:
M7: 17 Nm
M10: 45 Nm
- Torque: 17 Nm.
- Torque: 17 Nm.
- Torque: 17 Nm.
-
- Remove the oil pump pivot pin.
- Remover, Oil Pump Pin (303-1280)
- See figure.
- See figure.
- See figure.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
NOTE:
This step requires the aid of another technician.
CAUTION:
Make sure that the torque converter remains in the transmission.
NOTE:
This step requires the aid of another technician.
NOTE:
Make sure that all traces of the old sealant are removed from the mating faces.
CAUTION:
Discard the seal.
Vehicles built up to VIN:148530
CAUTION:
Discard the seals.
All vehicles
CAUTION:
Discard the seals.
