Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Floor Console Upper Section

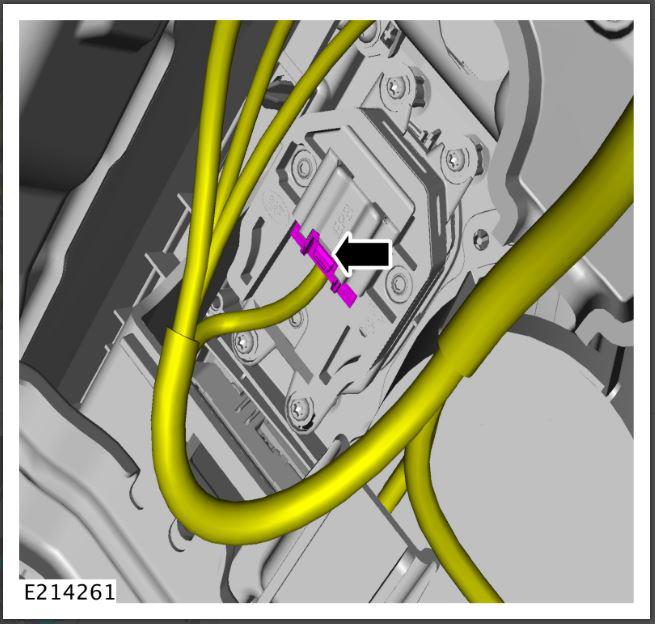

  2. G00570029

    Disconnect the electrical connector.

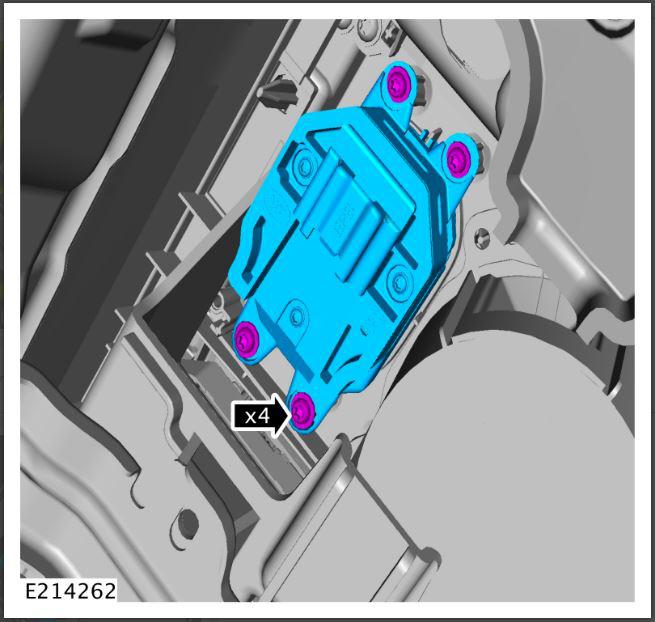

  3. G00570030

    Torque Specification: 1.1 Nm
