Control Diagram
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A
= Hardwired;D
= High speed Controller Area Network (CAN) bus.

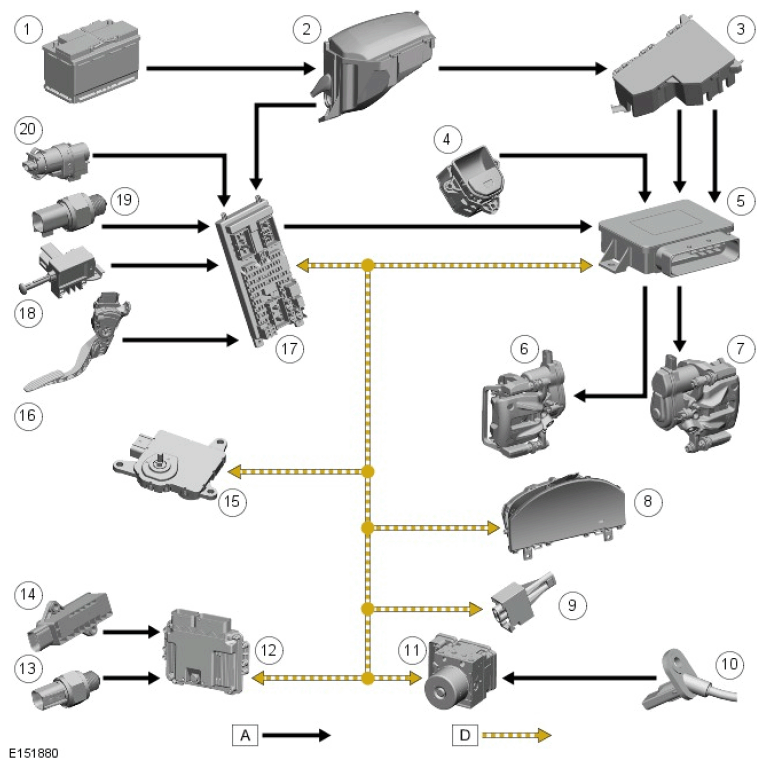

| ITEM | DESCRIPTION |
|---|---|
| 1 | Battery |
| 2 | Battery Junction Box (BJB) |
| 3 | Rear Junction Box (RJB) |
| 4 | EPB switch |
| 5 | EPB module |
| 6 | Left EPB actuator |
| 7 | Right EPB actuator |
| 8 | Instrument Cluster (IC) |
| 9 | Diagnostic socket |
| 10 | Wheel speed sensor (4 off) |
| 11 | Anti-lock Brake System (ABS) module |
| 12 | Engine Control Module (ECM) |
| 13 | 1st gear switch (manual transmission vehicles only) |
| 14 | Neutral sensor (manual transmission vehicles only) |
| 15 | Transmission Control Module (TCM) (Automatic Transmission vehicles only) |
| 16 | Acceleration Pedal Position (APP) sensor |
| 17 | Central Junction Box (CJB) |
| 18 | Clutch position sensor (manual transmission vehicles only) |
| 19 | Reverse gear switch (manual transmission vehicles only) |
| 20 | Stop lamp switch |
