Electronic Parking Brake Actuators
WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.

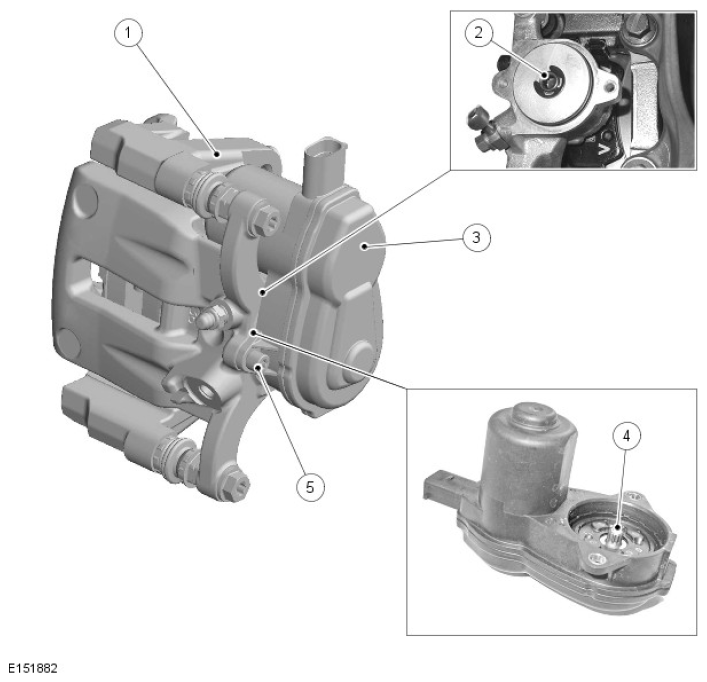

| ITEM | DESCRIPTION |
|---|---|
| 1 | Brake caliper |
| 2 | Spindle |
| 3 | EPB actuator |
| 4 | Output shaft |
| 5 | Screws |
The EPB actuators are electro mechanical positioning units attached to the calipers of the rear brakes. Each actuator incorporates a reversible electric motor driving an output shaft via a drive belt and planetary gear cluster.
The output shaft of the EPB actuator is engaged in the splined end of a spindle, which is inside the caliper piston and screwed into a thrust nut. Operation of the electric motor turns the spindle and produces linear movement of the thrust nut, to apply a target clamp load to the brake pads.
