General Procedures: Check

WARNING: This page is about a different car, the 2015 Land Rover LR2, 2014 Land Rover LR2, and 2013 Land Rover LR2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Chock the wheels and make sure that all personnel are clear of the vehicle before carrying out the following procedure.
CAUTION: LH illustration shown, RH is similar.
NOTE:
  • To be carried out in the event that the vehicle has no electrical power.
  • Removal steps in this procedure may contain installation details.
  1. Disconnect the battery ground cable.

    Refer to: Specifications

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: Wheel and Tire

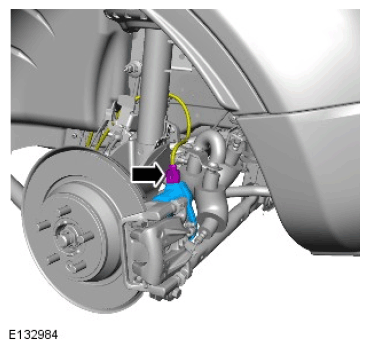

  4. G11589470
  5. CAUTION: Discard the bolt.
    NOTE: Remove and discard the O-ring seal.
    G11675130

    Torque Specification: 11 Nm

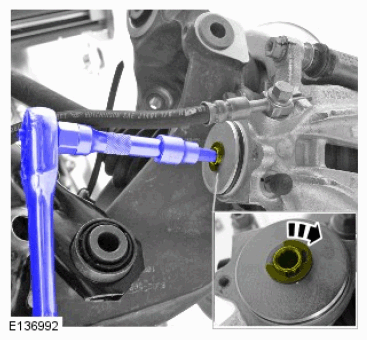

  6. G11589472
