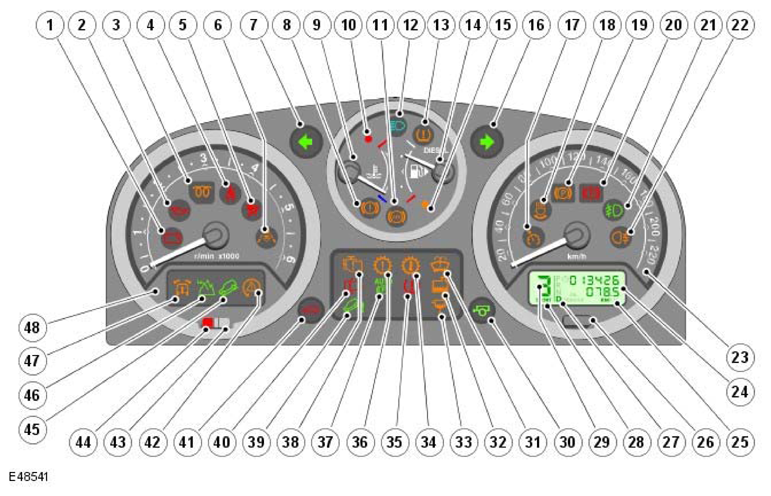

Instrument Cluster - Low Line
NOTE:
ROW Left hand drive diesel shown
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition/No charge warning indicator |
| 2 | - | Low oil pressure warning indicator |
| 3 | - | Glow plug indicator |
| 4 | - | Seat belt warning indicator |
| 5 | - | SRS warning indicator |
| 6 | - | Not used |
| 7 | - | Left turn signal indicator |
| 8 | - | Brake warning indicator (pad wear/low fluid/EBA/EBD) |
| 9 | - | Coolant temperature gage |
| 10 | - | High coolant temperature warning indicator |
| 11 | - | ABS indicator |
| 12 | - | High beam indicator |
| 13 | - | Tyre pressure monitoring system indicator (if fitted) |
| 14 | - | Fuel level gage |
| 15 | - | Low fuel level indicator |
| 16 | - | Right turn signal indicator |
| 17 | - | Cruise control indicator |
| 18 | - | Adaptive front lighting system indicator (if fitted) |
| 19 | - | Park brake fault indicator |
| 20 | - | Park brake warning indicator |
| 21 | - | Front fog lamp indicator |
| 22 | - | Rear fog lamp indicator |
| 23 | - | Speedometer |
| 24 | - | Odometer |
| 25 | - | Trip meter display |
| 26 | - | Trip reset button |
| 27 | - | Selector lever position (automatic transmission only) |
| 28 | - | CommandShift™/Sport mode indicator |
| 29 | - | CommandShift™ gear position (automatic transmission only) |
| 30 | - | Trailer indicator |
| 31 | - | Low washer fluid indicator |
| 32 | - | Low coolant indicator |
| 33 | - | Water in fuel indicator - non-functional |
| 34 | - | Driveline overheat indicator |
| 35 | - | Tyre pressure warning |
| 36 | - | Driveline fault warning indicator |
| 37 | - | Park brake city mode indicator - non-functional |
| 38 | - | Engine management system fault indicator |
| 39 | - | HDC fault warning indicator |
| 40 | - | Door open warning indicator |
| 41 | - | Auxiliary heating indicator (non-functional - bulb check only) |
| 42 | - | DSC/traction control indicator |
| 43 | - | Ambient light sensor |
| 44 | - | Alarm indicator |
| 45 | - | HDC active indicator |
| 46 | - | Transfer box low range indicator |
| 47 | - | Air suspension warning indicator (if fitted) |
| 48 | - | Tachometer |
