Connector C0230

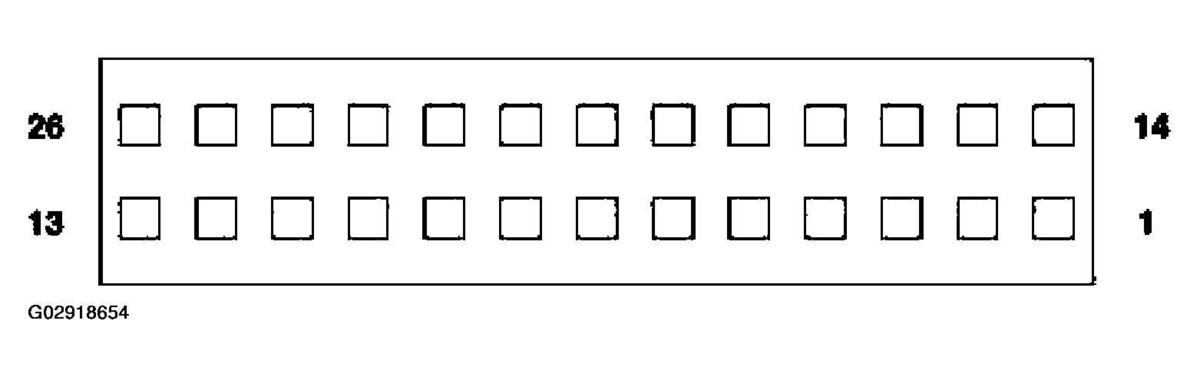

The following table shows pin inputs/outputs for connector C0230.
INSTRUMENT PACK CONNECTOR C0230 TERMINALS DESCRIPTIONS
| Pin No. | Description | Input/Output |
|---|---|---|
| 1 | Seat belt warning signal | Input |
| 2 | Not used | - |
| 3 | Not used | - |
| 4 | Engine speed signal | Input (PWM) |
| 5 | Cruise active signal | Input (digital) |
| 6 | Not used | - |
| 7 | 1st gear input (manual gearbox only) | Input (digital) |
| 8 | A/C pressure sensor (power supply) (diesel and NAS KV6 only) | Output |
| 9 | A/C pressure sensor signal (System pressure) (diesel and NAS KV6 only) | Input (analogue) |
| 10 | A/C pressure sensor earth (diesel and NAS KV6 only) | Output |
| 11 | Diagnostic ISO 9141 K Bus (serial) | Input/Output |
| 12 | CAN + (serial) | Input/Output |
| 13 | CAN + (serial) | Input/Output |
| 14 | Rear fog lamp active signal | Input |
| 15 | Trailer lamp failure signal | Input |
| 16 | Not used | - |
| 17 | Not used | - |
| 18 | Not used | - |
| 19 | Not used | - |
| 20 | A/C evaporator temperature signal (diesel and NAS KV6 only) | Input (analogue) |
| 21 | Fuel level sender signal | Input (analogue) |
| 22 | Not used | - |
| 23 | Permanent battery supply (13.4 V nominal) | Input |
| 24 | Earth | Input |
| 25 | CAN - (serial) | Input/Output |
| 26 | CAN - (serial) | Input/Output |
