Instrument Pack - Control Diagram
Instrument Pack - Control Diagram

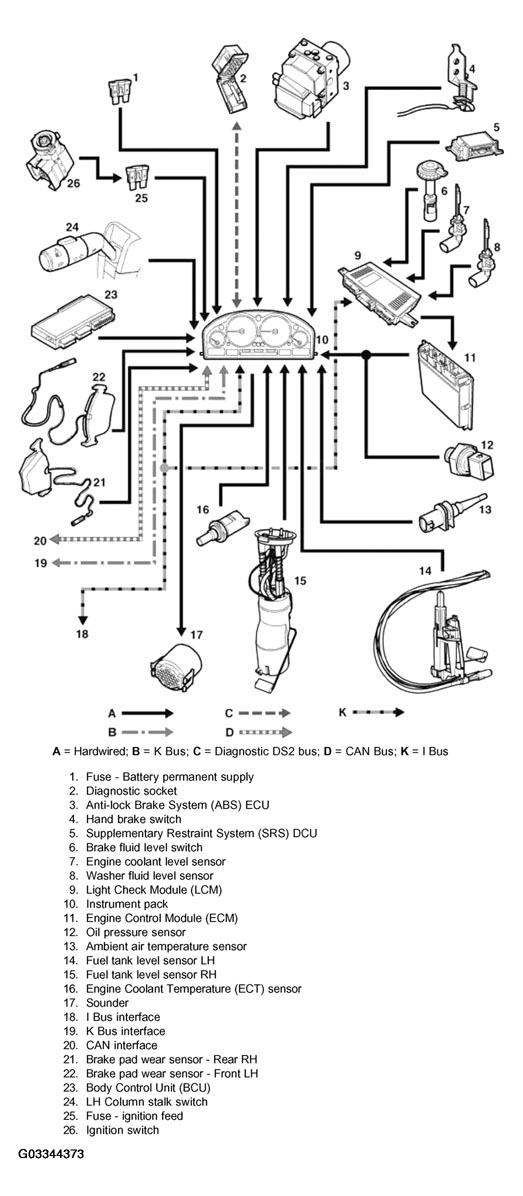

Fig 1: Instrument Pack - Control Diagram
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
