Reverse Idler Gear and Centre Plate - Reassemble

Reverse Idler Gear And Centre Plate - Reassemble

1. Examine components for wear and damage.

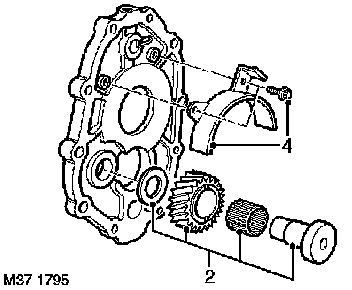

2. Assemble reverse idler gear needle roller bearing, idler gear, spacer and shaft and using suitable tool, press into centre plate.
3. Using feeler gauges, check clearance between reverse idler gear and shaft flange, fit a thicker or thinner spacer if necessary in order to achieve correct clearance.
New clearance:
0.04 - 0.38 mm (0.0016in - 0.015 in)

Service limit:
0.38 mm (0.015 in)

4. Fit splash shield, fit bolts and tighten to 8 Nm (6 ft. lbs.).

CAUTION: Do not fit detent balls or springs at this stage.
