Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE SENSOR

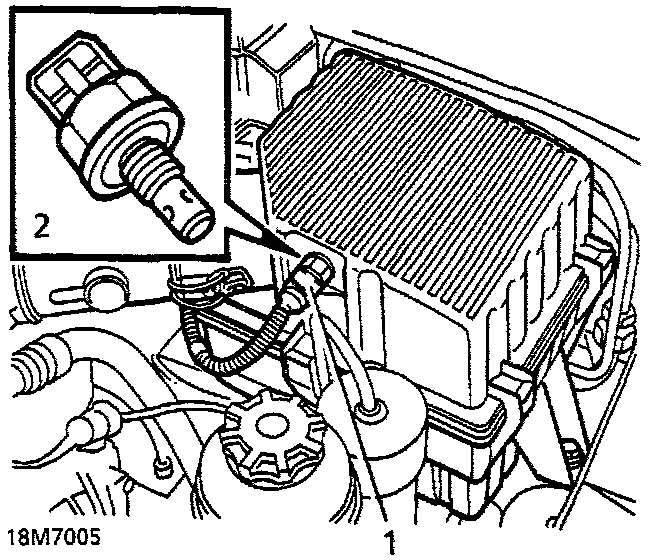

(Numbers seen within image reflect procedure step numbers)

Remove





1. Disconnect multiplug from Intake Air Temperature (IAT) Sensor.

2. Remove IAT Sensor from air cleaner.

Refit

3. Fit IAT Sensor.

Tighten to 8 Nm (6 ft.lb.)

4. Connect multiplug.
