Home >> Land Rover >> 1997 >> Defender 90 (LD) V8-4.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Exterior Lamps >> Brake and Reverse Lamps

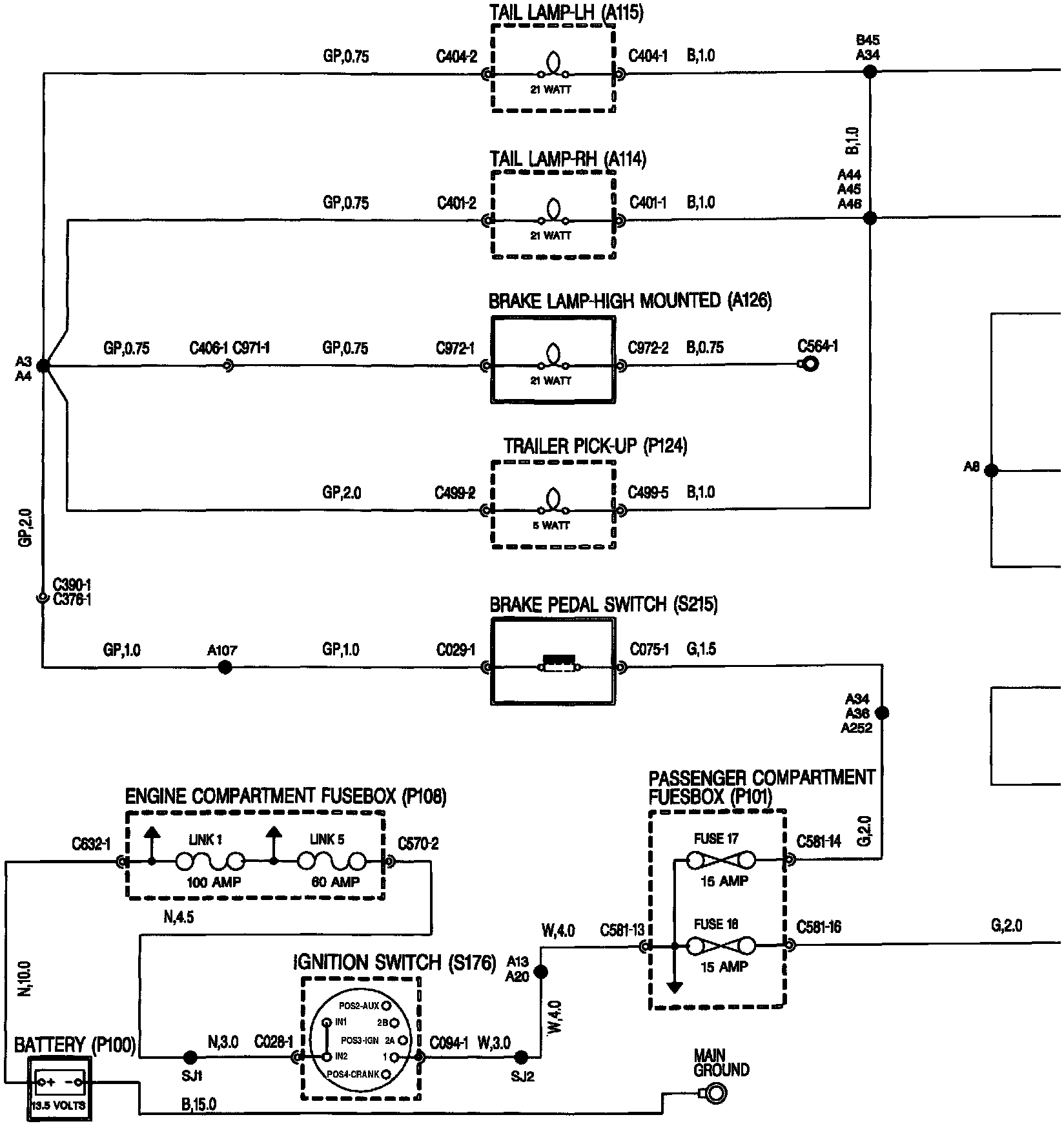

Brake and Reverse Lamps

� �.Exterior Lamps: Brake And Reverse Lamps:
