Home >> Land Rover >> 1997 >> Defender 90 (LD) V8-4.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Diagrams >> Electrical Diagrams

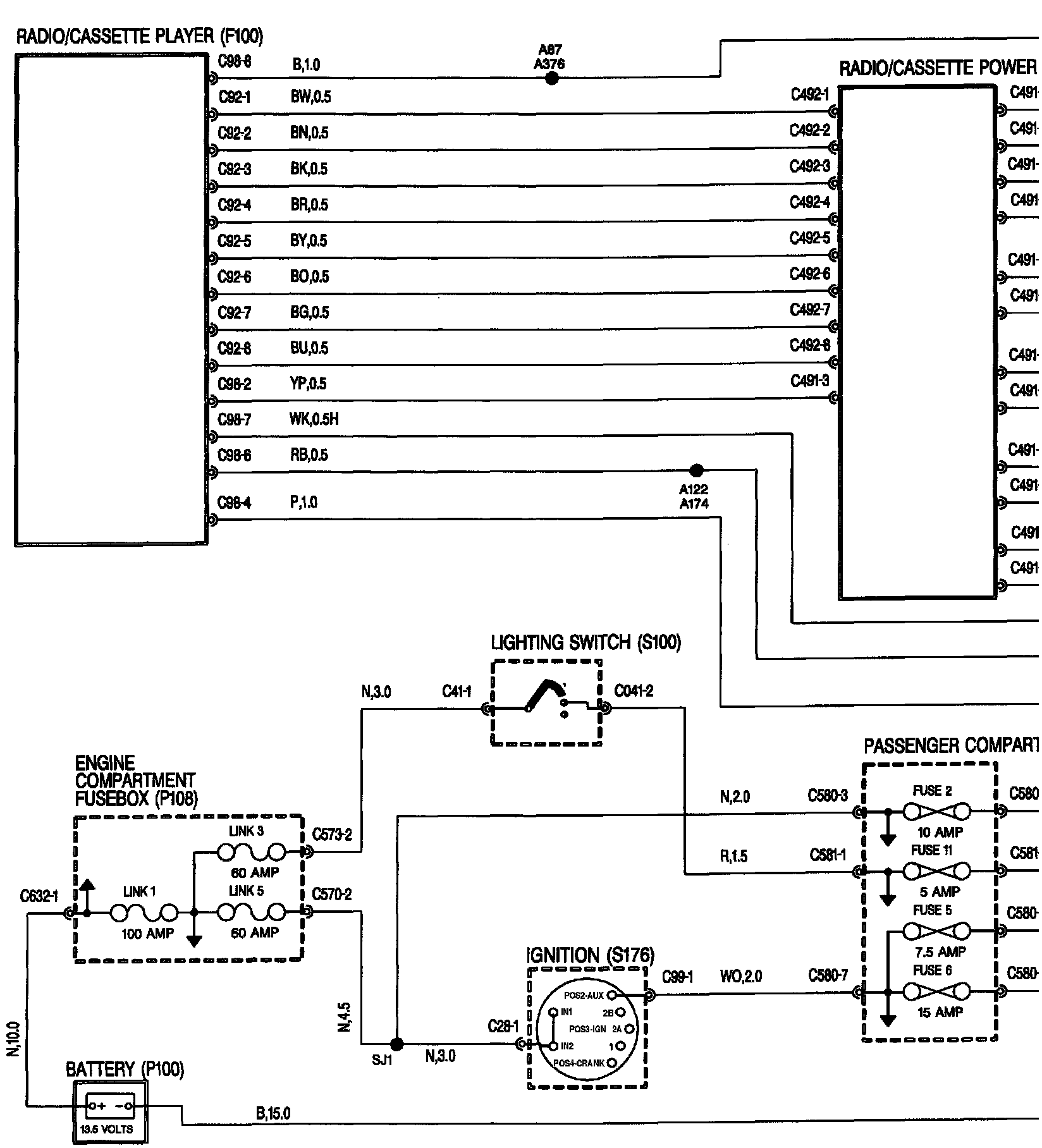

Electrical Diagrams

�X�%In-Car Entertainment:
