Test G: Light Does Not Illuminate - Transmission/Transfer Box Oil Temperature Warning Light Illuminated As Bulb Test With Ignition Switch In Position III

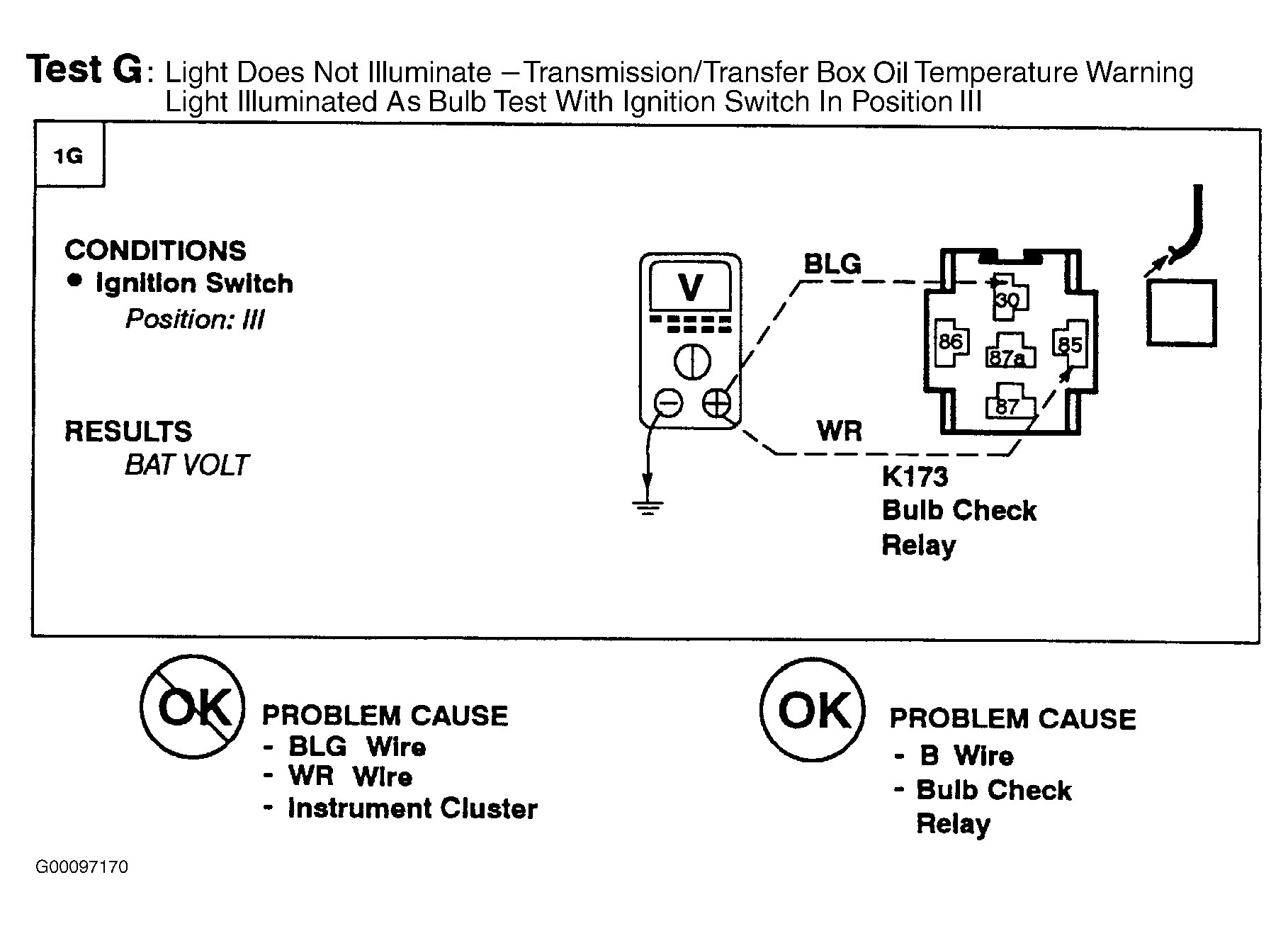

Fig 1: Test G: Light Does Not Illuminate - Transmission/Transfer Box Oil Temperature Warning Light Illuminated As Bulb Test With Ignition Switch In Position III

Courtesy of LAND ROVER NORTH AMERICA, INC.
