Test D: Speedometer Does Not Operate

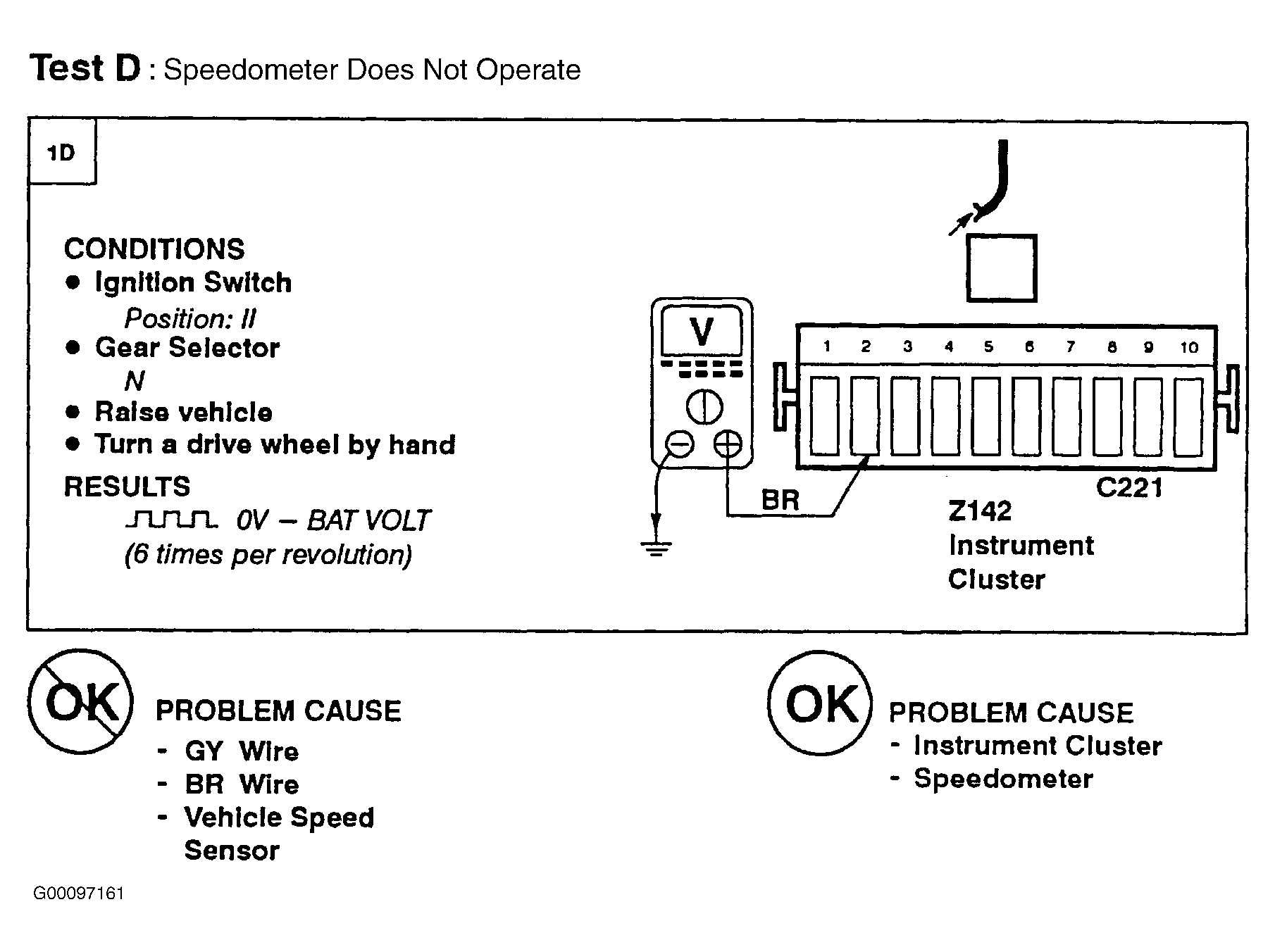

Fig 1: Test D: Speedometer Does Not Operate

G00097161

Courtesy of LAND ROVER NORTH AMERICA, INC.
