Test C: Fuel Gauge Reads Empty With Fuel In The Tank Or Full When Tank Is Empty

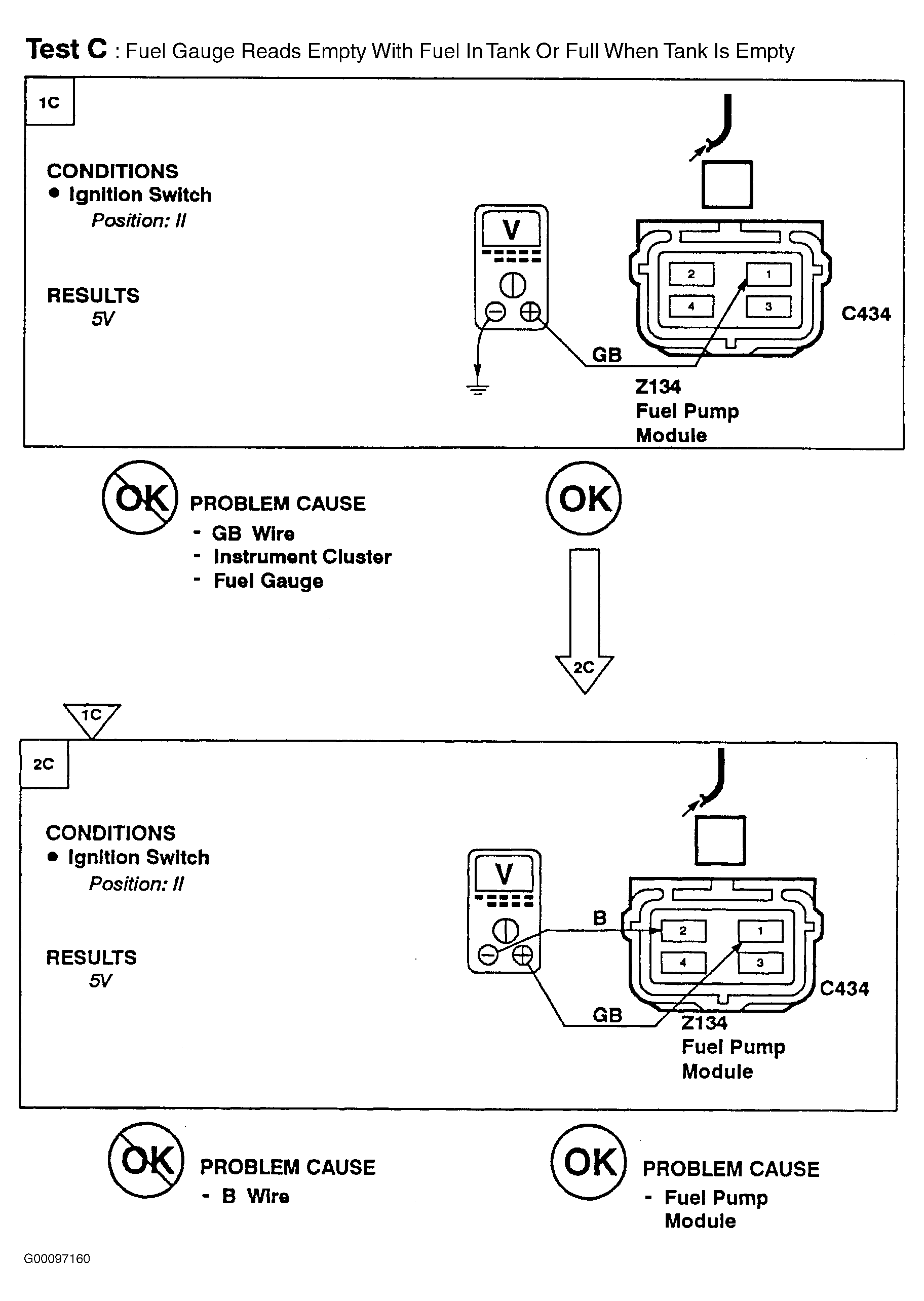

Fig 1: Test C: Fuel Gauge Reads Empty With Fuel In Tank Or Full When Tank Is Empty
G00097160Courtesy of LAND ROVER NORTH AMERICA, INC.
