Test B: Coolant Temperature Gauge Reads Hot With Coolant Cool Or Cool With Coolant Hot

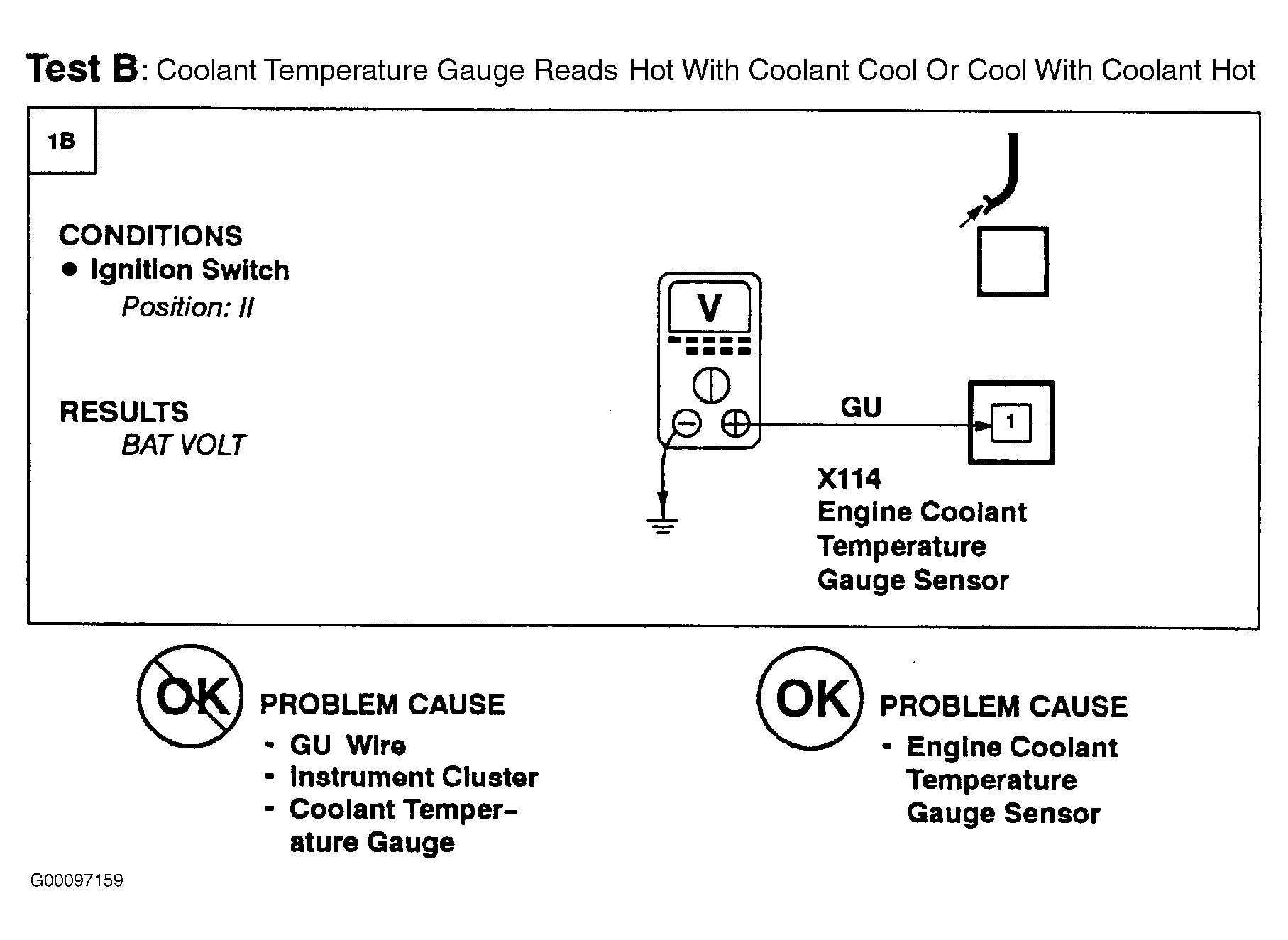

Fig 1: Test B: Coolant Temperature Gauge Reads Hot With Coolant Cool Or Cool With Coolant Hot

Courtesy of LAND ROVER NORTH AMERICA, INC.
