Wiring Diagrams

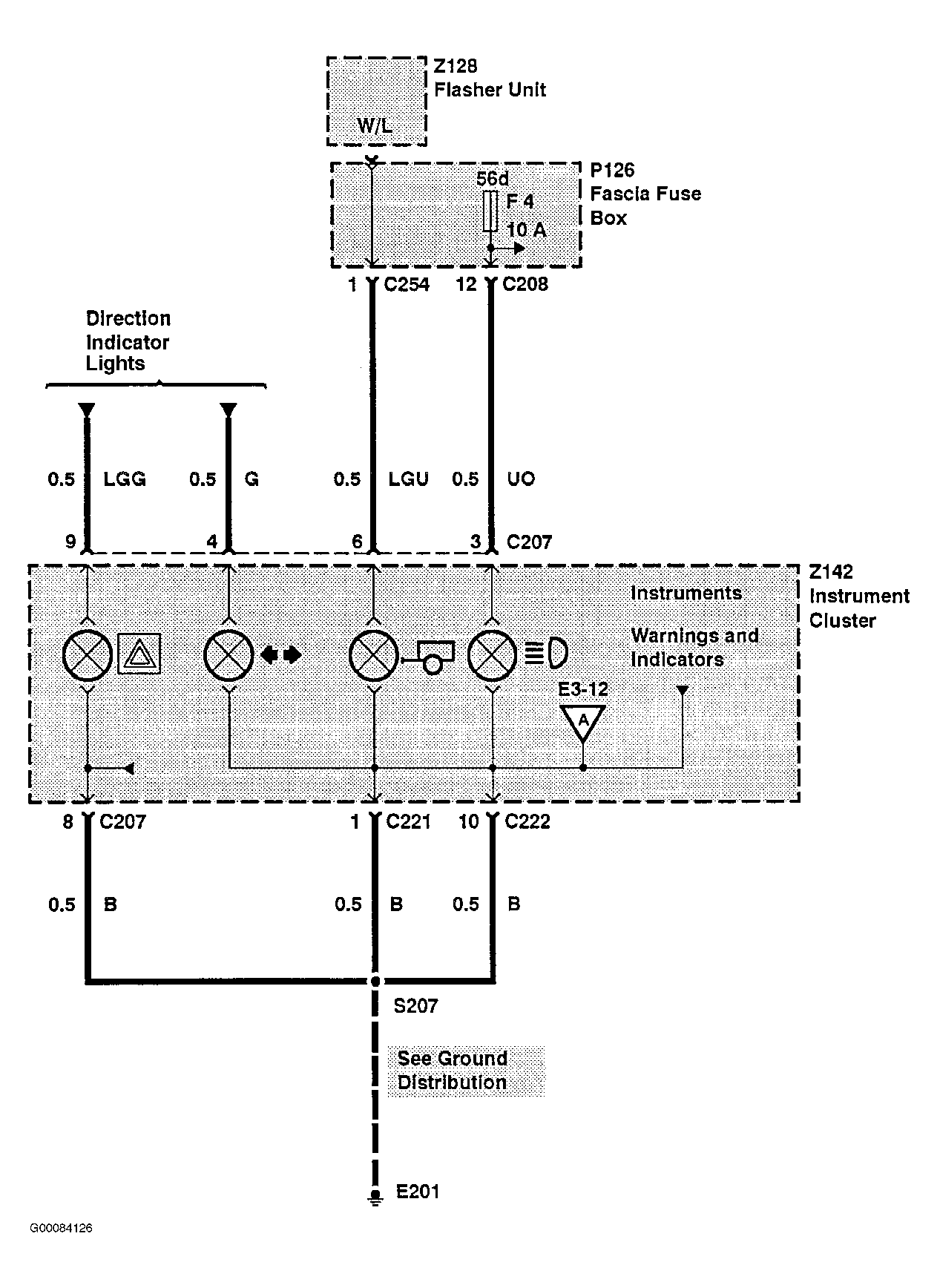

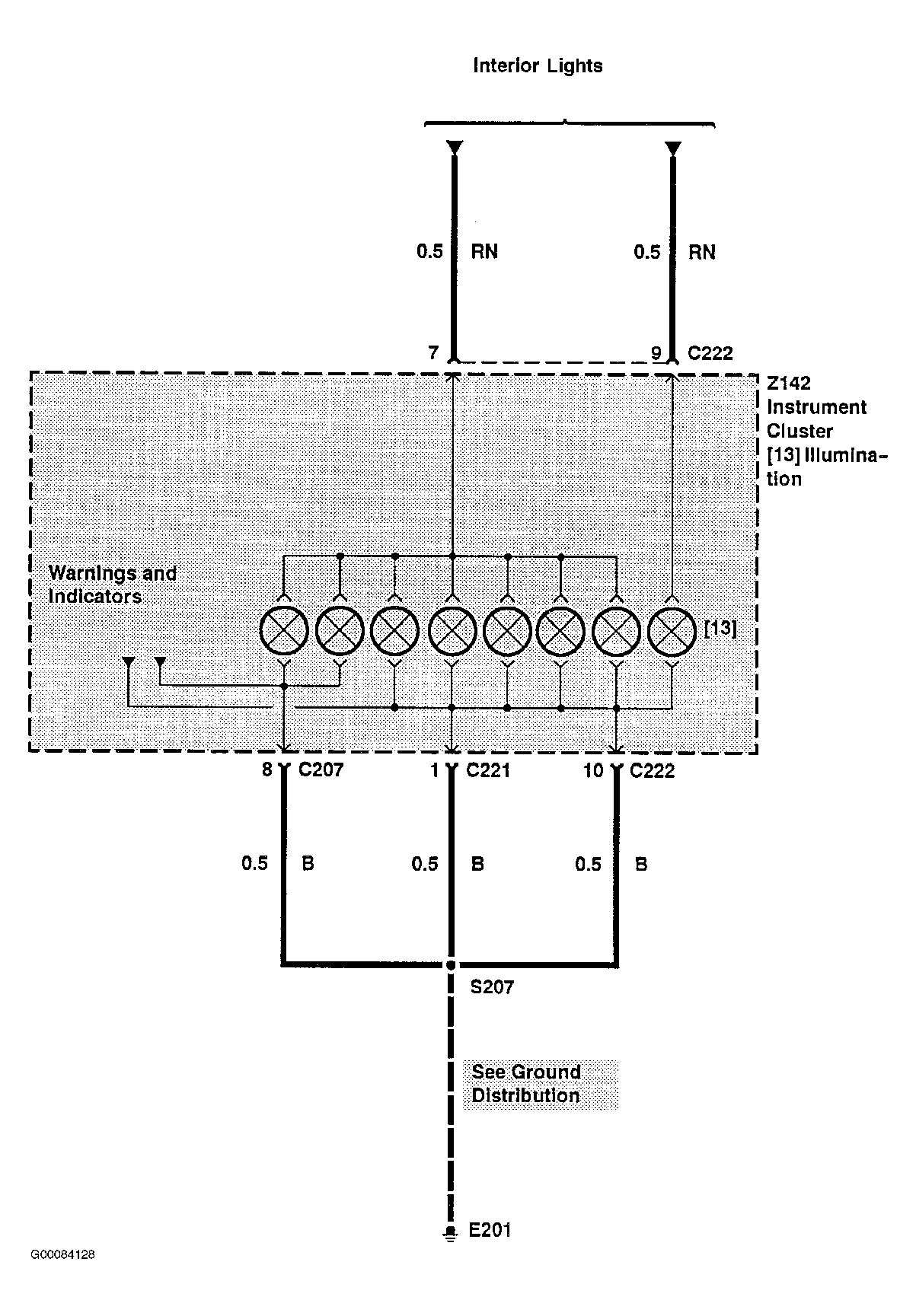

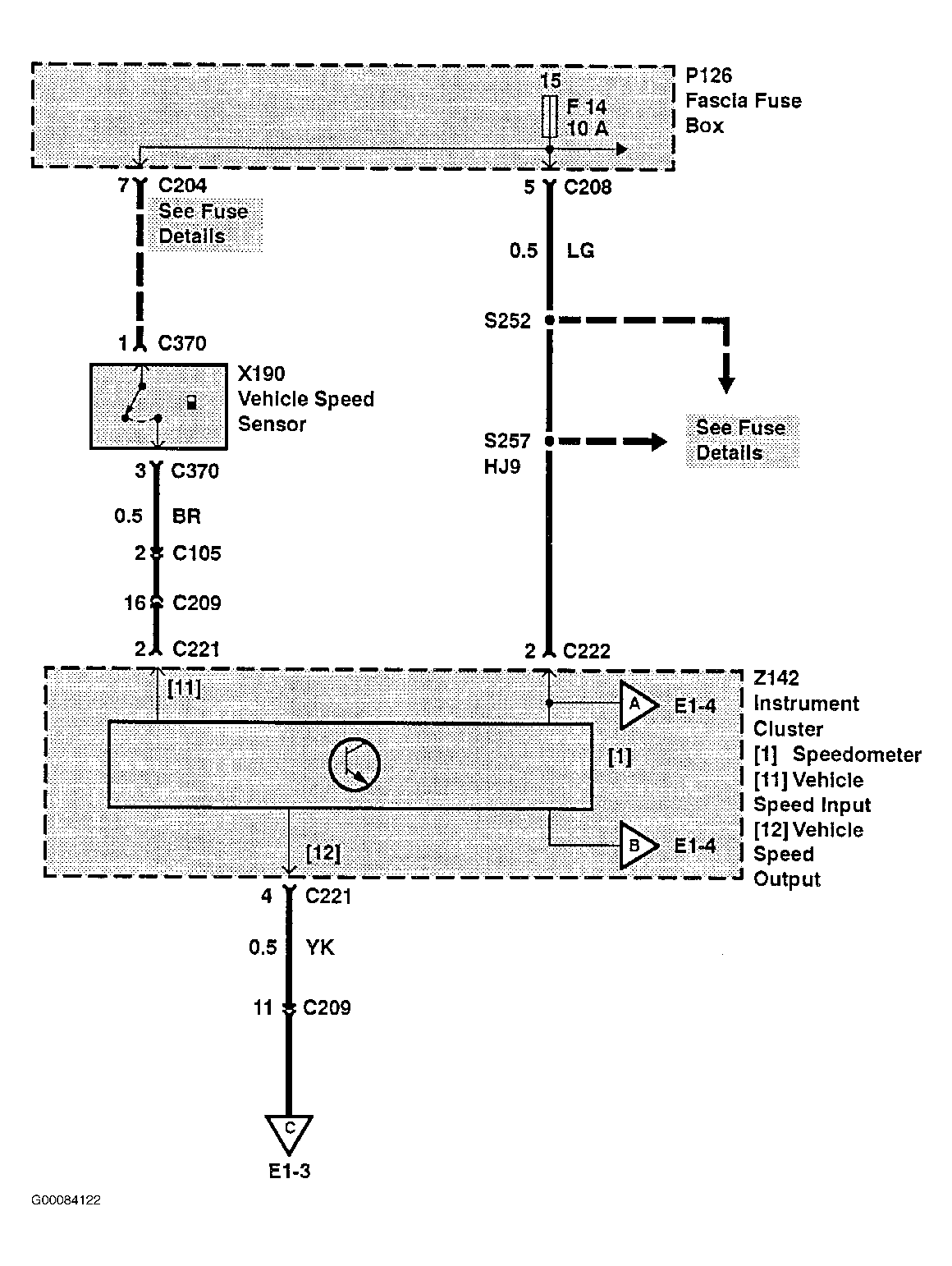

Fig 1: Instrument Panel Circuit Wiring Diagram (1 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

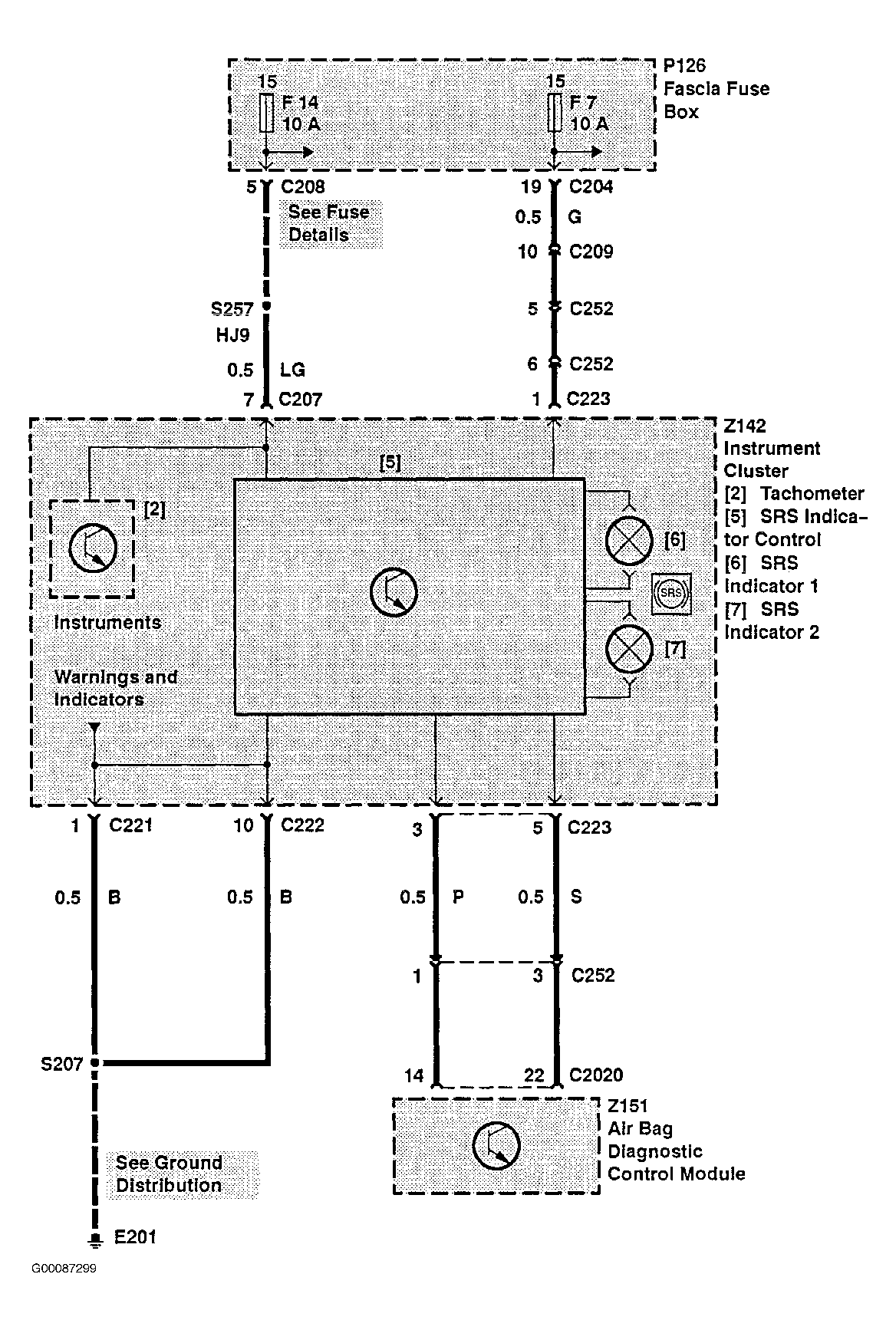

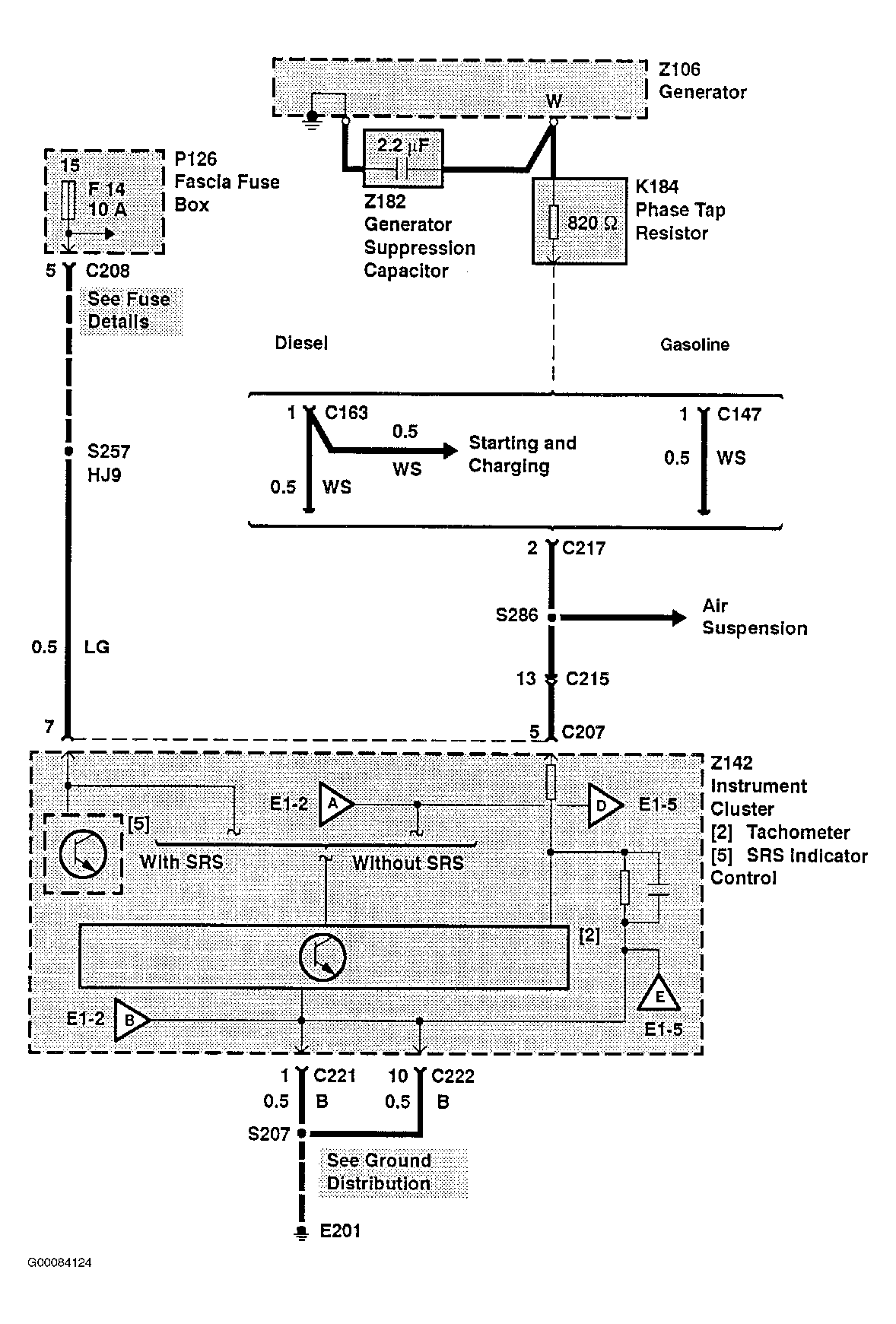

Fig 2: Instrument Panel Circuit Wiring Diagram (2 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

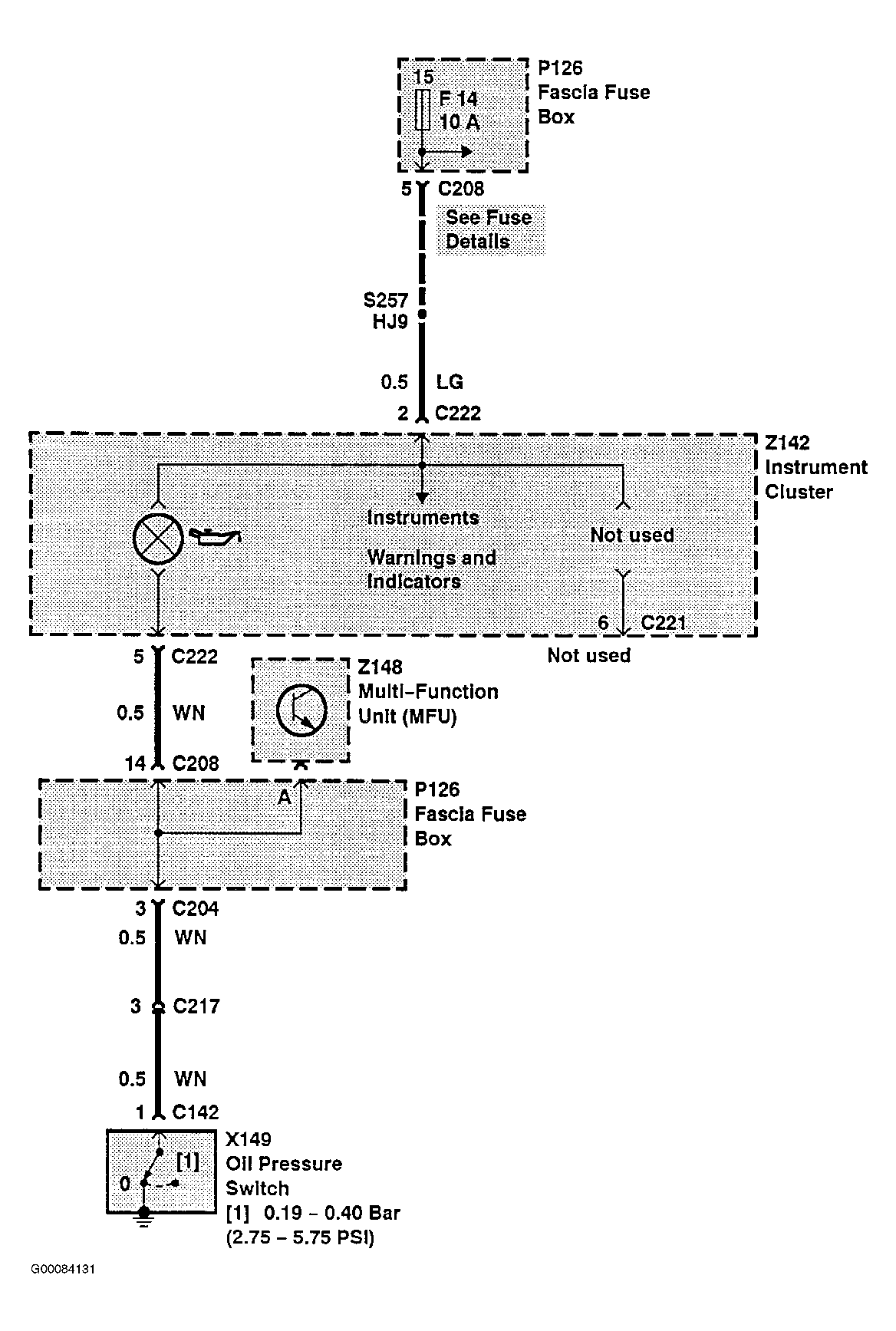

Fig 3: Instrument Panel Circuit Wiring Diagram (3 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

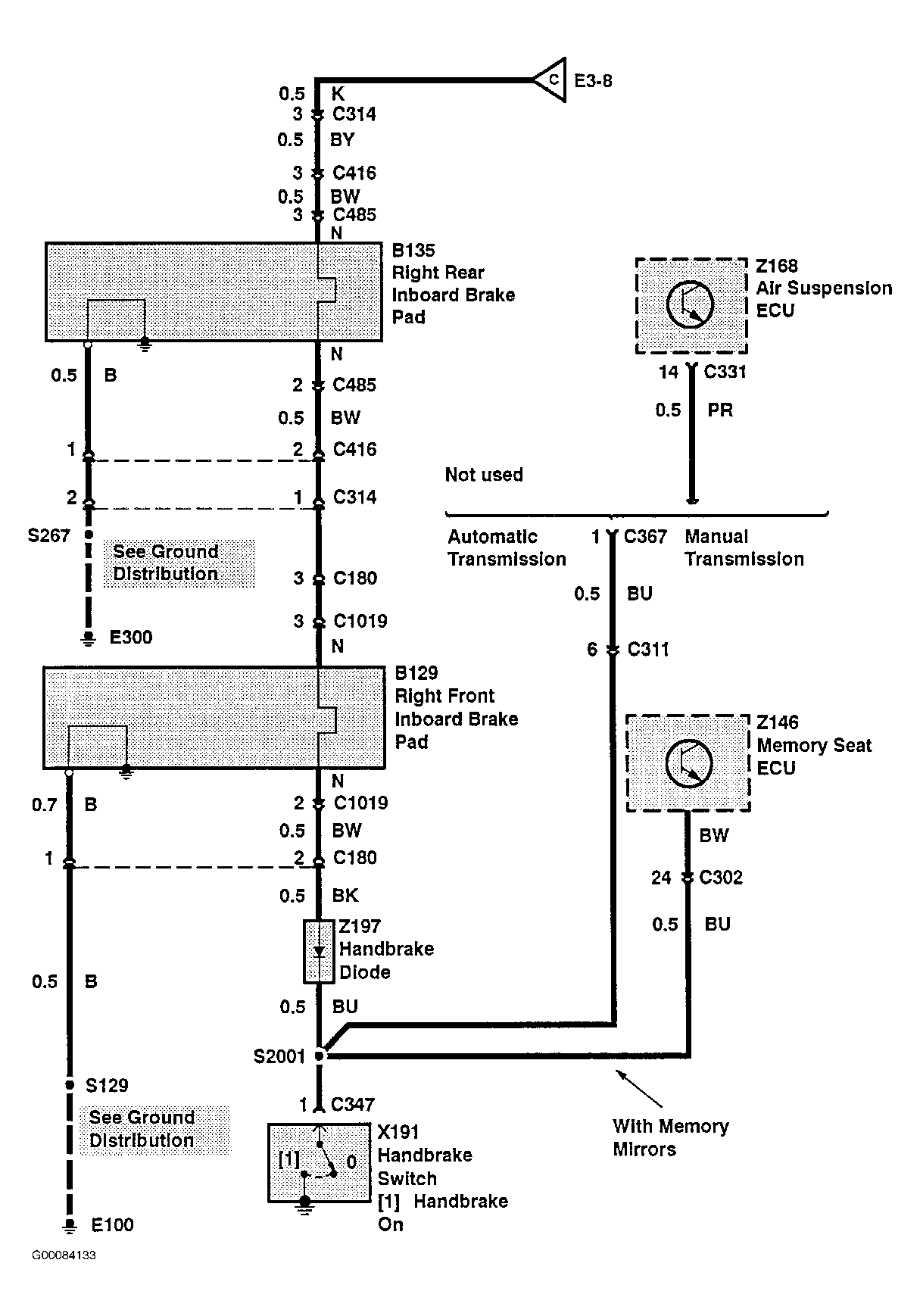

Fig 4: Instrument Panel Circuit Wiring Diagram (4 Of 4)

Courtesy of LAND ROVER NORTH AMERICA, INC.

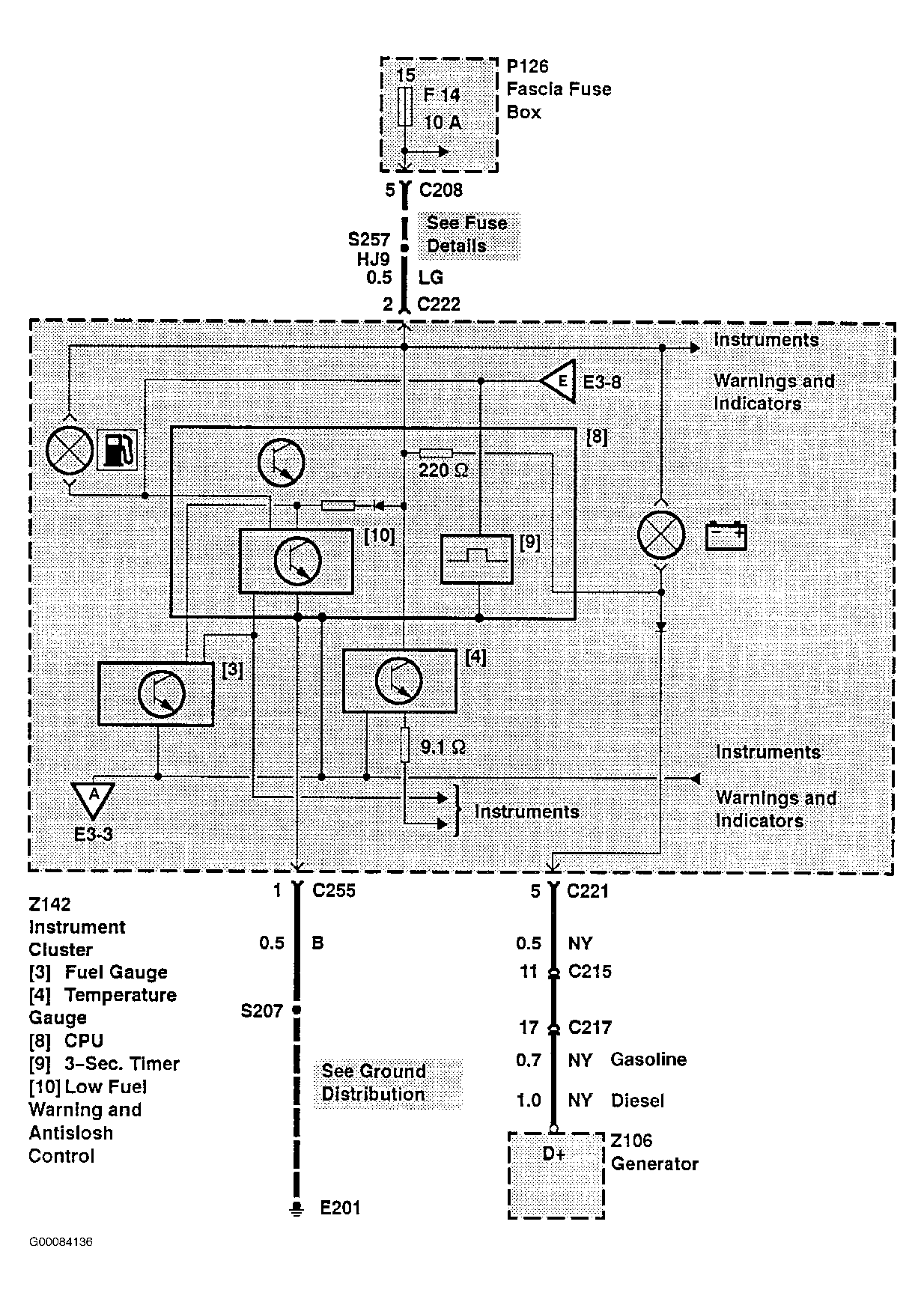

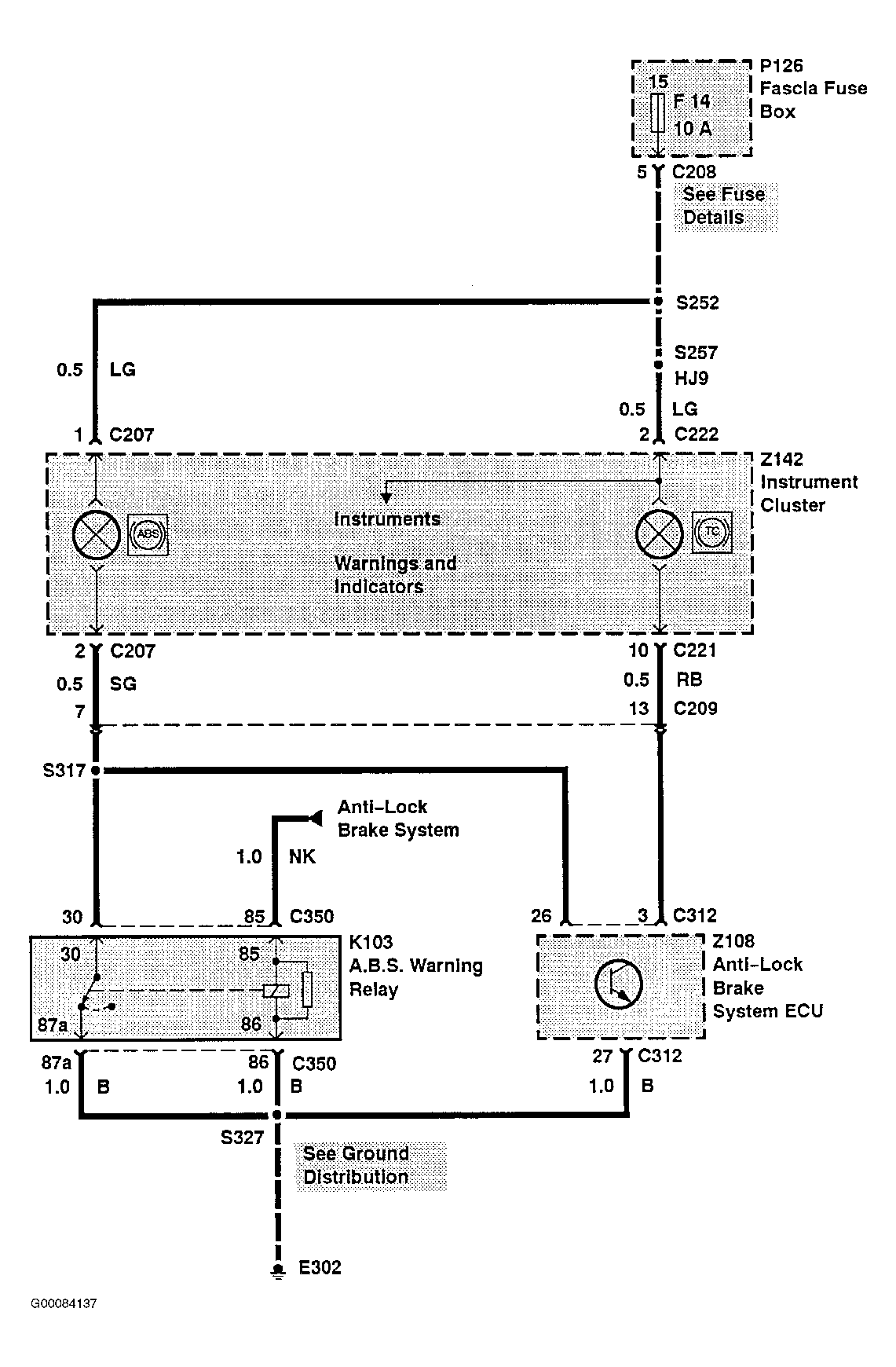

Fig 5: Warning Indicators Circuit Wiring Diagram (1 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

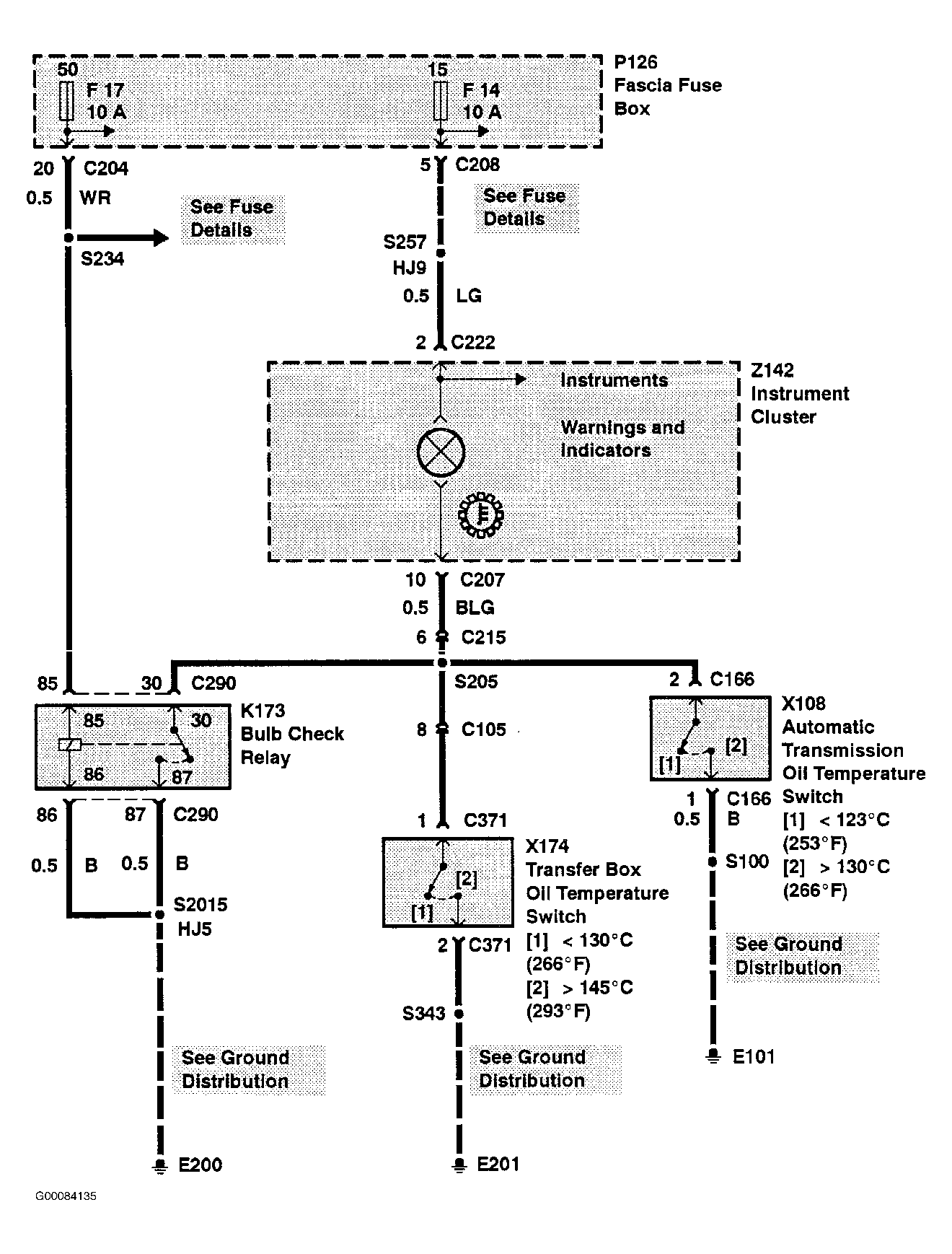

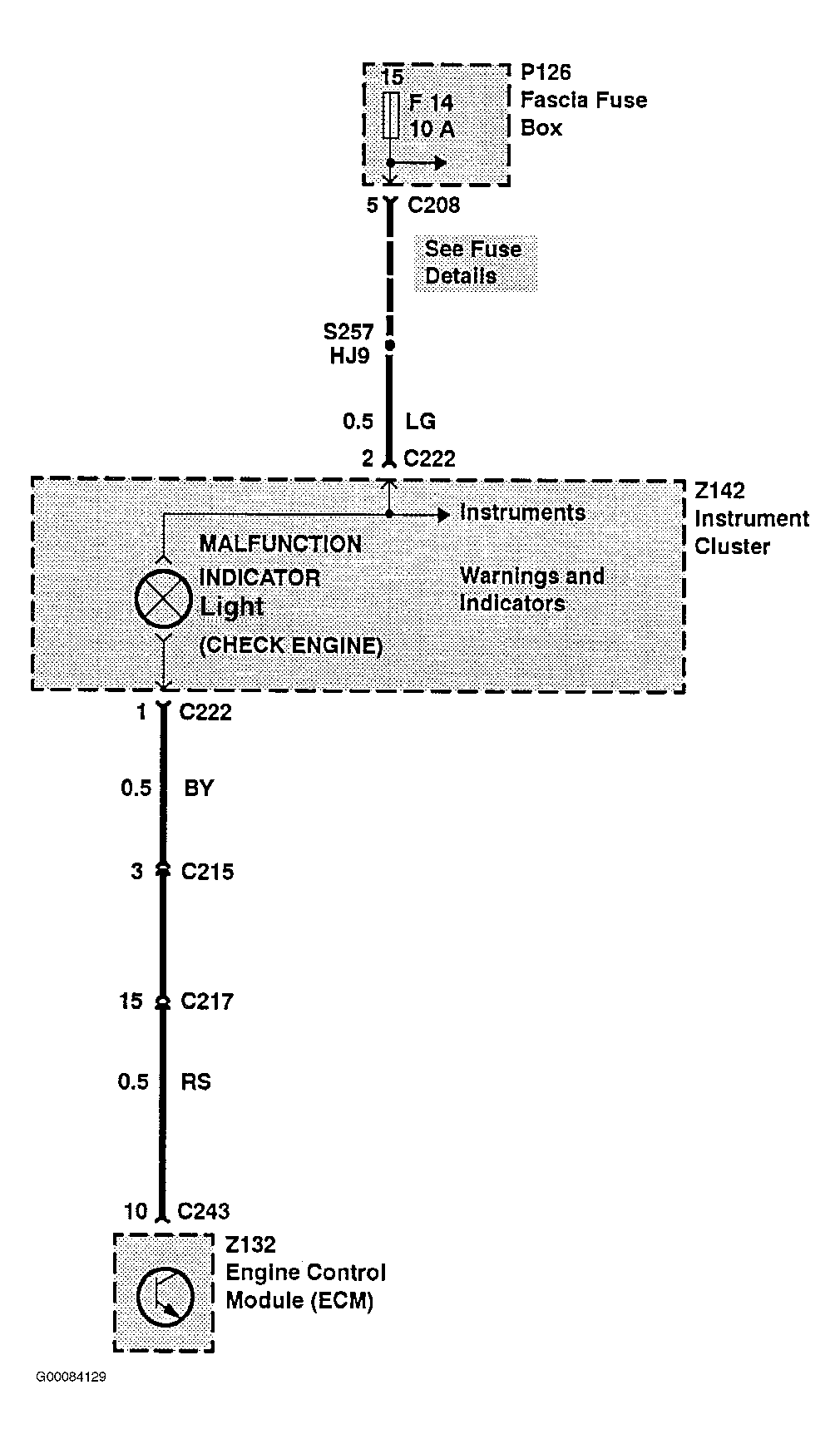

Fig 6: Warning Indicators Circuit Wiring Diagram (2 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

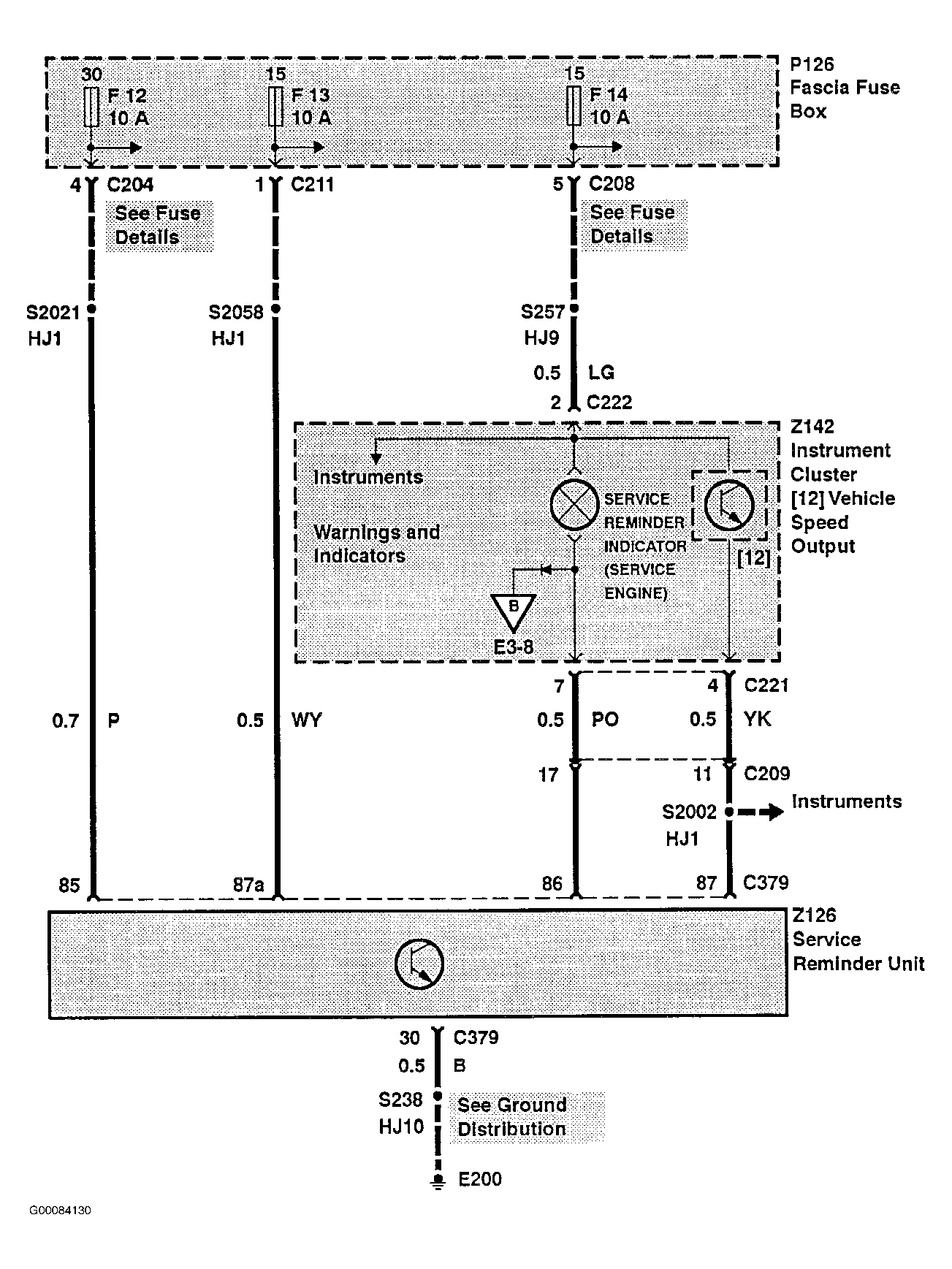

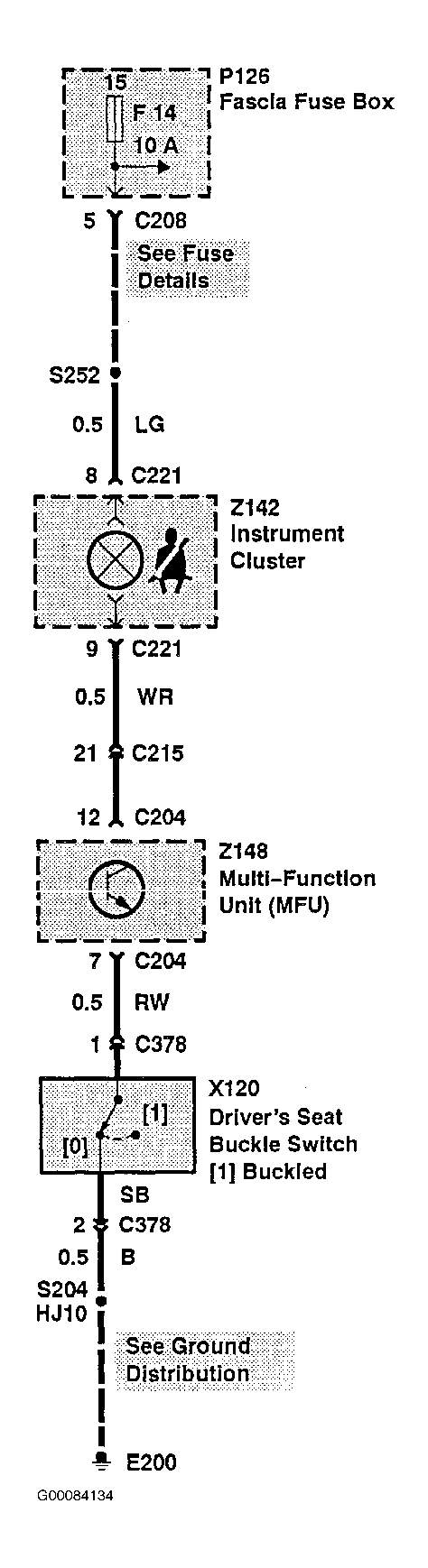

Fig 7: Warning Indicators Circuit Wiring Diagram (3 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

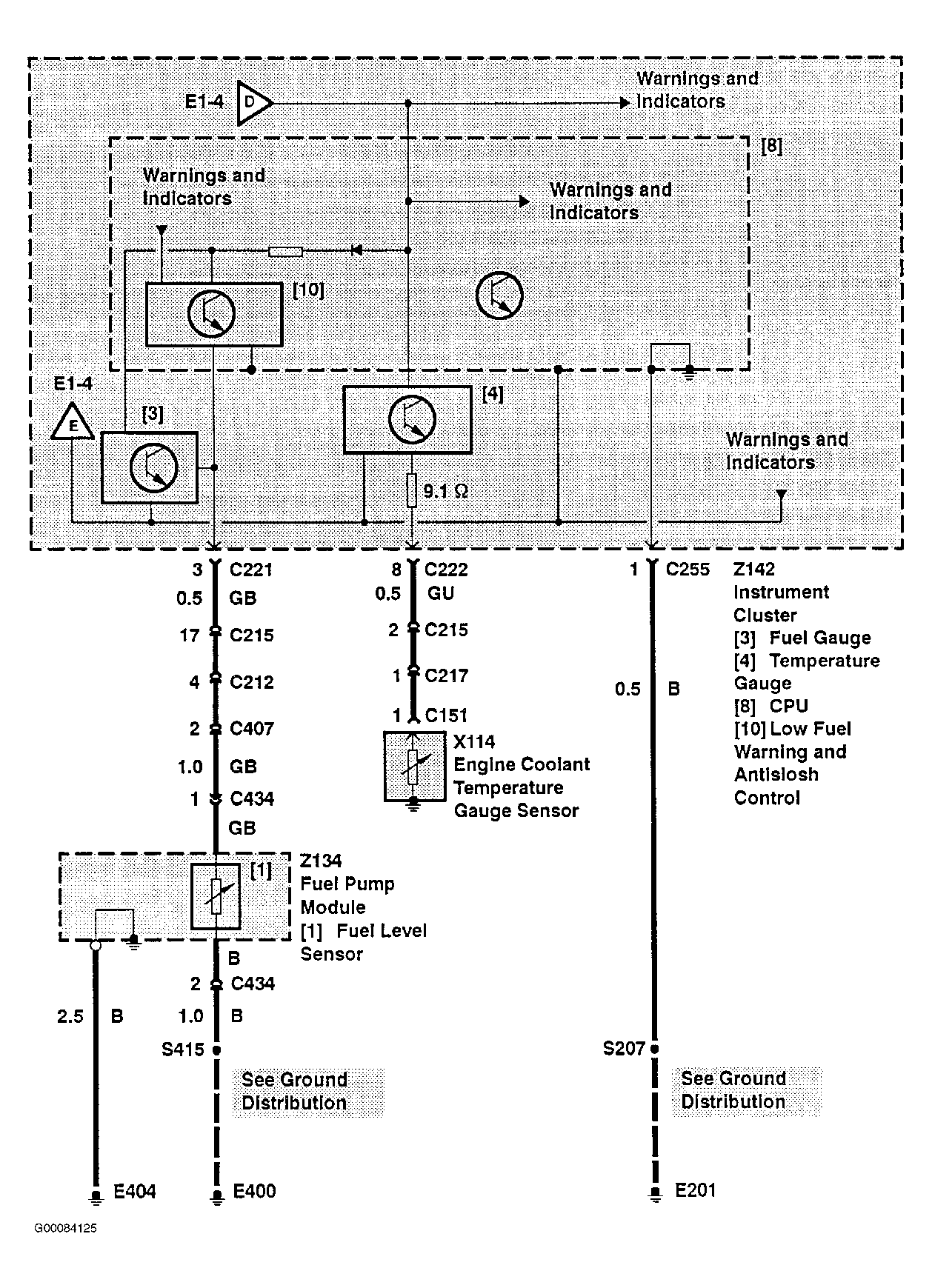

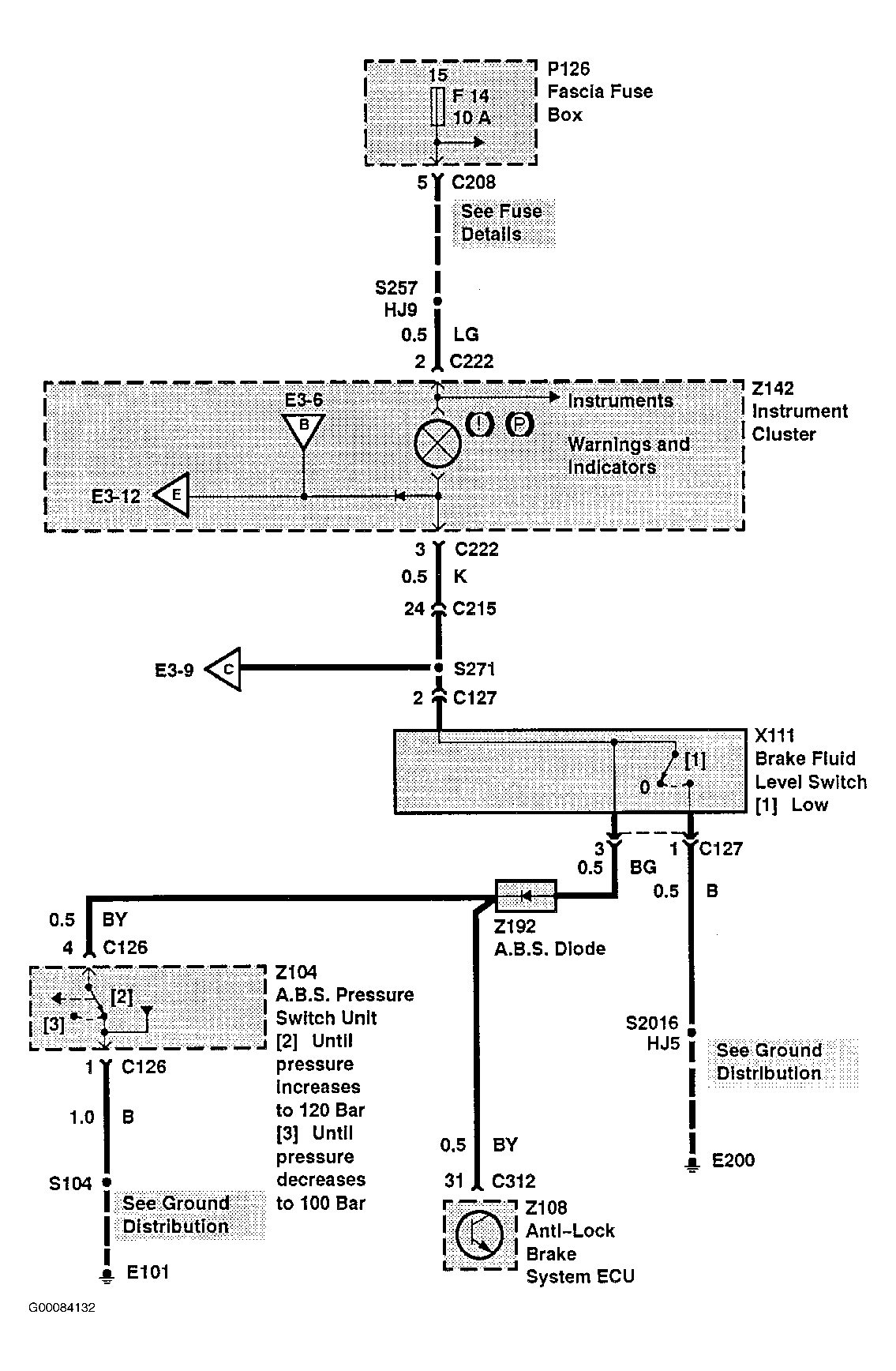

Fig 8: Warning Indicators Circuit Wiring Diagram (4 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

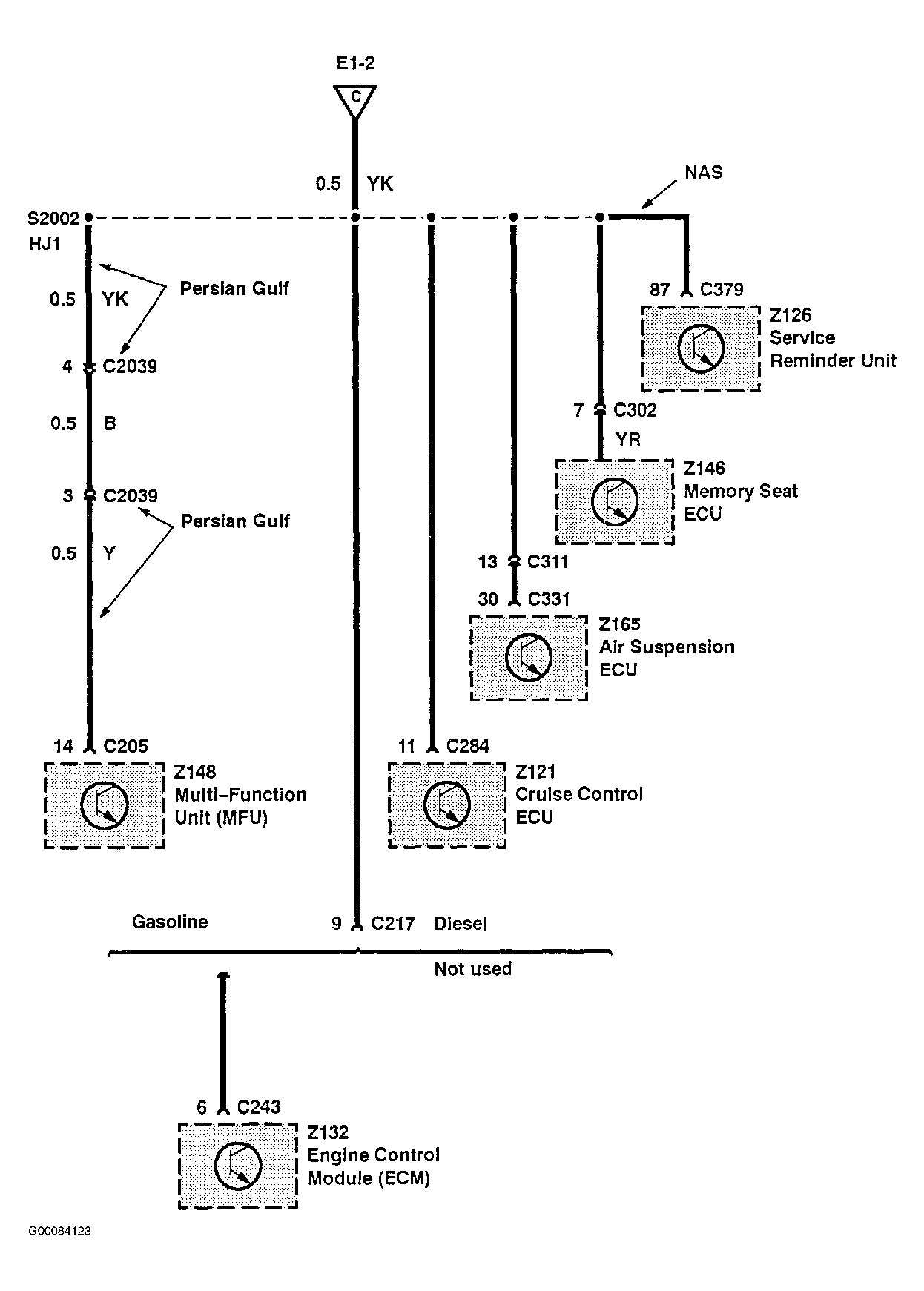

Fig 9: Warning Indicators Circuit Wiring Diagram (5 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

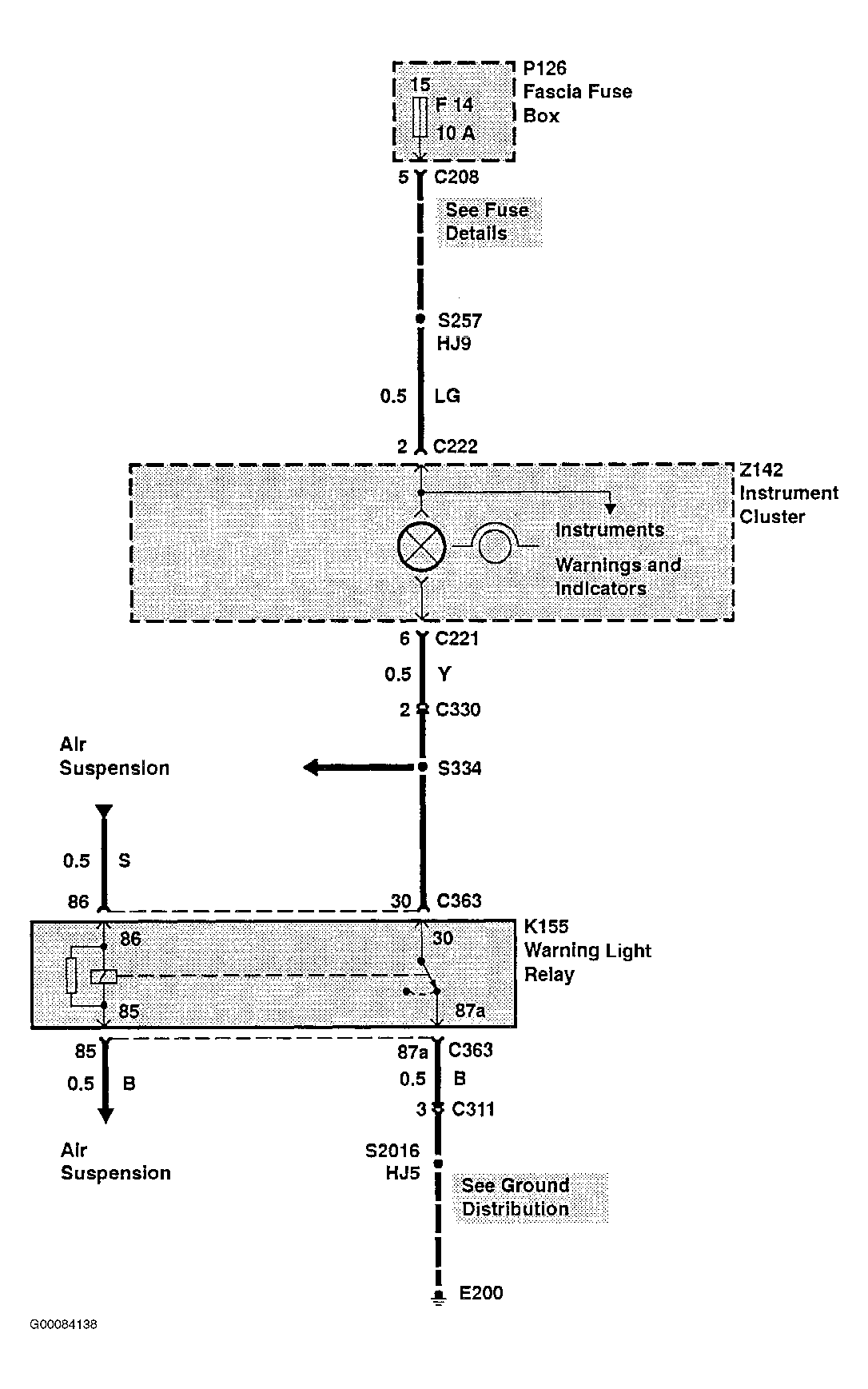

Fig 10: Warning Indicators Circuit Wiring Diagram (6 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 11: Warning Indicators Circuit Wiring Diagram (7 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 12: Warning Indicators Circuit Wiring Diagram (8 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 13: Warning Indicators Circuit Wiring Diagram (9 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 14: Warning Indicators Circuit Wiring Diagram (10 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 15: Warning Indicators Circuit Wiring Diagram (11 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 16: Warning Indicators Circuit Wiring Diagram (12 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.

Fig 17: Warning Indicators Circuit Wiring Diagram (13 Of 13)

Courtesy of LAND ROVER NORTH AMERICA, INC.
