Test I: Fasten Seat Belt Indicator Does Not Operate With Ignition On

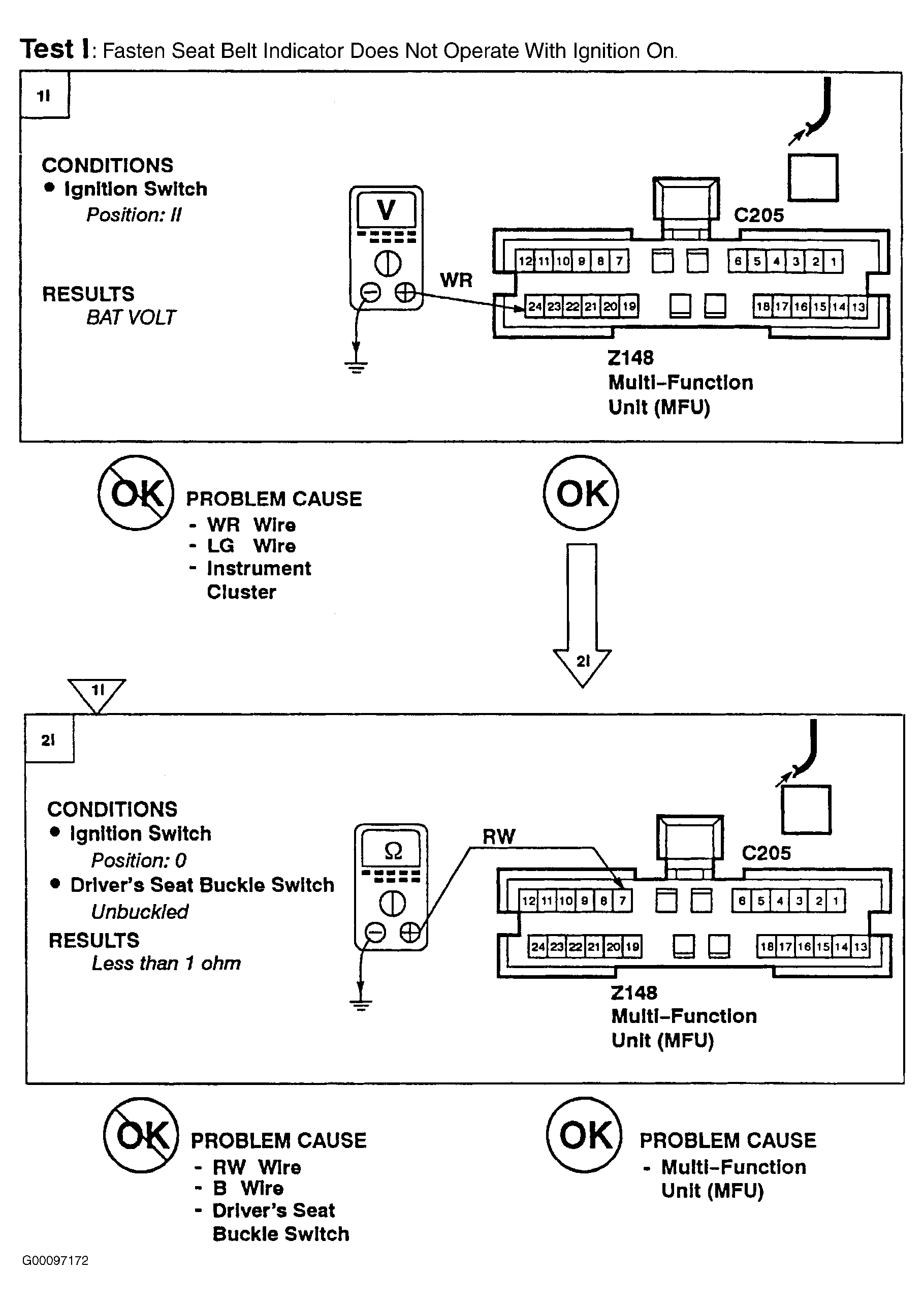

Fig 1: Test I: Fasten Seat Belt Indicator Does Not Operate With Ignition On

G00097172

Courtesy of LAND ROVER NORTH AMERICA, INC.
