Test E: Brake Warning Light Does Not Operate With Abs Problem

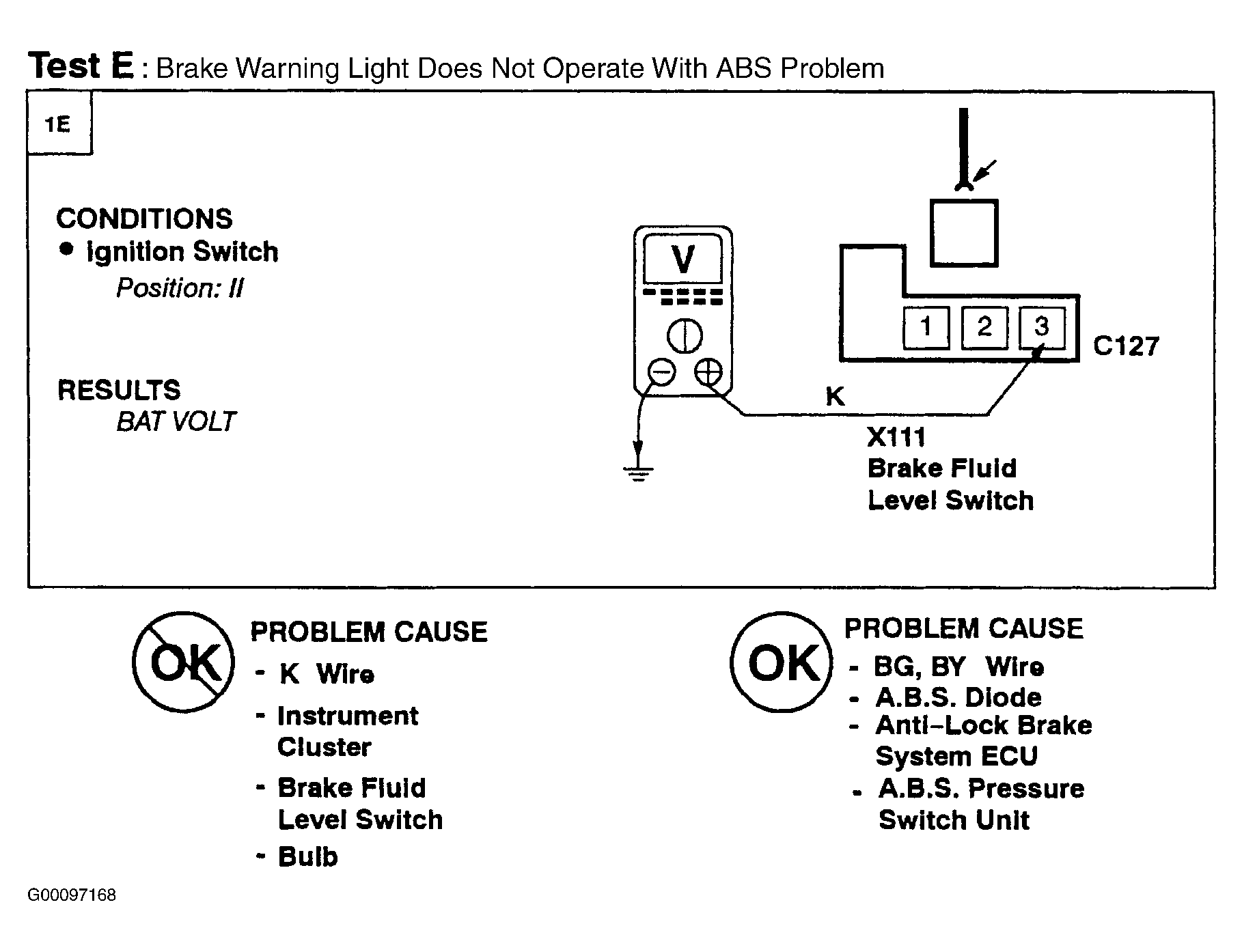

Fig 1: Test E: Brake Warning Light Does Not Operate With ABS Problem

G00097168

Courtesy of LAND ROVER NORTH AMERICA, INC.
