Land Rover
>>
1995
>>
Defender 90
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panels - 3.9L & 4.2L
>>
System Tests (Instrument Panel)
>>
Test E: Tachometer Does Not Operate
Test E: Tachometer Does Not Operate

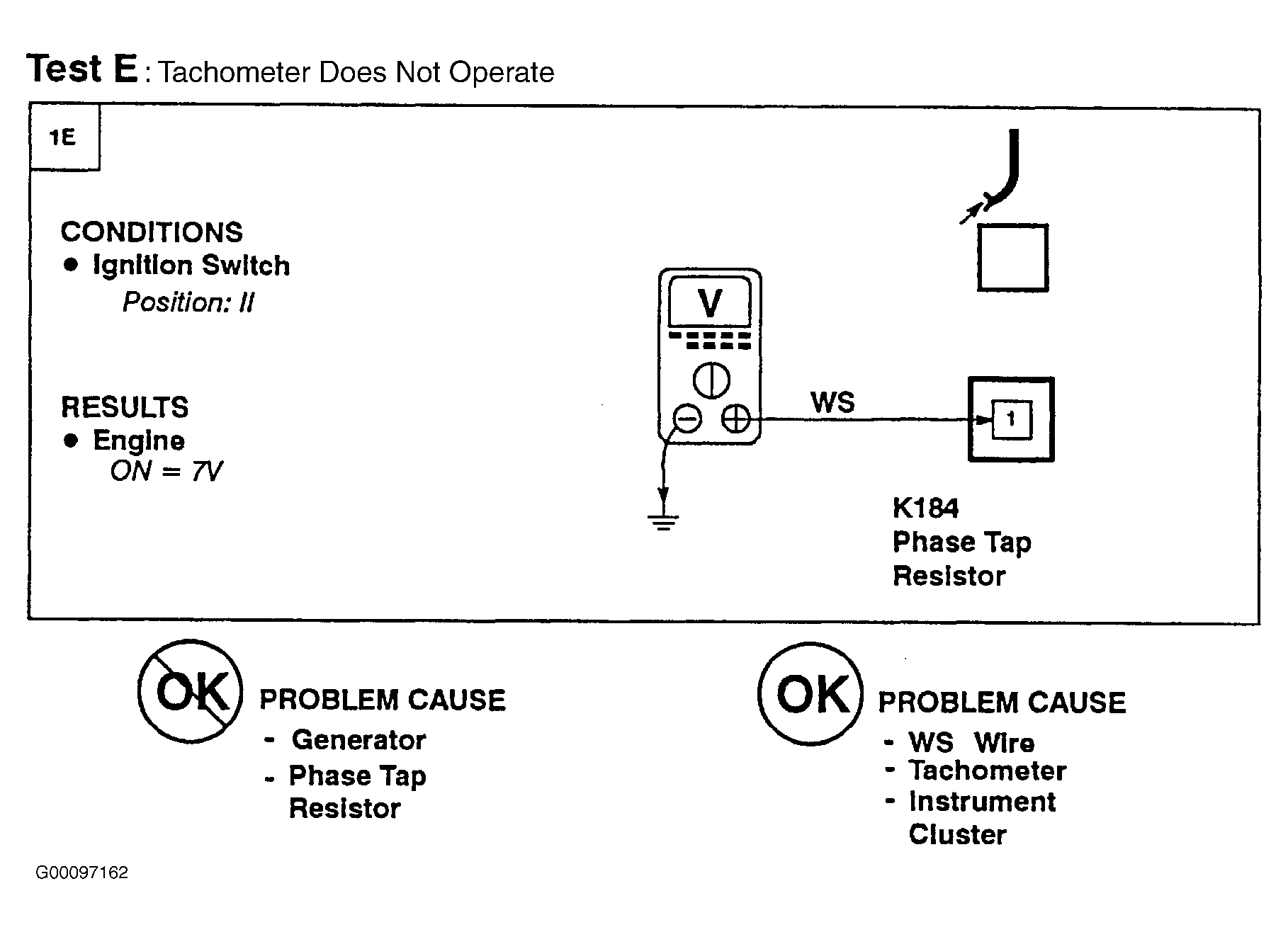

Fig 1: Test E: Tachometer Does Not Operate
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
