Removal (Illumination Board)

  1. Release the bulb holder wires from the clip. See Fig 1 .
  2. Remove the screw securing the illumination board to the cowl and remove the board.

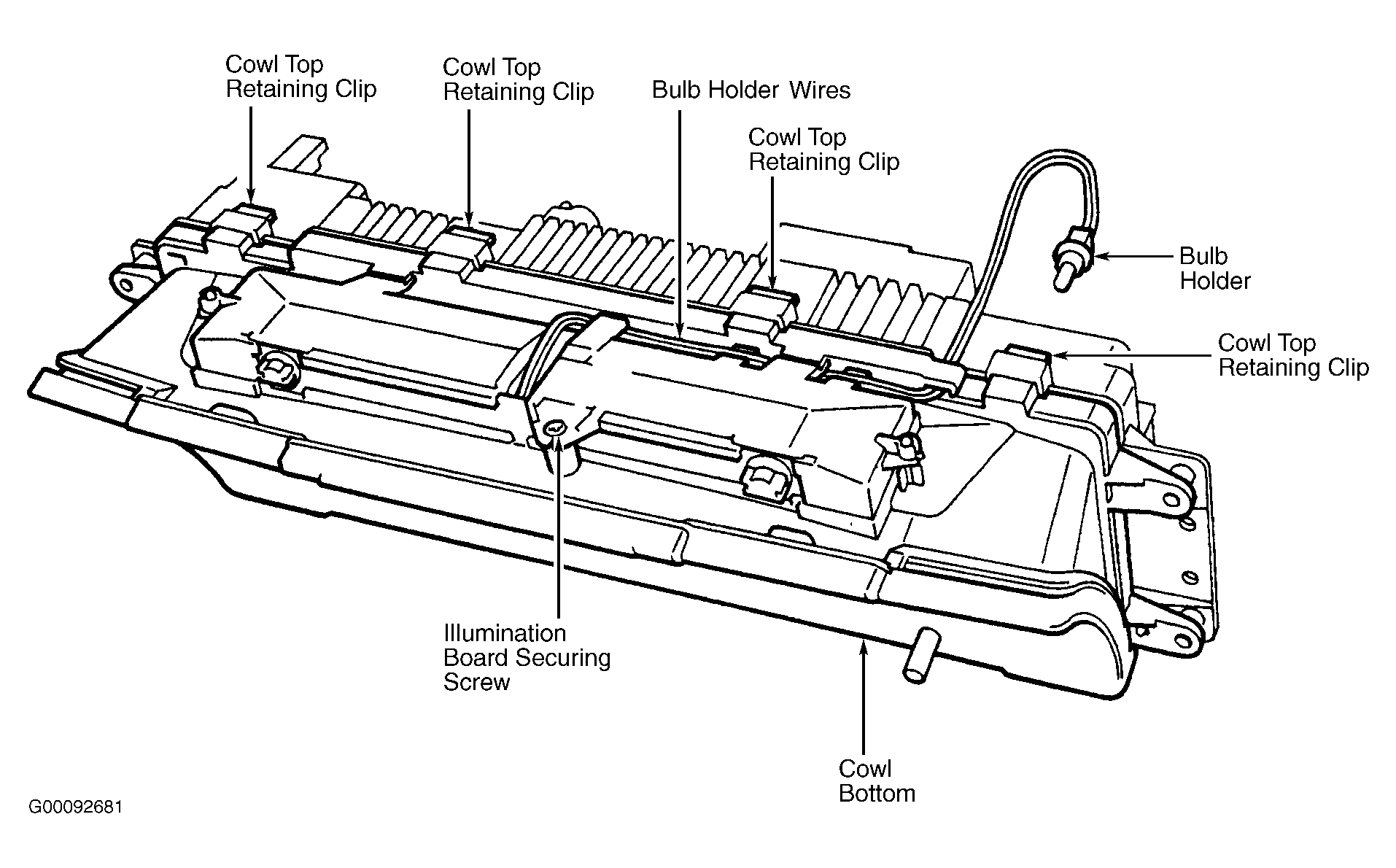

Fig 1: Removing Instrument Cowl & Illumination Board
G00092681Courtesy of LAND ROVER NORTH AMERICA, INC.
