Land Rover
>>
1995
>>
Defender 90
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Instrument Panels - 3.9L & 4.2L
>>
Component Locations
Component Locations

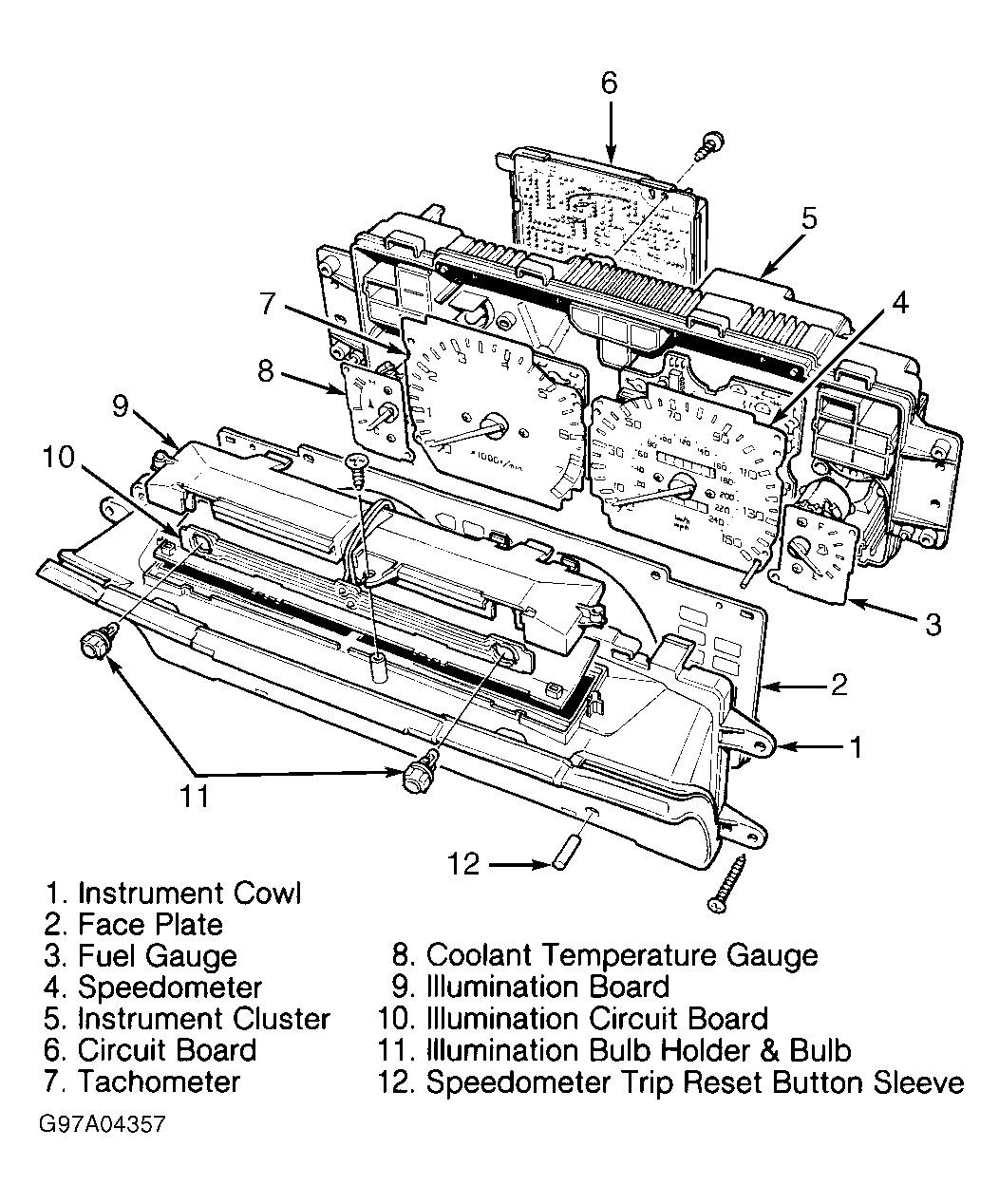

Fig 1: Exploded View Of Instrument Cluster
Courtesy of LAND ROVER NORTH AMERICA, INC.

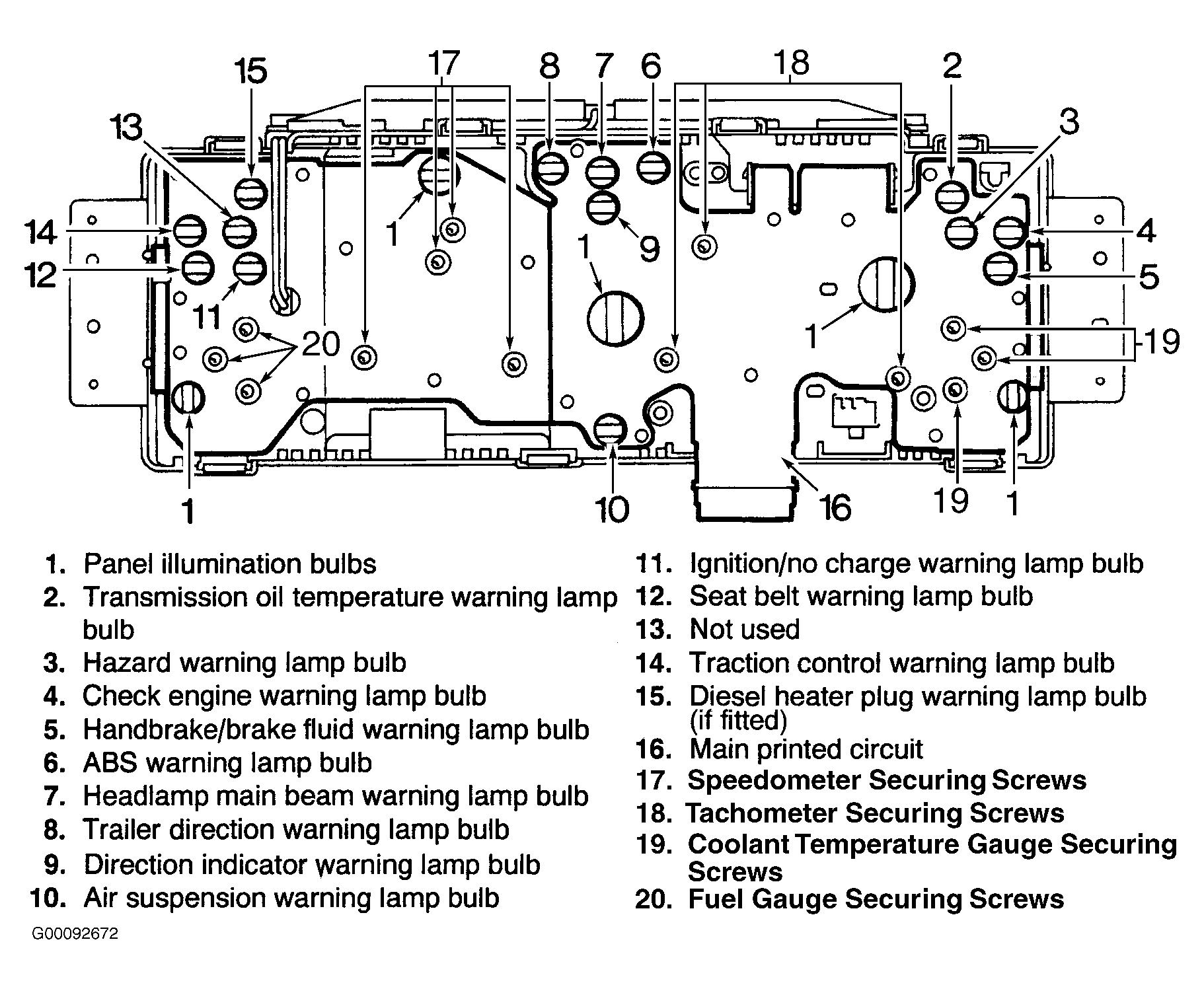

Fig 2: Identifying Instrument Cluster Rear Components
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
Courtesy of LAND ROVER NORTH AMERICA, INC.
