Wiring Diagrams

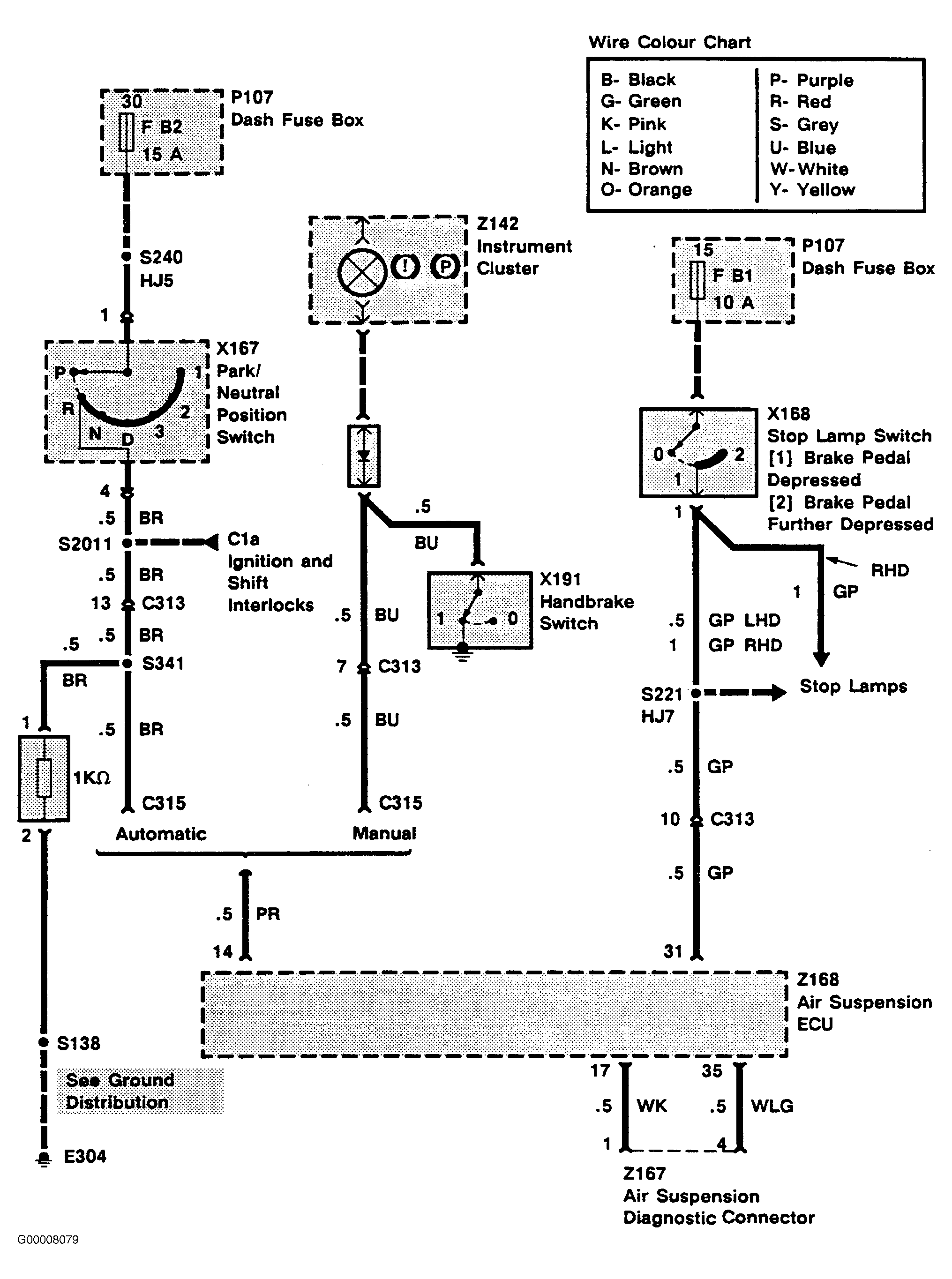

Fig 1: Electronic Air Suspension System Wiring Diagram (1 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

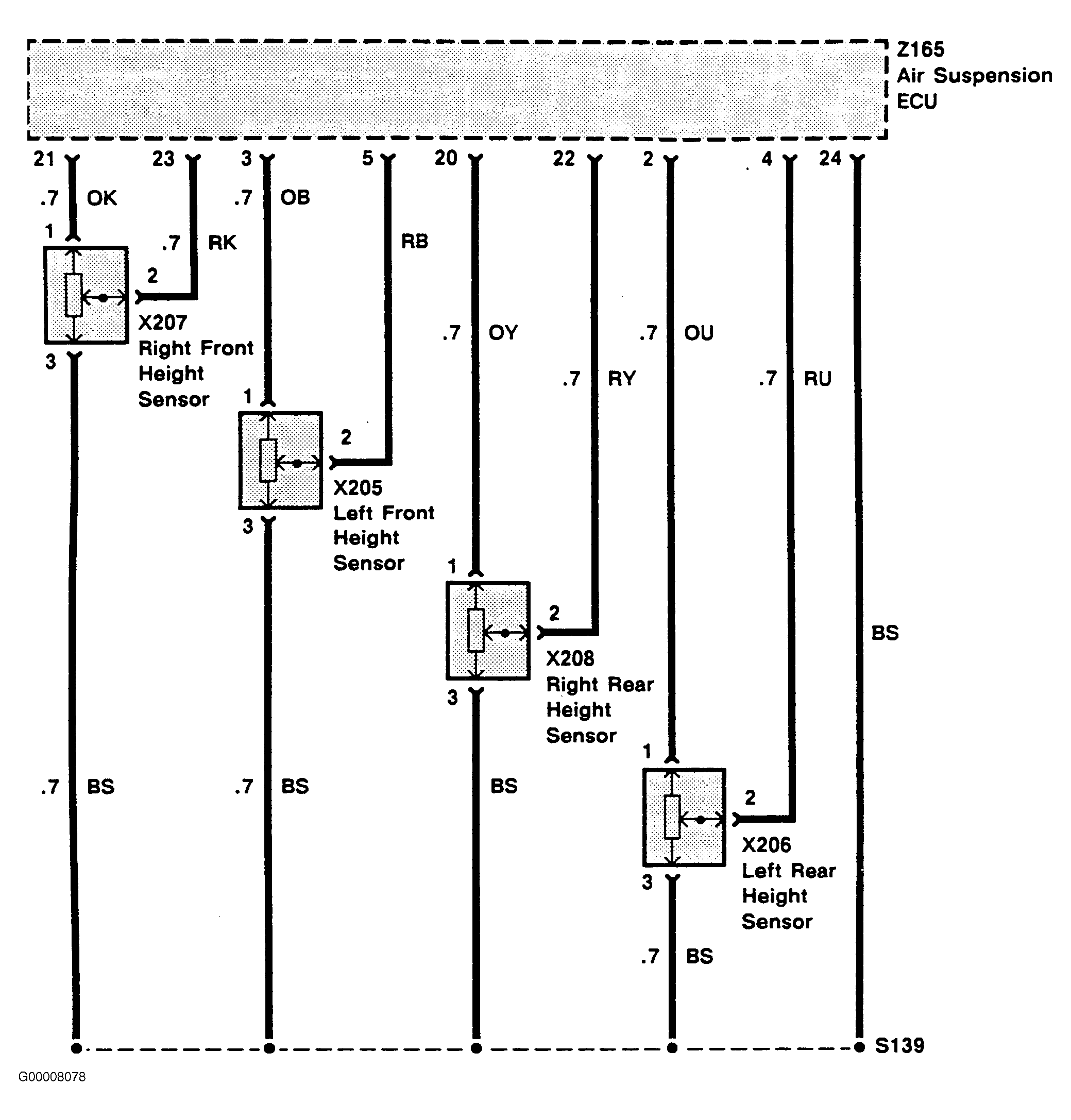

Fig 2: Electronic Air Suspension System Wiring Diagram (2 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

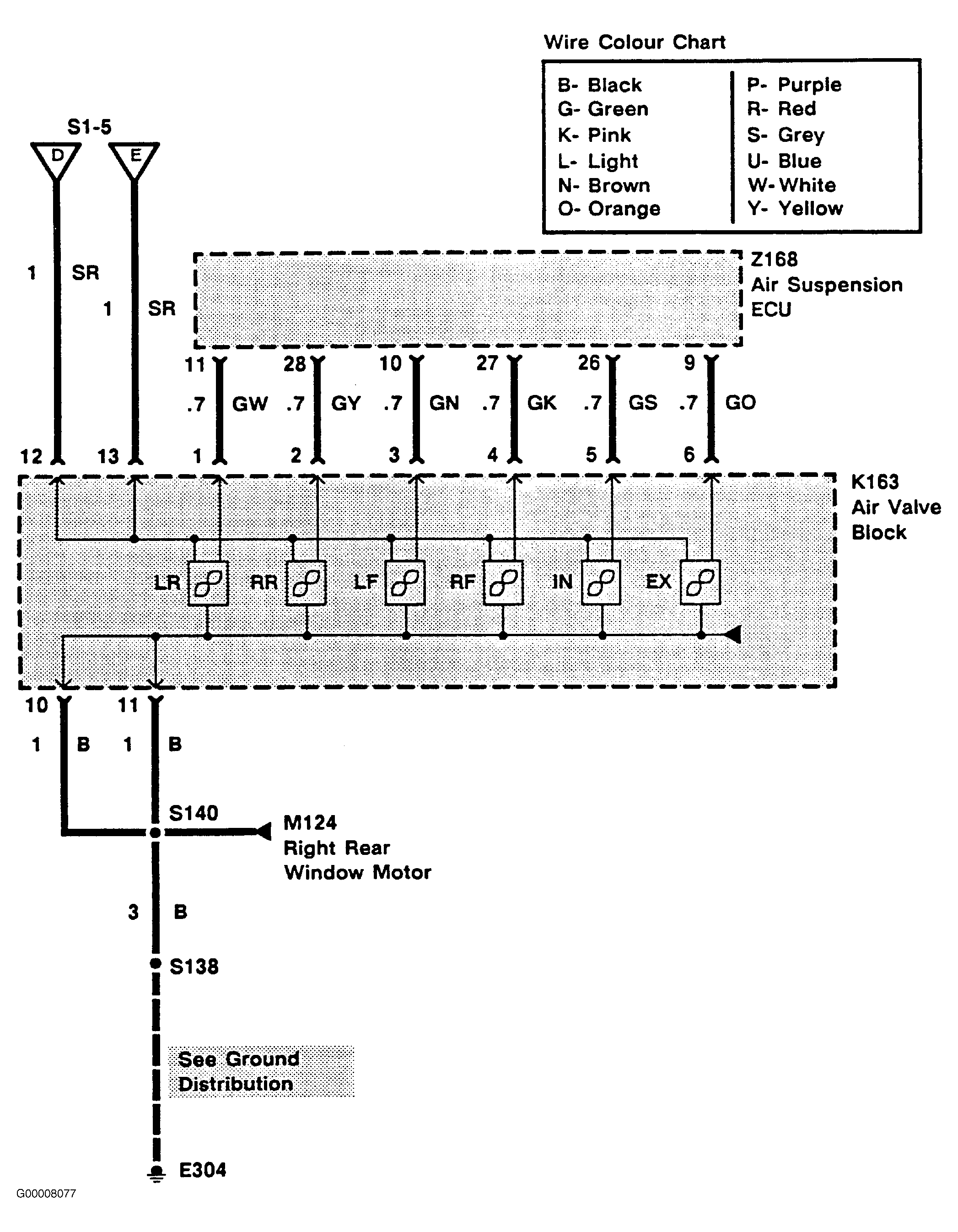

Fig 3: Electronic Air Suspension System Wiring Diagram (3 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

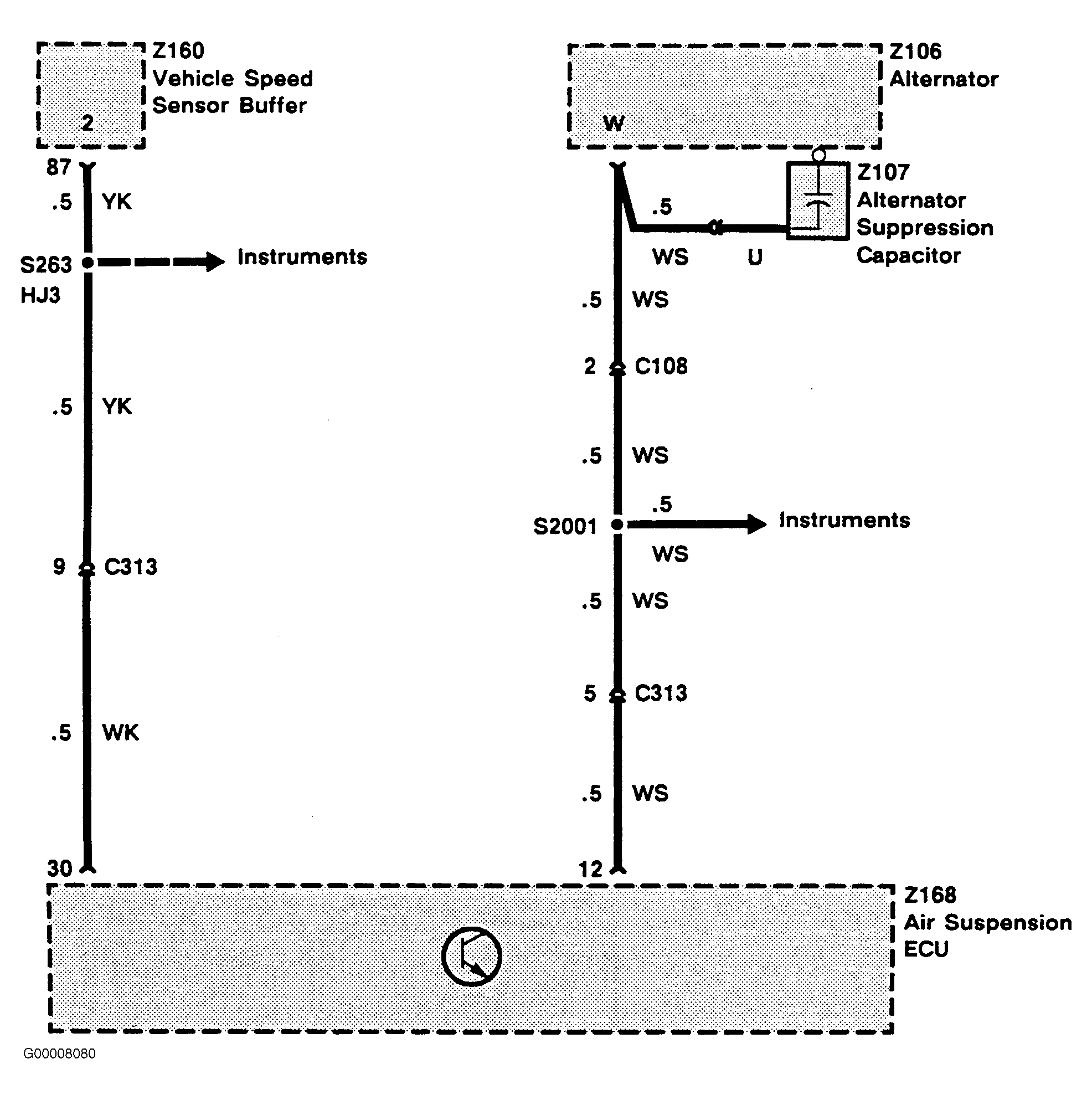

Fig 4: Electronic Air Suspension System Wiring Diagram (4 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

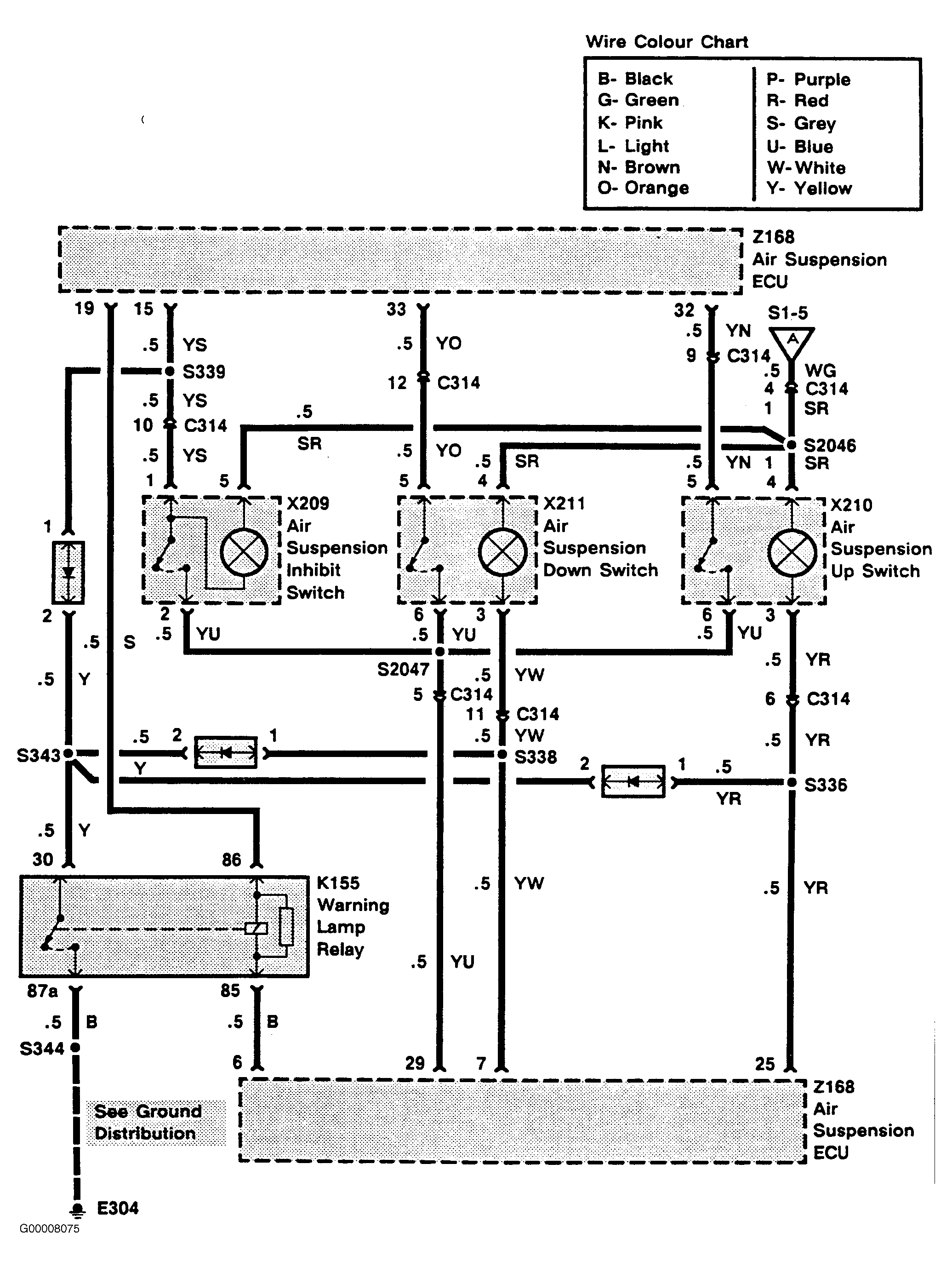

Fig 5: Electronic Air Suspension System Wiring Diagram (5 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

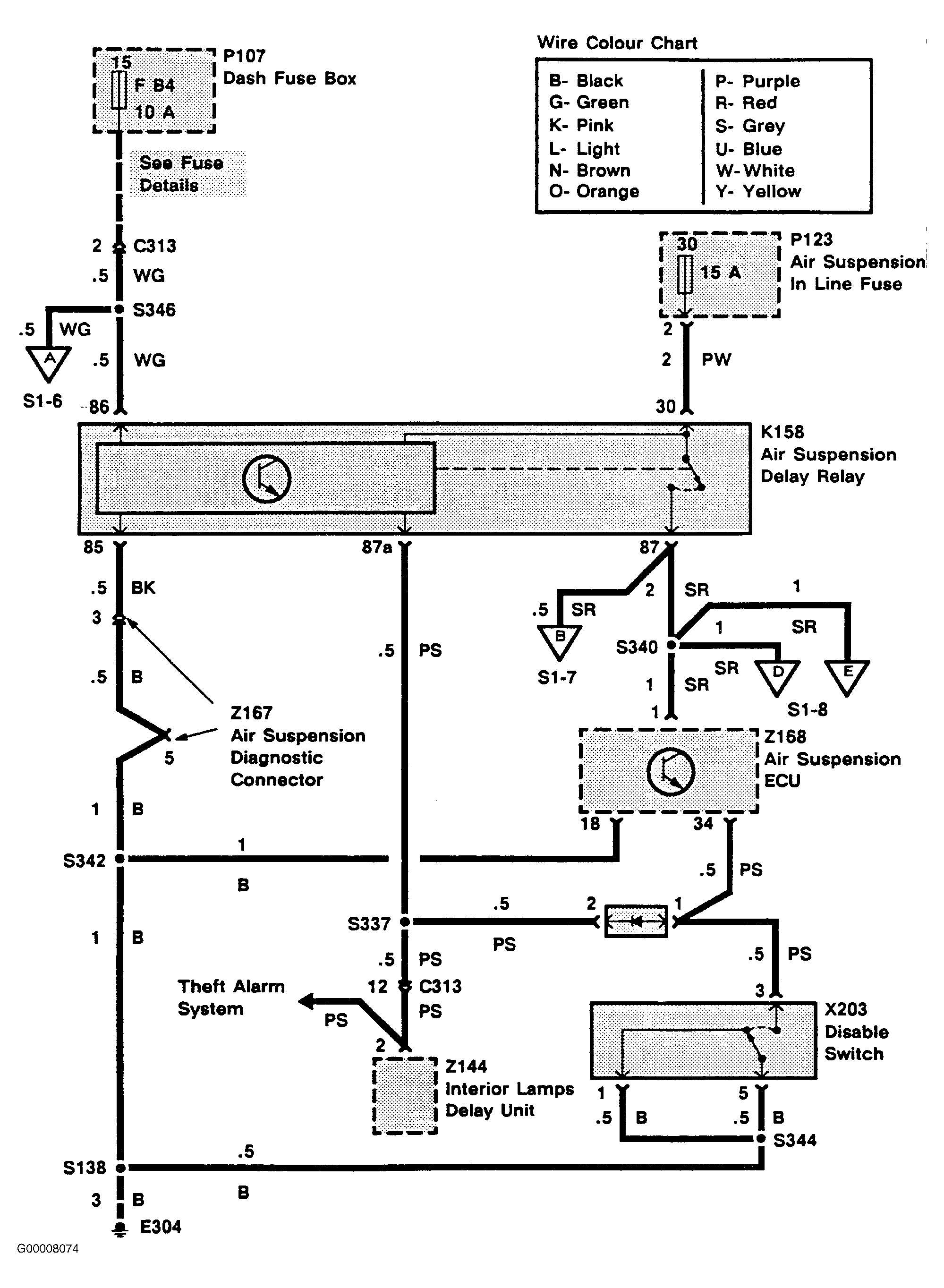

Fig 6: Electronic Air Suspension System Wiring Diagram (6 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.

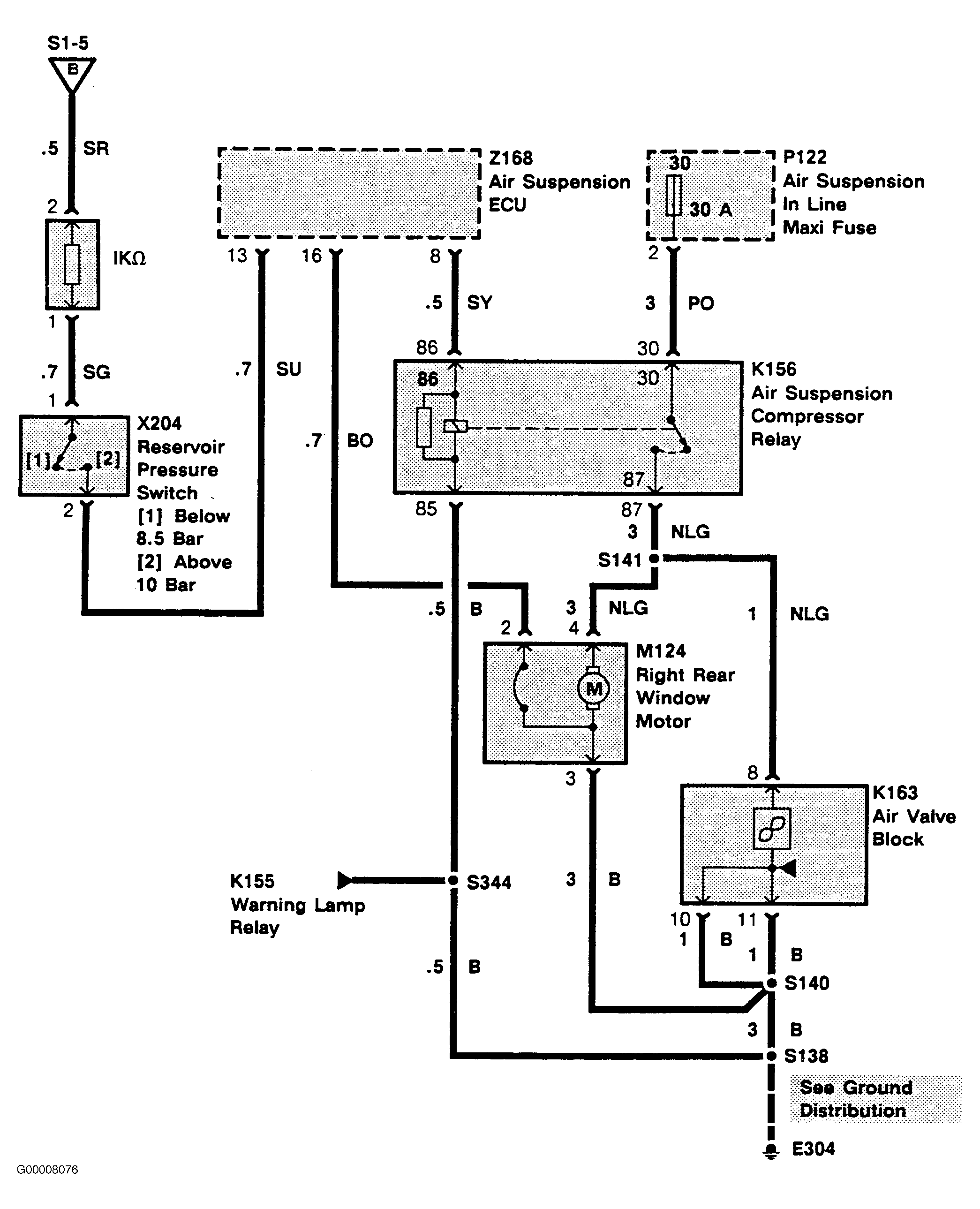

Fig 7: Electronic Air Suspension System Wiring Diagram (7 Of 7)

Courtesy of LAND ROVER NORTH AMERICA, INC.
