Test Y: Air Suspension System Will Not Raise When Requested By Driver

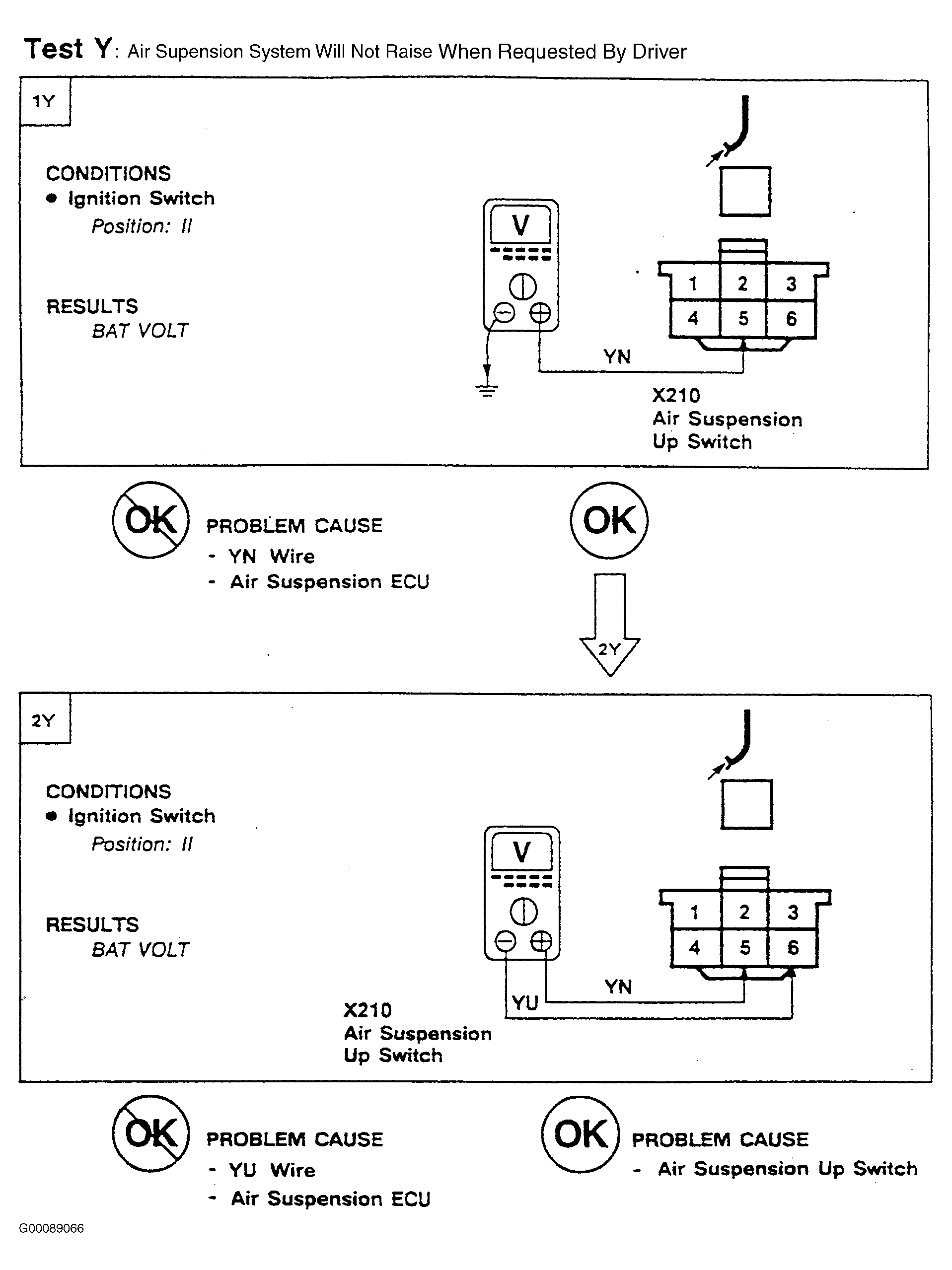

Fig 1: Test Y: Air Suspension System Will Not Raise When Requested By Driver

G00089066

Courtesy of LAND ROVER NORTH AMERICA, INC.
