Test X: Air Suspension System Does Not Lower When Requested By Driver

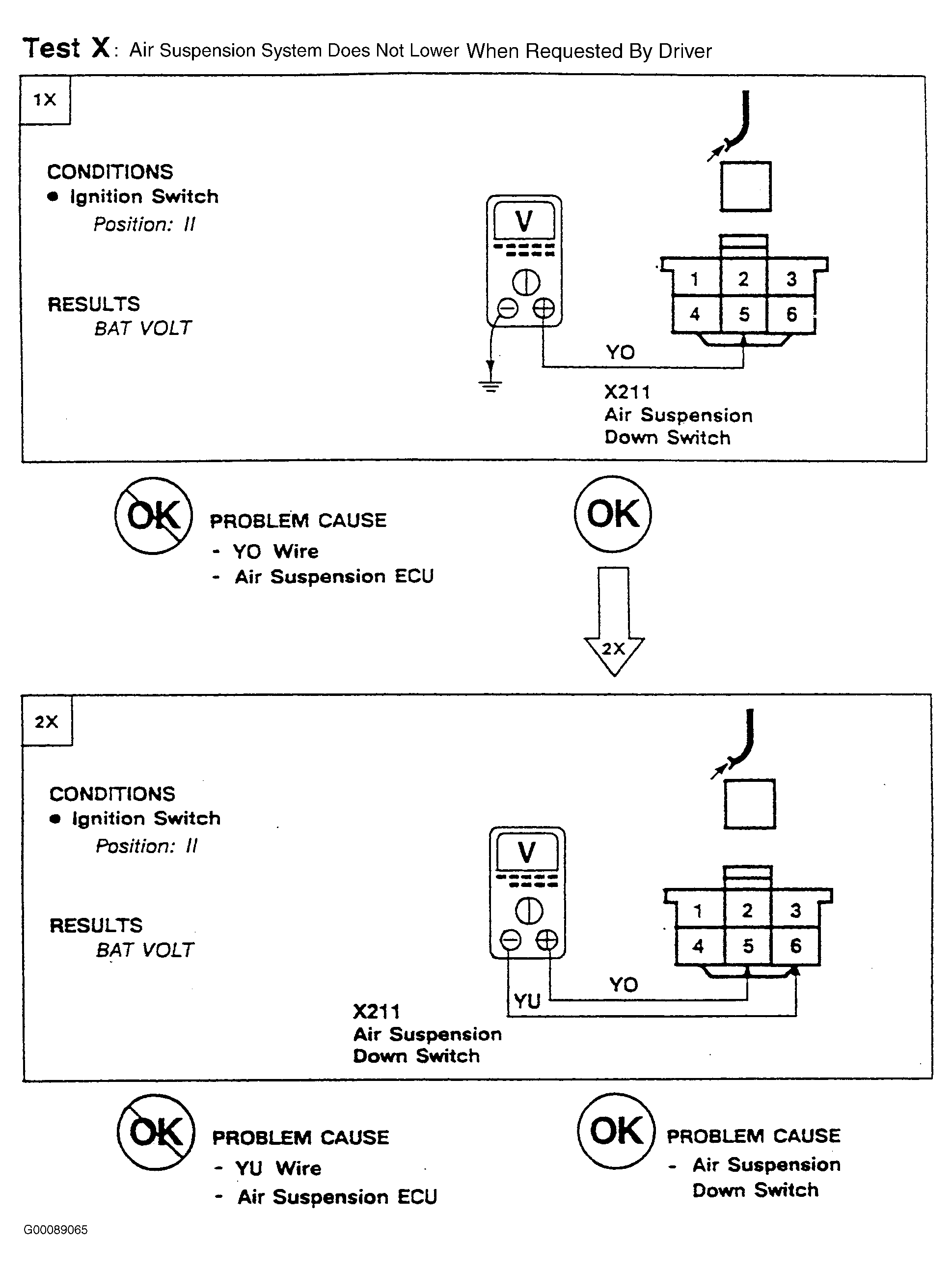

Fig 1: Test X: Air Suspension System Does Not Lower When Requested By Driver

G00089065

Courtesy of LAND ROVER NORTH AMERICA, INC.
