Test Ee: No Warning Lamps Illuminate When System Disabled

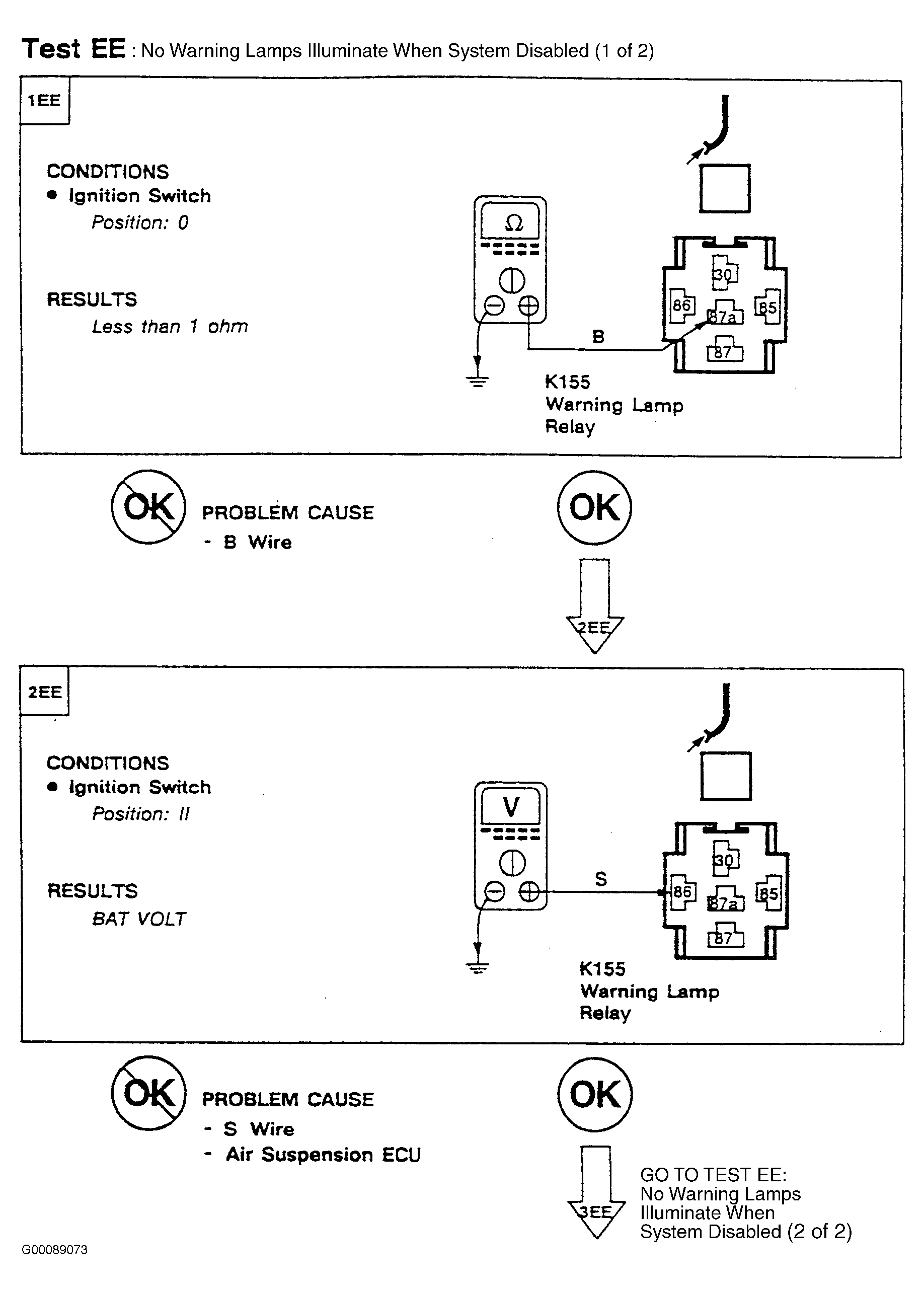

Fig 1: Test EE: No Warning Lamps Illuminate When System Disabled (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

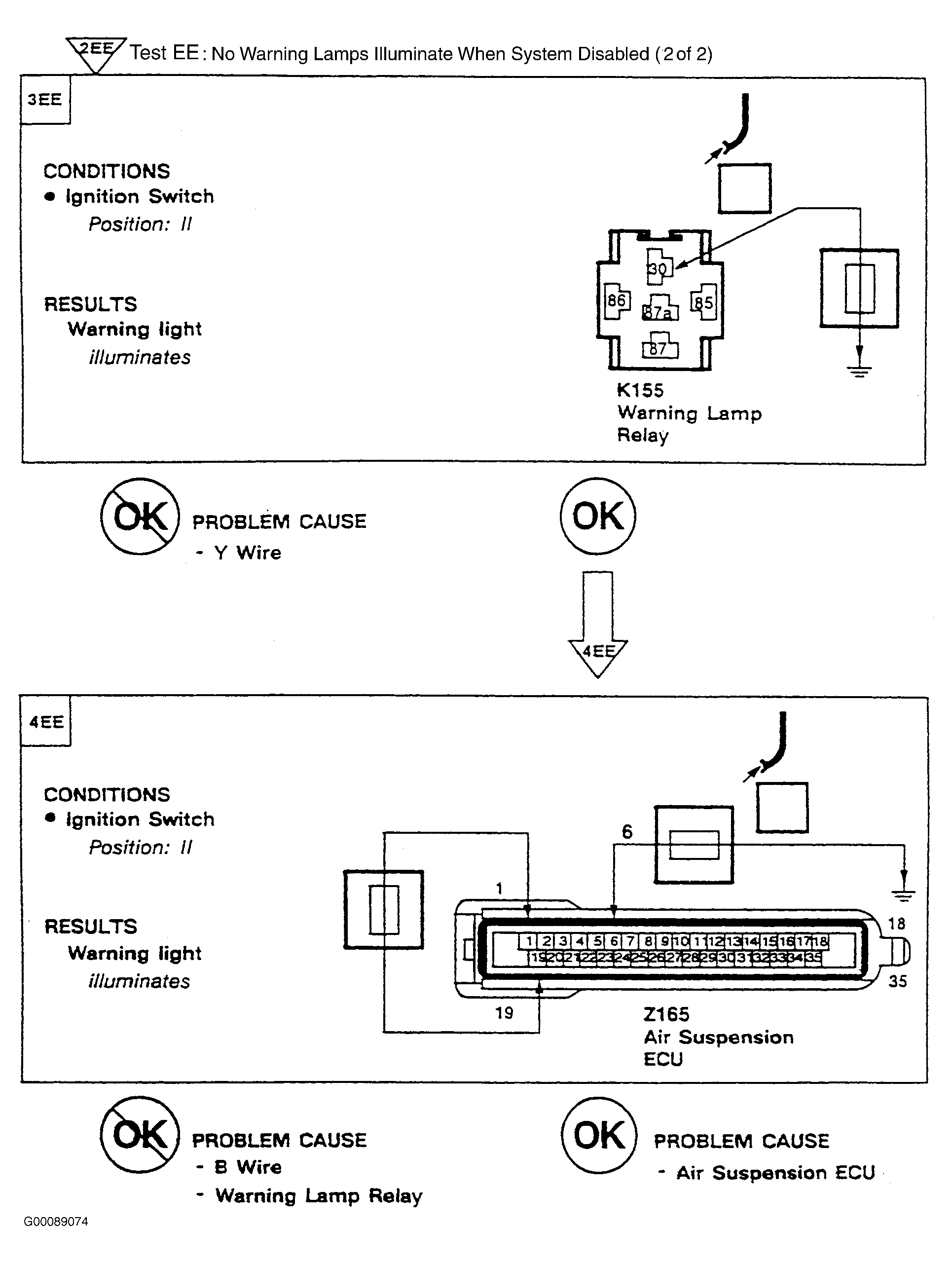

Fig 2: Test EE: No Warning Lamps Illuminate When System Disabled (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
