Test Dd: Air Suspension Compressor Cycles On & Off Frequently Or Runs All The Time

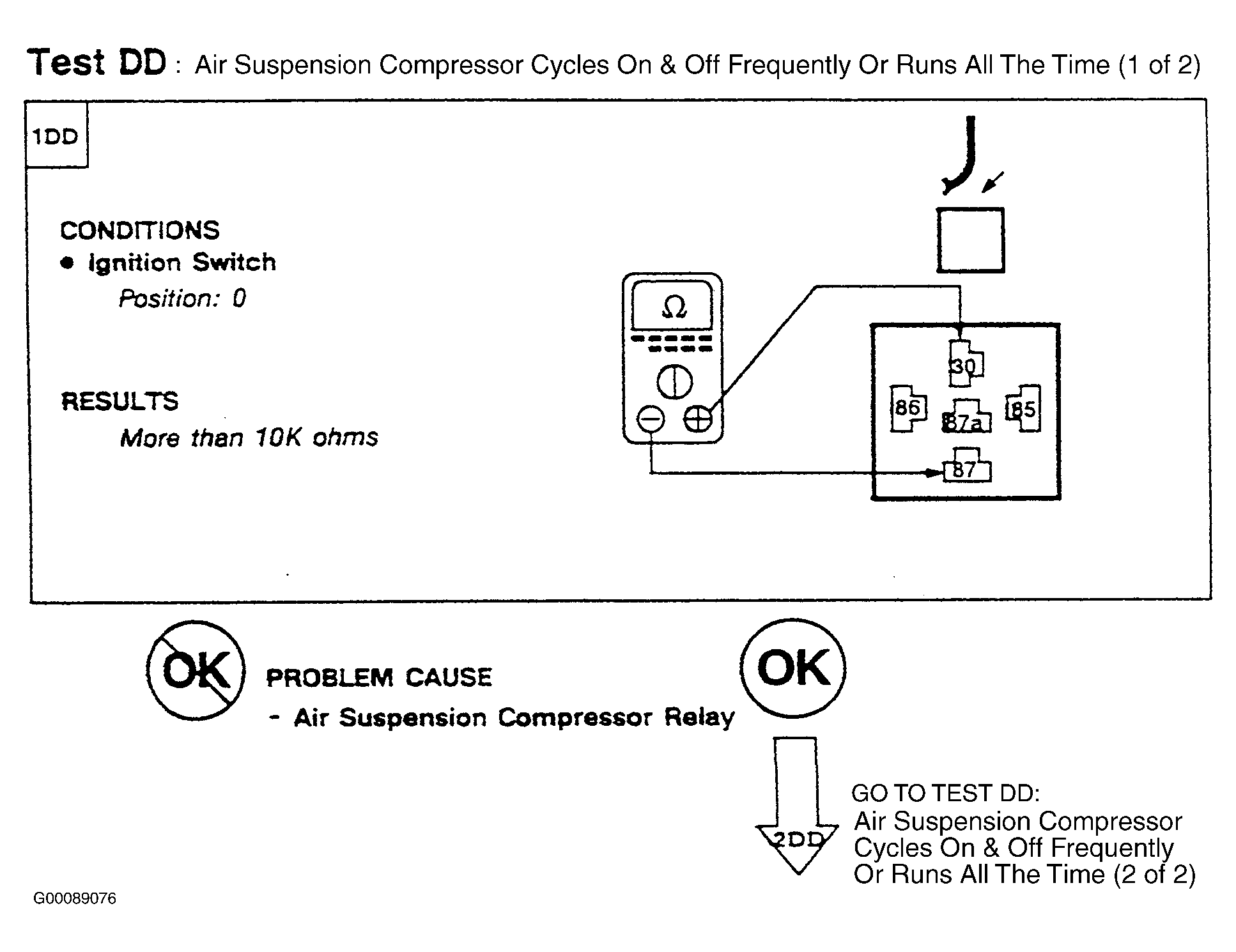

Fig 1: Test DD: Air Suspension Compressor Cycles On & Off Frequently Or Runs All The Time (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

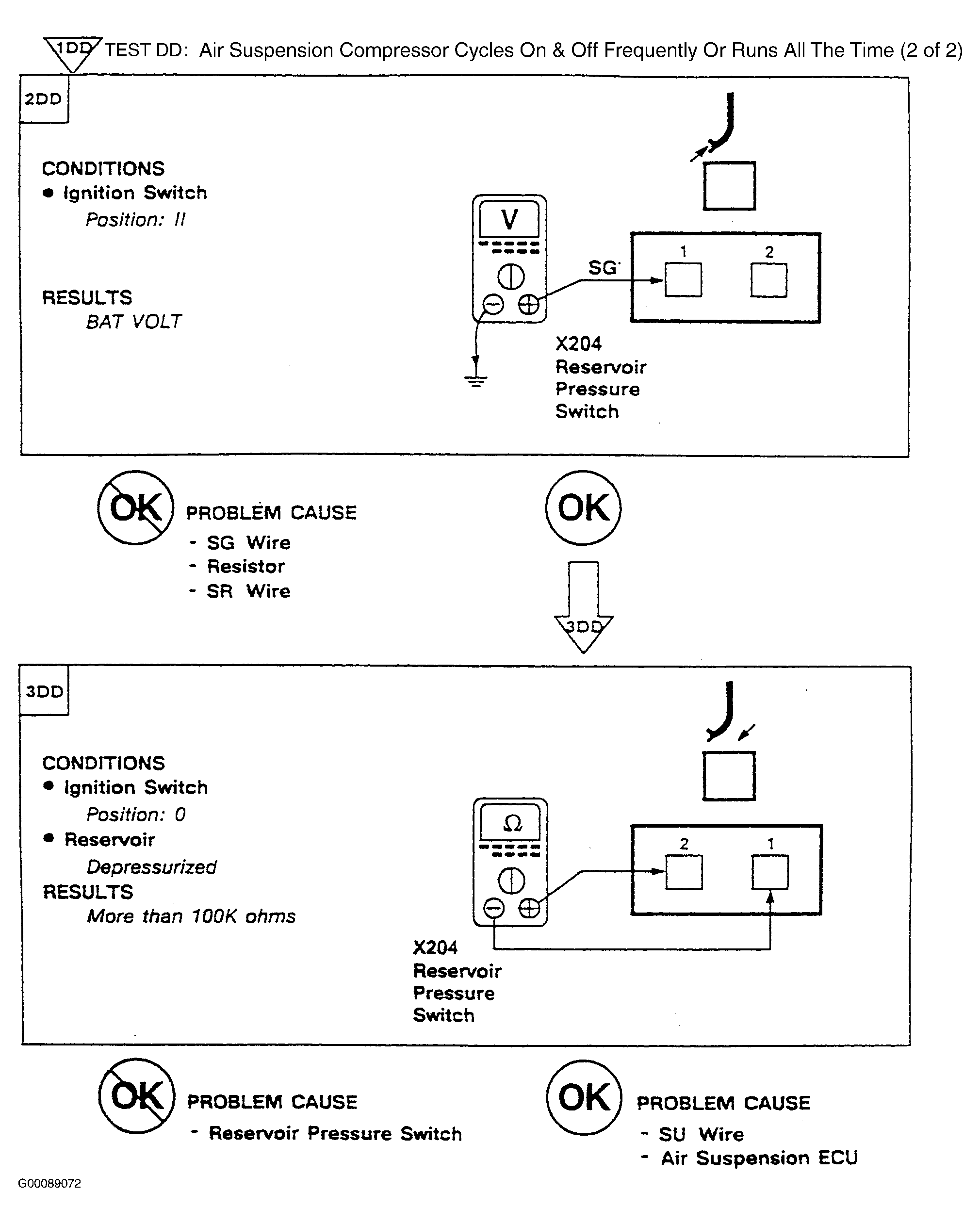

Fig 2: Test DD: Air Suspension Compressor Cycles On & Off Frequently Or Runs All The Time (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
