Test Cc: Handheld Tester Cannot Read Data/System Partially Operates

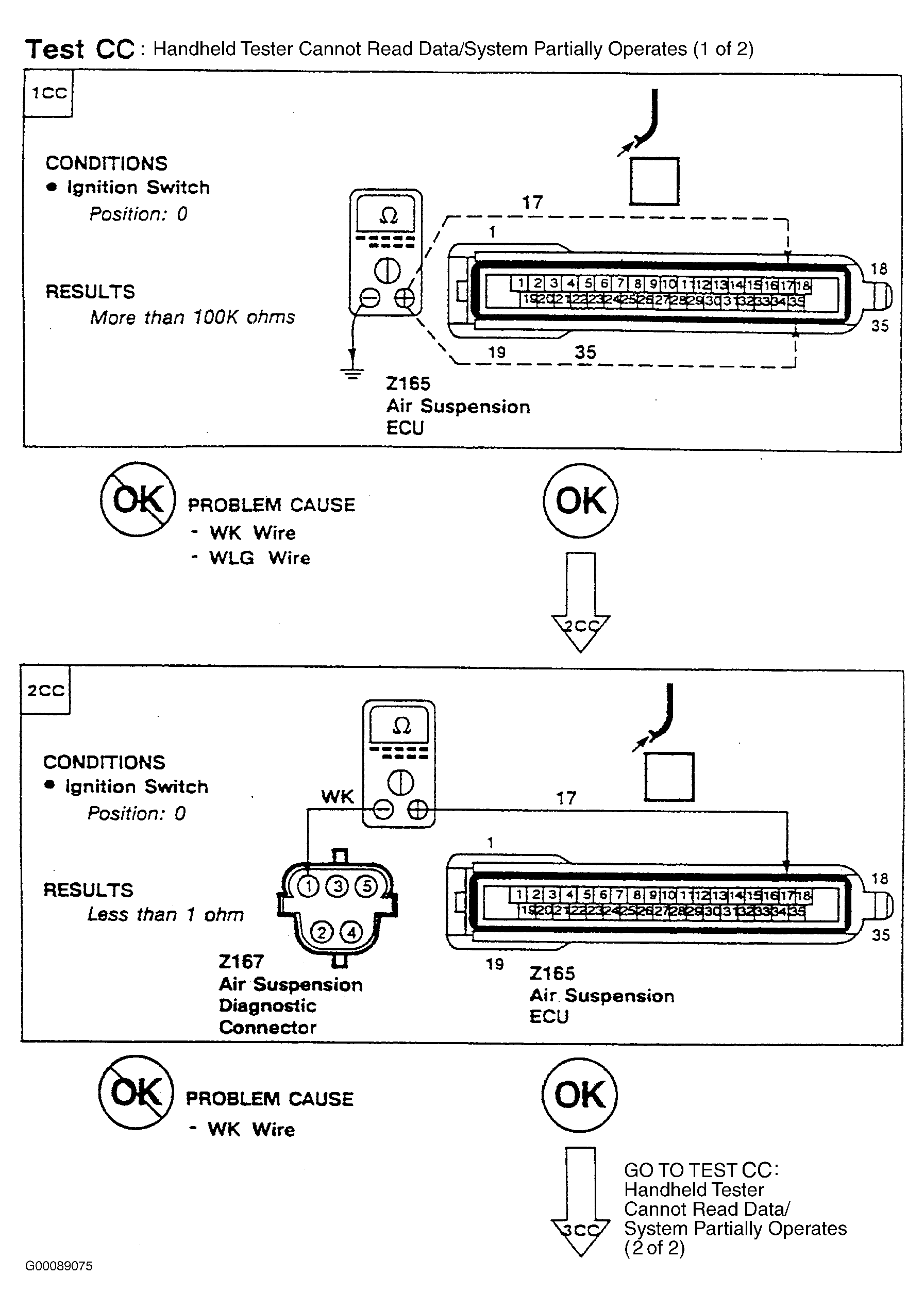

Fig 1: Test CC: Handheld Tester Cannot Read Data/System Partially Operates (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

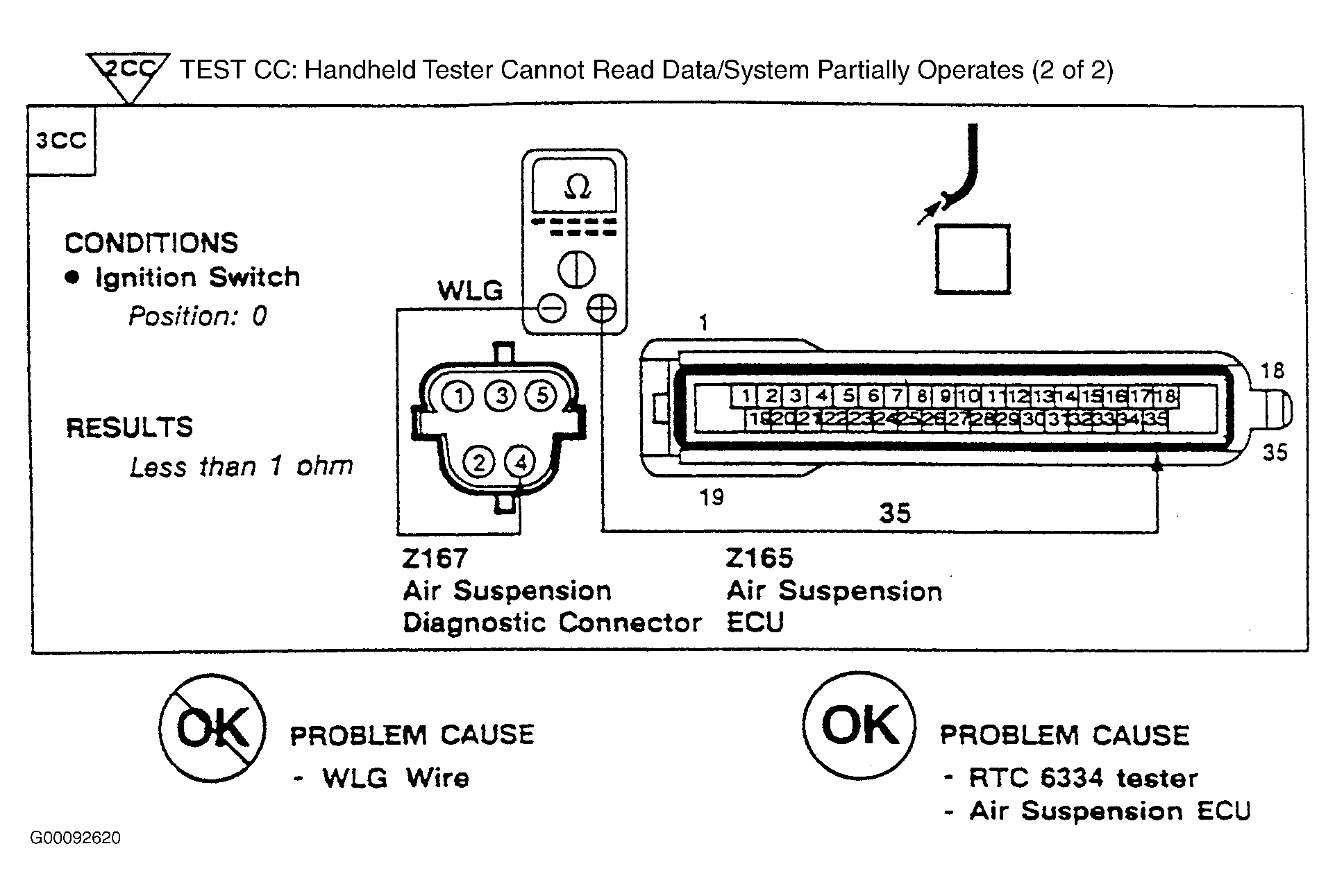

Fig 2: Test CC: Handheld Tester Cannot Read Data/System Partially Operates (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
