Test Aa: Air Suspension System Does Not Operate At All

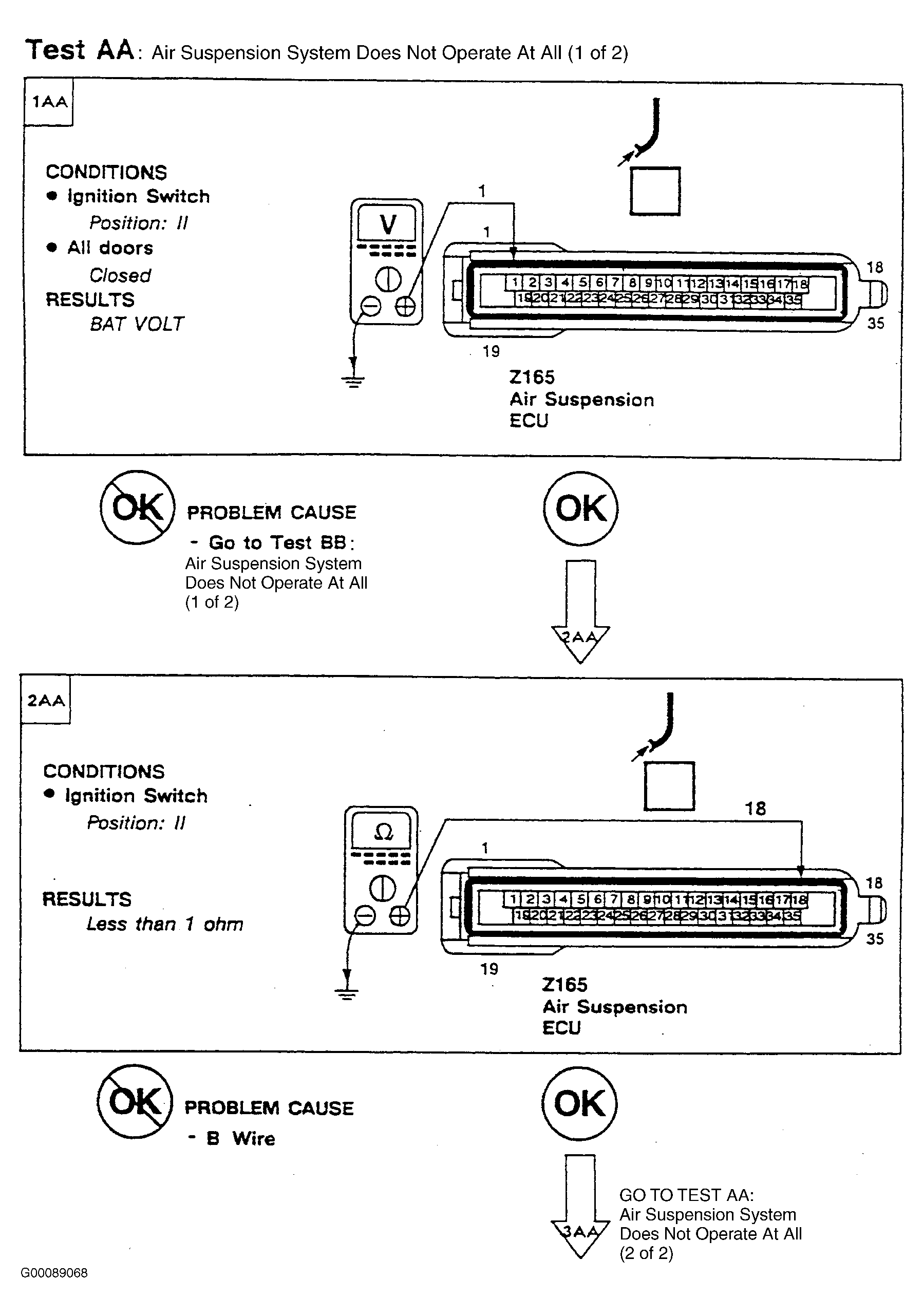

Fig 1: Test AA: Air Suspension System Does Not Operate At All (1 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.

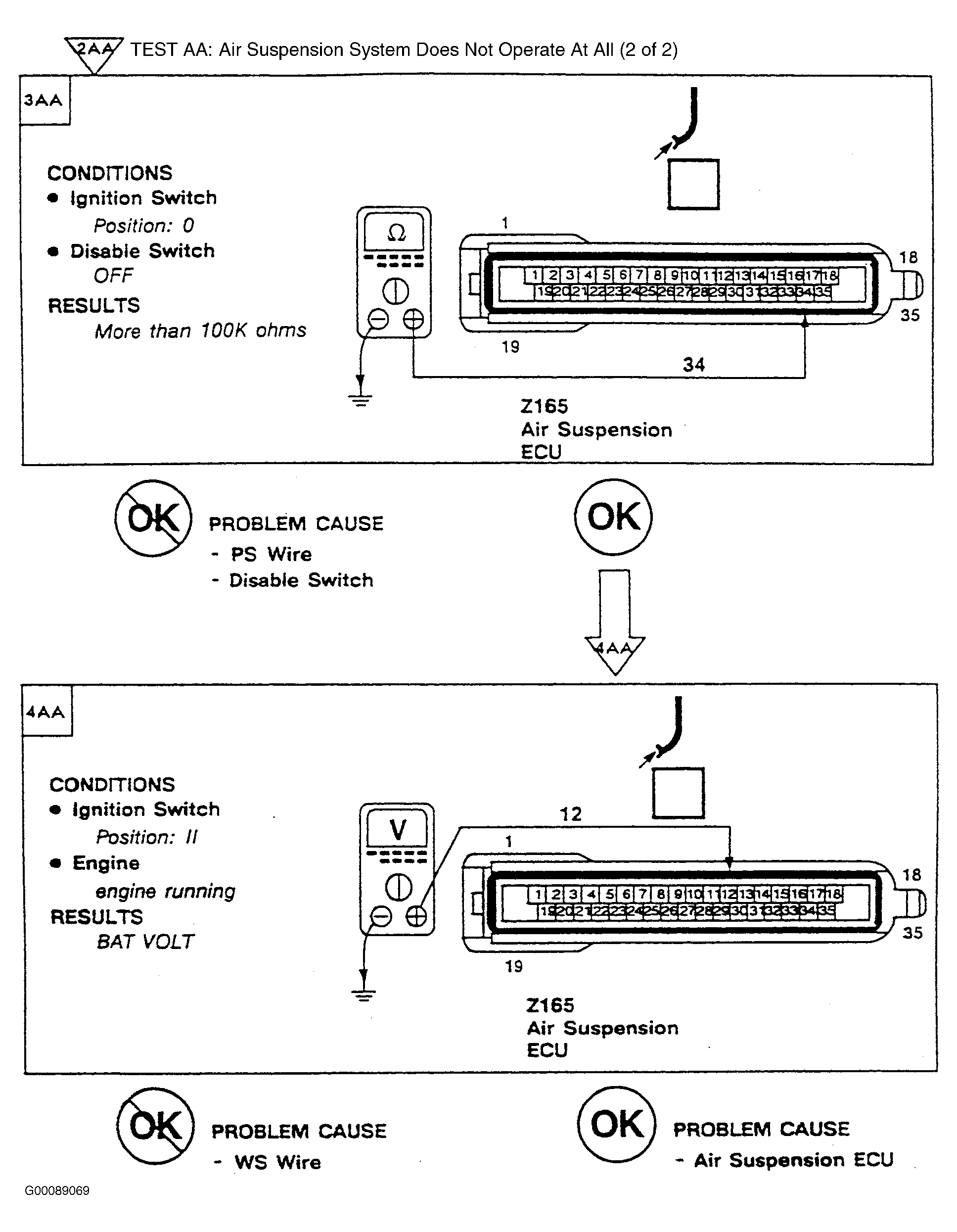

Fig 2: Test AA: Air Suspension System Does Not Operate At All (2 Of 2)

Courtesy of LAND ROVER NORTH AMERICA, INC.
