Air Reservoir Drain

NOTE: The reservoir is drained every 30,000 miles.
  1. Depressurize system. See DEPRESSURIZING & PRESSURIZING SYSTEM  .
  2. Clean area around reservoir drain plug.
  3. Partially open drain plug and allow residual air to escape.
  4. Remove drain plug. NO water should be present. See Fig 1 . If water is present, air dryer unit must be changed.
  5. Fit drain plug, checking sealing washer. Tighten to 70 N.m (52 ft. lbs.).
  6. Repressurize system. See DEPRESSURIZING & PRESSURIZING SYSTEM  .

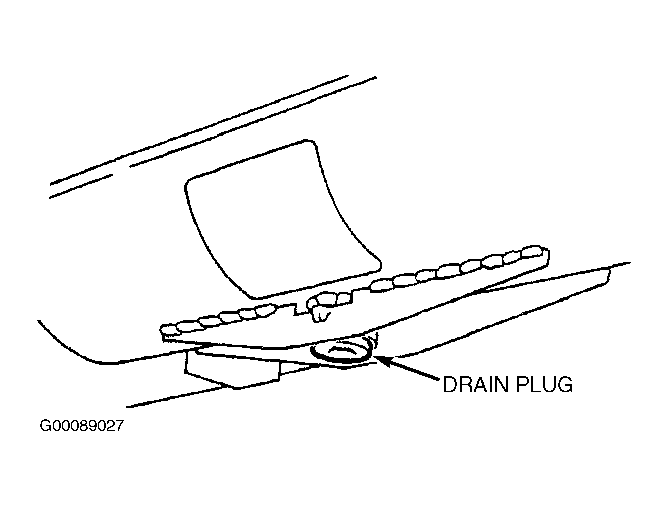

Fig 1: Locating Air Reservoir Drain Plug
G00089027Courtesy of LAND ROVER NORTH AMERICA, INC.
