Reservoir Pressure Switch: Removal

WARNING: Air suspension is pressurized up to 10 bar. Dirt or grease must not enter system. Wear hand, ear and eye safety standard protection when servicing system.

Depressurize system. See DEPRESSURIZING & PRESSURIZING SYSTEM under SERVICING.
Disconnect negative battery cable.
Clean around pressure switch with stiff brush and soapy water.
Disconnect pressure switch multi-plug. See Fig 1 .

CAUTION: Protect opening to avoid dirt getting inside.

Unscrew and remove pressure switch.

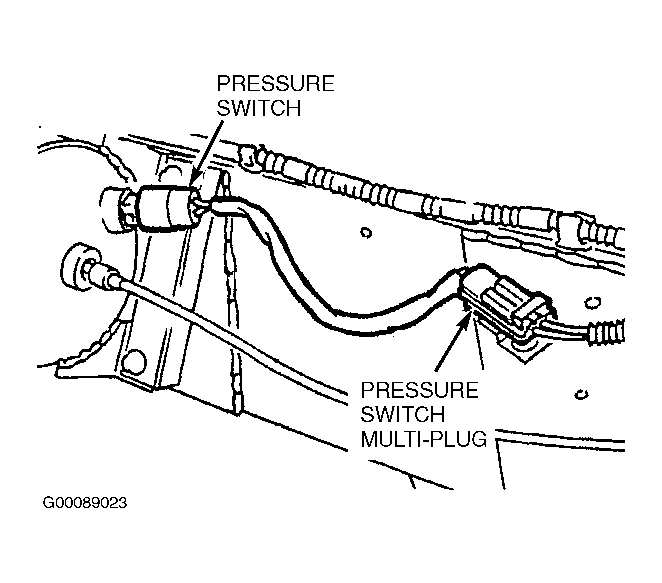

Fig 1: Removing Reservoir Pressure Switch

Courtesy of LAND ROVER NORTH AMERICA, INC.
