Rear Damper: Installation

  1. Install damper.
  2. Install top fixings and tighten to 82 N.m (60 ft. lbs.).

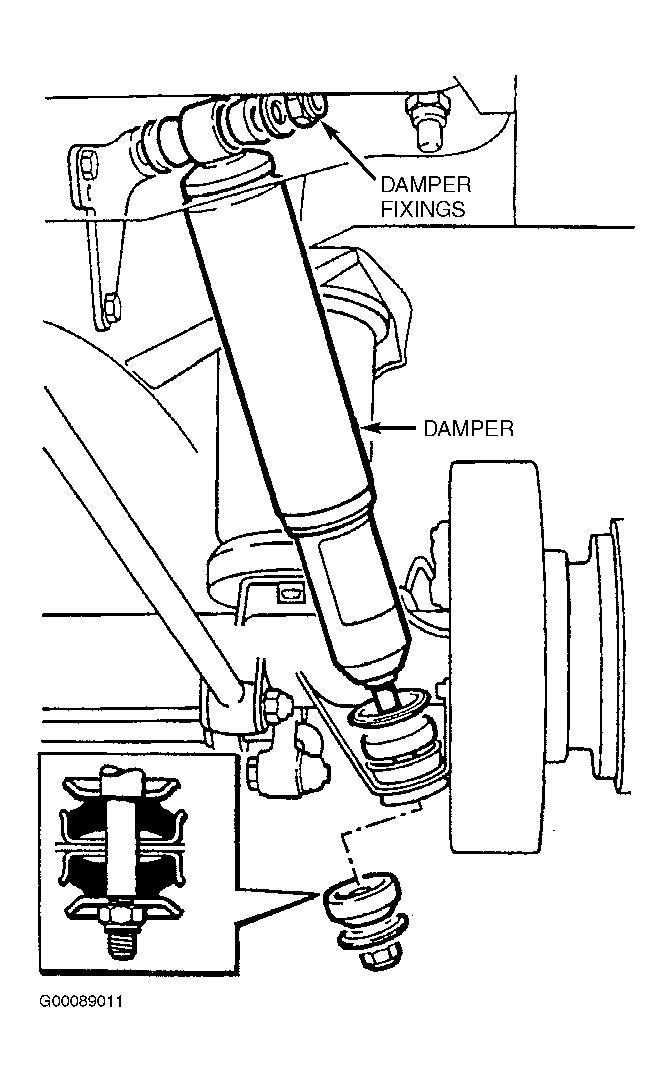

  3. Fit bottom fixings, ensure mounting rubbers are installed as shown in Figure , and tighten to 38 N.m (28 ft. lbs.).
  4. Reverse removal procedures  1 - 4 .
