Operating Switches & Warning Light Illumination: Removal

NOTE: Each switch contains a warning light bulb, and an illumination bulb.

1. Remove center dash panel. See appropriate INSTRUMENT PANEL article in ACCESSORIES & EQUIPMENT.
2. Depress locating tags of switch to remove switch. See Fig 1 .
3. Remove warning light bulb by turning counterclockwise and releasing from switch. See Fig 1 .

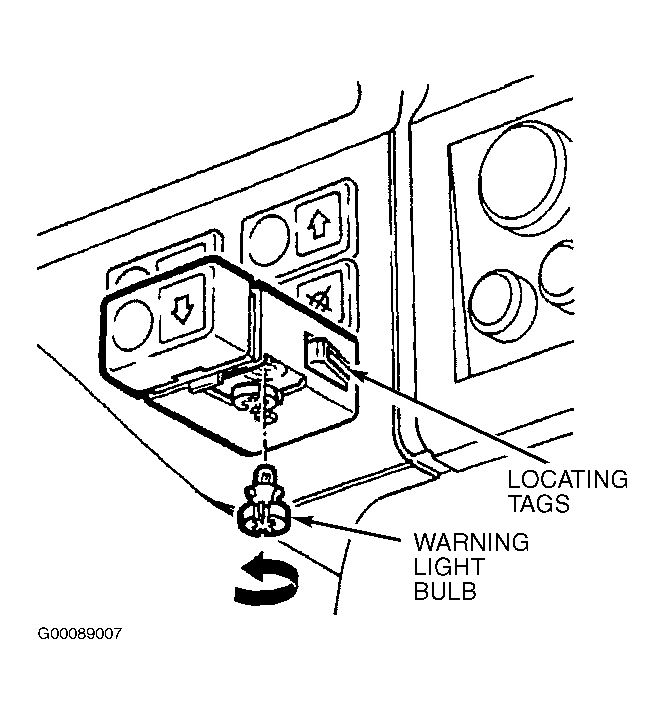

Fig 1: Removing Operating Switch & Warning Light Bulb

Courtesy of LAND ROVER NORTH AMERICA, INC.
