Front Damper: Installation

  1. Fit damper.

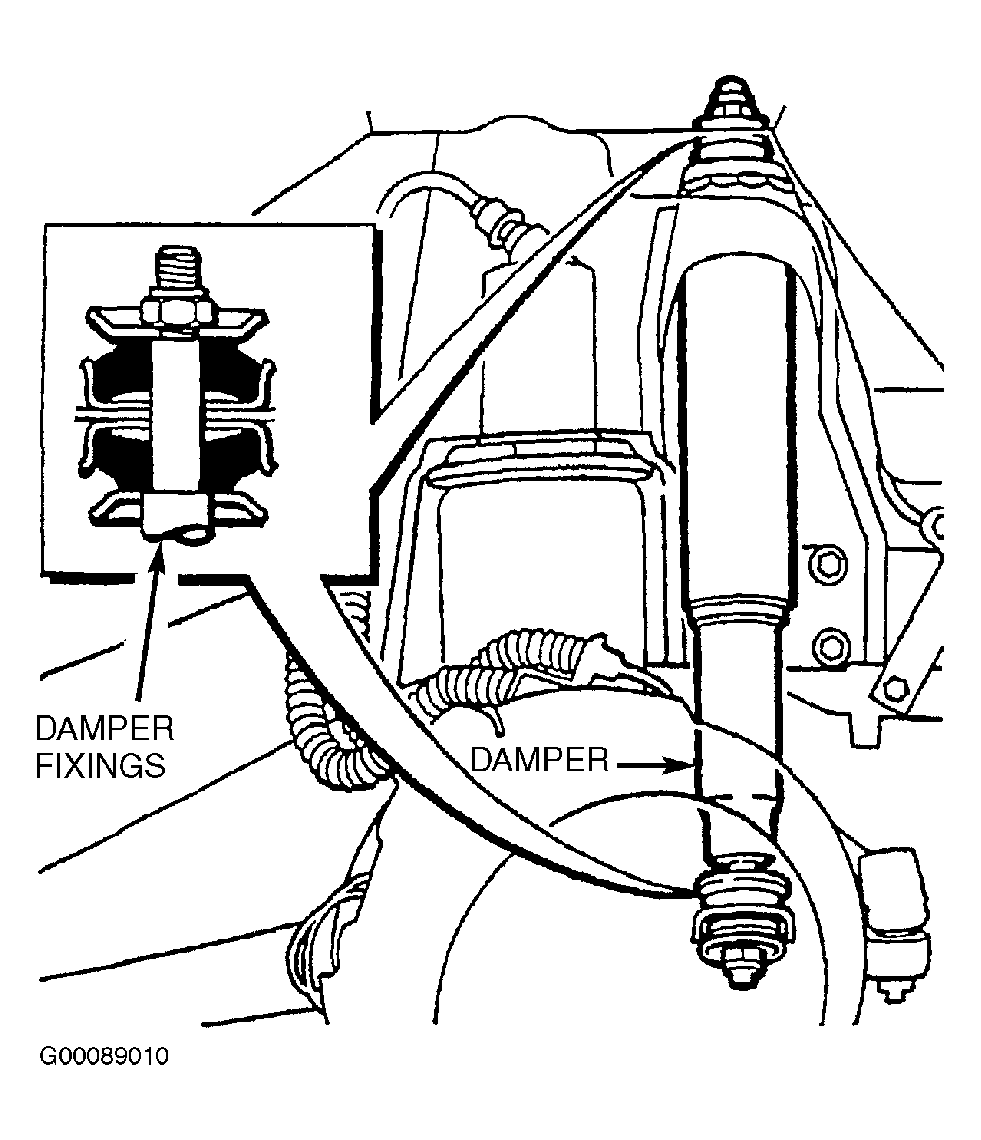

  2. Fit top and bottom fixings, ensuring mounting rubbers are fitted as shown. See Figure .
  3. Tighten fixings to 38 N.m (28 ft. lbs.).
  4. To complete installation, reverse removal procedure.
