Front Air Spring: Removal
WARNING:
Air suspension is pressurized up to 10 bar. Dirt or grease must not enter system. Wear hand, ear and eye safety standard protection when servicing system.
WARNING:
The air spring must be restricted by suspension loading, with dampers fitted before inflation. Failure to observe this warning could cause air spring failure, resulting in component damage or personal injury. DO NOT attempt to dismantle air spring.
- Depressurize system. Refer to DEPRESSURIZING & PRESSURIZING SYSTEM under SERVICING.
- Disconnect negative battery cable.
- Remove wheel.
- Support chassis on axle stands.
- Support front axle with jack.

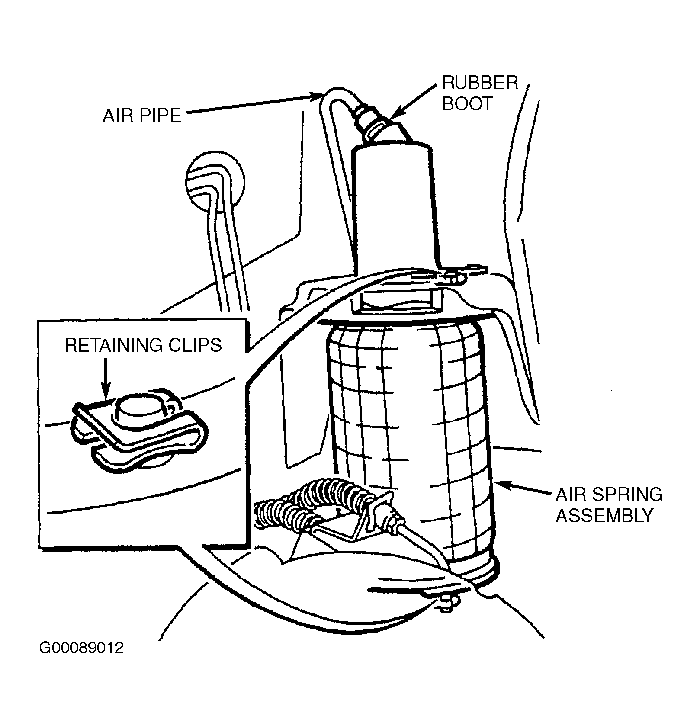

- Peel back rubber boot. See Fig 1 . Disconnect air pipe from air spring. Refer toAIR PIPE .
- Remove 4 retaining clips from upper and lower fixing.
- Remove air spring assembly.
