Bumper Stop: Removal

CAUTION: Air suspension system uses "progressive" bumper stops that must not be interchanged with those used on coil spring suspension.
  1. Remove fixings. See Fig 1 .
  2. Remove bumper stop assembly.

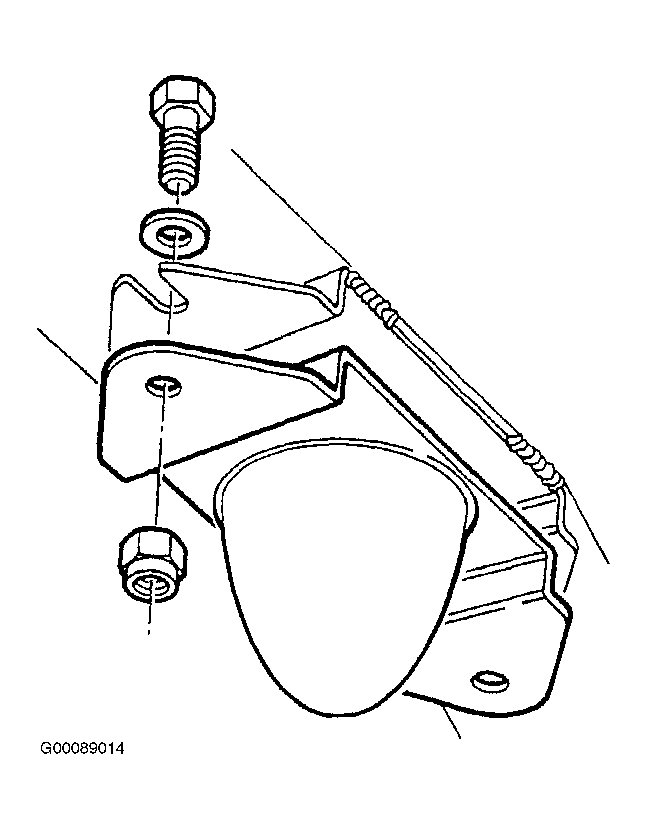

Fig 1: Removing & Installing Bumper Stop
G00089014Courtesy of LAND ROVER NORTH AMERICA, INC.
