Air Supply Unit: Removal

WARNING: Air suspension is pressurized up to 10 bar. Dirt or grease must not enter system. Wear hand, ear and eye safety standard protection when servicing system.
  1. Depressurize system. Refer to DEPRESSURIZING & PRESSURIZING SYSTEM  under SERVICING.
  2. Disconnect negative battery cable.
  3. Remove air supply unit side cover plate. See Fig 1 .
  4. Disconnect multi-plug.
  5. Disconnect compressor inlet pipe and seal all exposed ends. See Fig 2 .
  6. Support air supply unit. Remove 4 mounting bolts.
    7. CAUTION: DO NOT allow unit to hang on pipes or electrical leads.
  7. Remove air assembly top cover plate. See Fig 1 .
  8. Clean all components. Identify air pipe connections.
  9. Disconnect air pipe connections. See AIR PIPE  . Seal all exposed ends. Disconnect remaining multi-plug.
  10. Remove air pipes and wiring harness from assembly.
  11. Remove air supply unit from vehicle.

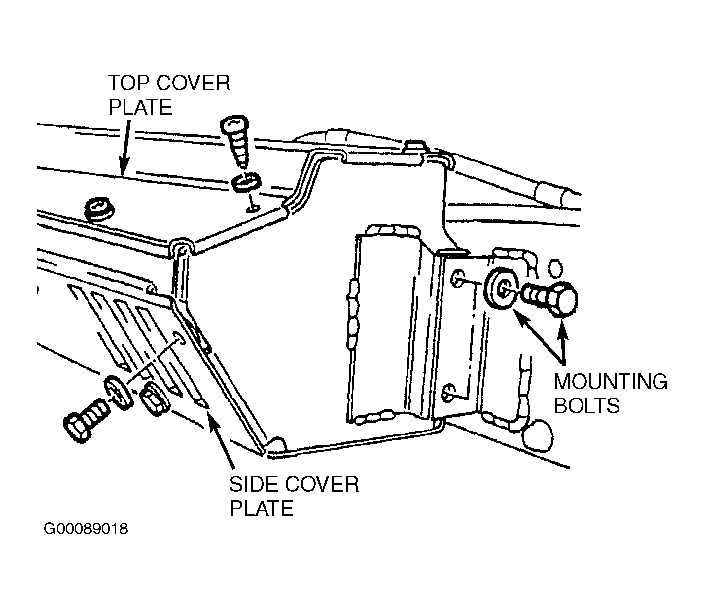

Fig 1: Removing Air Supply Unit
G00089018Courtesy of LAND ROVER NORTH AMERICA, INC.

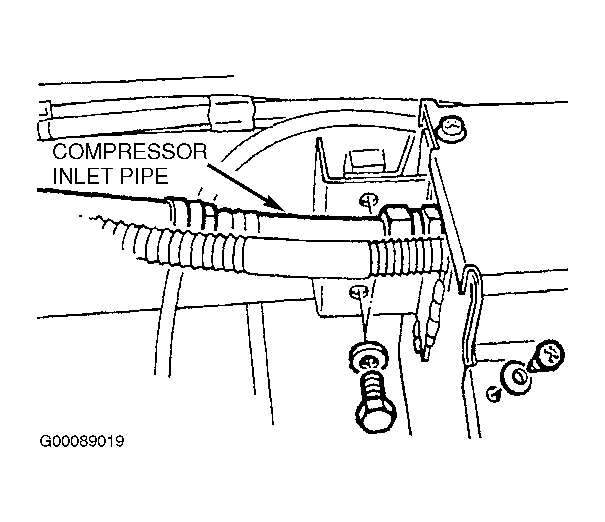

Fig 2: Identifying Compressor Inlet Pipe
G00089019Courtesy of LAND ROVER NORTH AMERICA, INC.
